XL4015 DC-DC Adjustable Voltage Stepper with Digital Display - Voltmeter

Brand
Robotistan
Product Code
20042
Kart İşlevi
Voltaj Regülatör Kartı
Bağlantı Noktası
Pin
Çalışma Gerilimi
1.25-36V/DC
Çalışma Akımı
5A
Fiyat
: 115.51 TL + VAT
KDV Dahil Fiyat
: 138.62 TL

XL4015 DC-DC Adjustable Voltage Stepper with Digital Display - Voltmeter

The XL4015 Digital Display DC-DC Adjustable Voltage Stepper features high efficiency and low ripple. This voltage reducer and voltmeter is a DC-DC module that uses a 5A load and operates at a fixed frequency of 180 KHz. It is a module that can gradually adjust the input voltage and output voltage and displays it on its digital screen. The input voltage is 4-38V and the output voltage is obtained by reducing the voltage between 1.25V-36V thanks to the trimpot on the board. Also, this product has overheat protection and short circuit protection feature.

Click to view multimeter models.

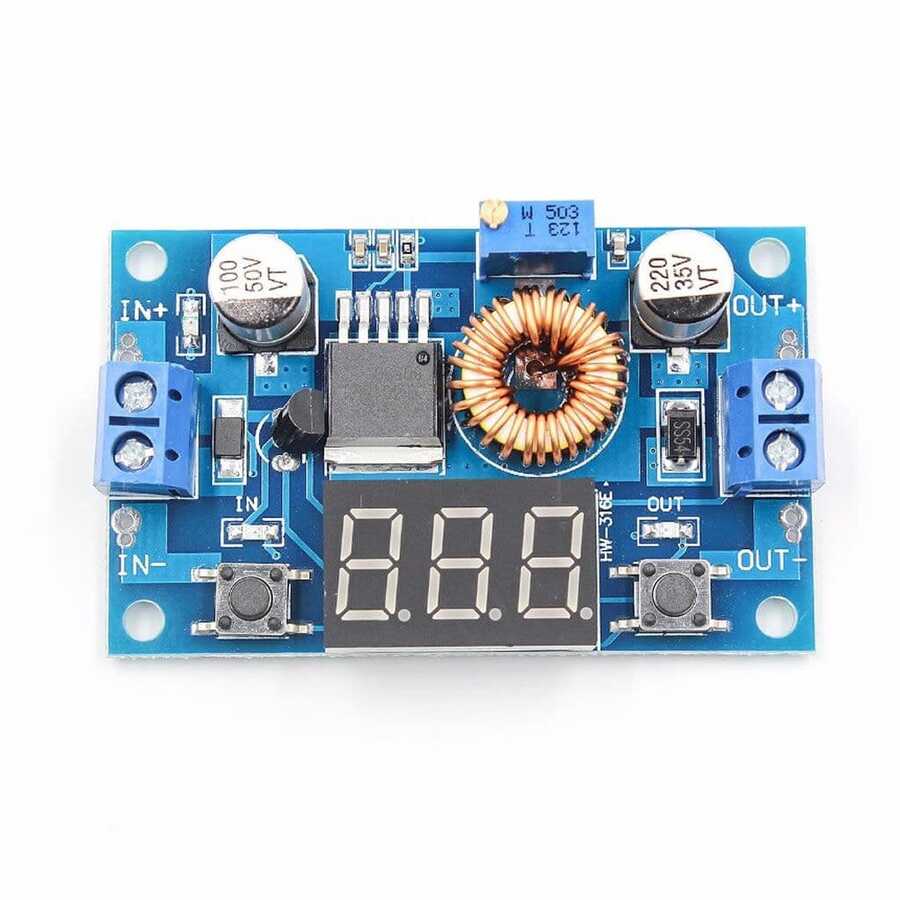

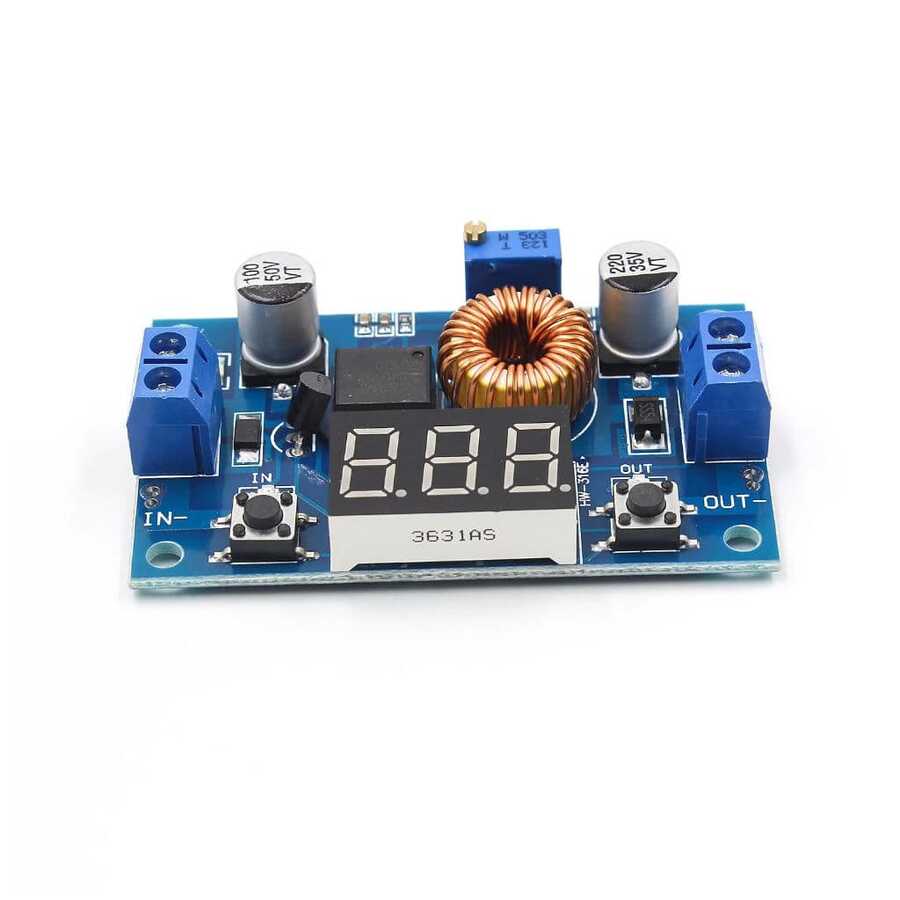

In applications to be made with this product, the input voltage must always be higher than the output voltage. The led on the screen shows the current measurement of the input or output voltage. “IN+” and “IN-” are voltage input pins while “OUT+” and “OUT-” are voltage output pins. “IN+” means positive supply input, “IN-” means ground, “OUT+” means positive output voltage and “OUT-” means ground output on the board. There is a blue trimpot on the module. You can adjust the voltage value with this trimpot. The left button is used to turn the voltmeter on and off. The right button serves as a selection for the voltmeter. As the button is pressed, the input voltage or output voltage value is displayed on the voltmeter.

4 (16) (1).jpg (97 KB)

XL4015 Digital Display DC-DC Adjustable Voltmeter Technical Specifications:

  • Model: XL4015
  • Input Voltage: 4-38V/DC
  • Output Voltage: 1.25-36V/DC
  • Output Current: 5A (Max.)
  • Output Power: 75W
  • Working Frequency: 180KHz
  • Size Range: 4-40V/DC
  • Conversion Efficiency: Up to 96%
  • Voltmeter Error Accuracy: ±0.05V
  • Input Reverse Polarity Protection: No
  • Display: Digital - Color
  • Size: 60x37x14mm

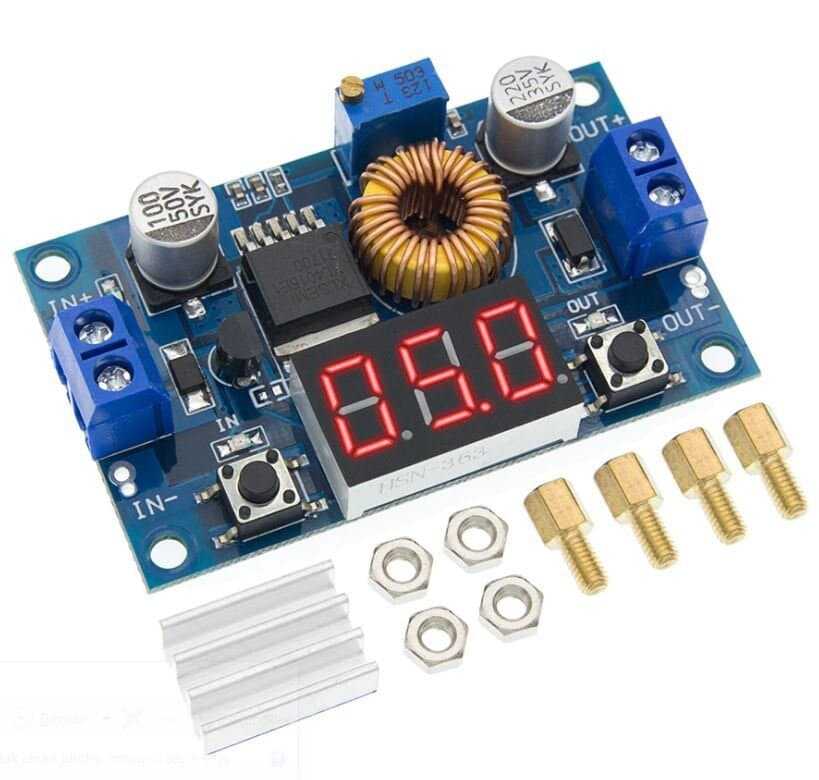

Package Included:

  • 1 x XL4015 Digital Voltmeter Step-down Power Module
  • 4 x Nuts
  • 4 x 3mm Spacer
  • 1 x Mini Aluminum Heatsinku
