WaveShare 3.5 inch Resistive Touch LCD - 480x320 (B)

Product Code
:
18297
Brand / Origin
:
WaveShare
Quantity
:
1
Without Vat
:
138.20 TL
Quantity:

-

+

Same Day Shipping
If you purchase before 3pm, your products will ship at the same day. Except saturday and sunday
Add to Favorites
You can add this product on your list and check it later.
Add Comment
Featured Campaigns Related the Product

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Features
  • Payment Options
  • Comments (0)
  • Recommend
  • Images
  • Suggestion Box

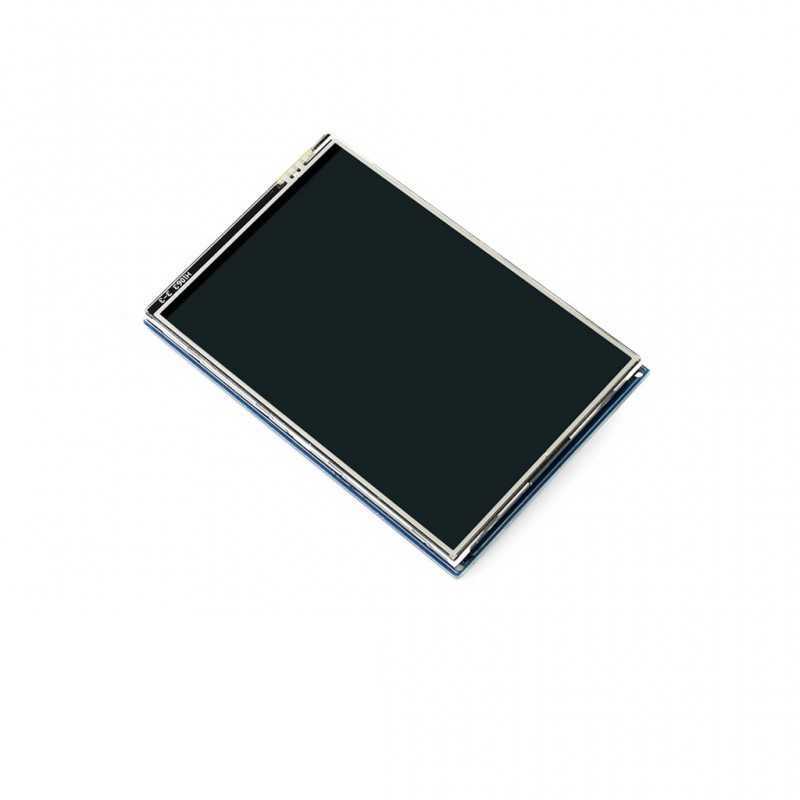

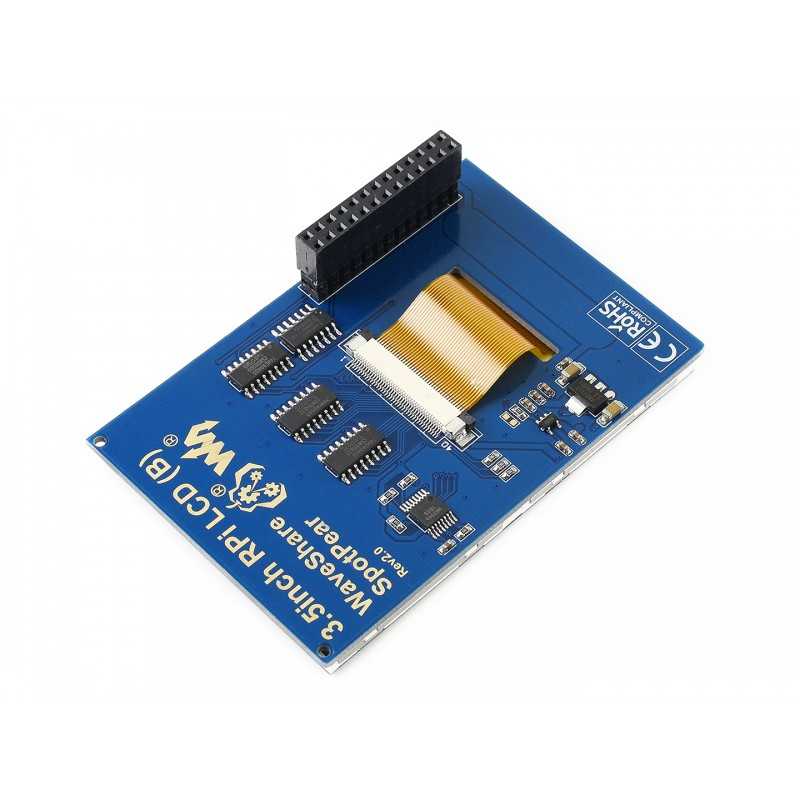

  • 3.5 inch Touch Screen IPS LCD Designed for Raspberry Pi.

    Features:

    • 480x320 hardware resolution
    • Resistive touch control

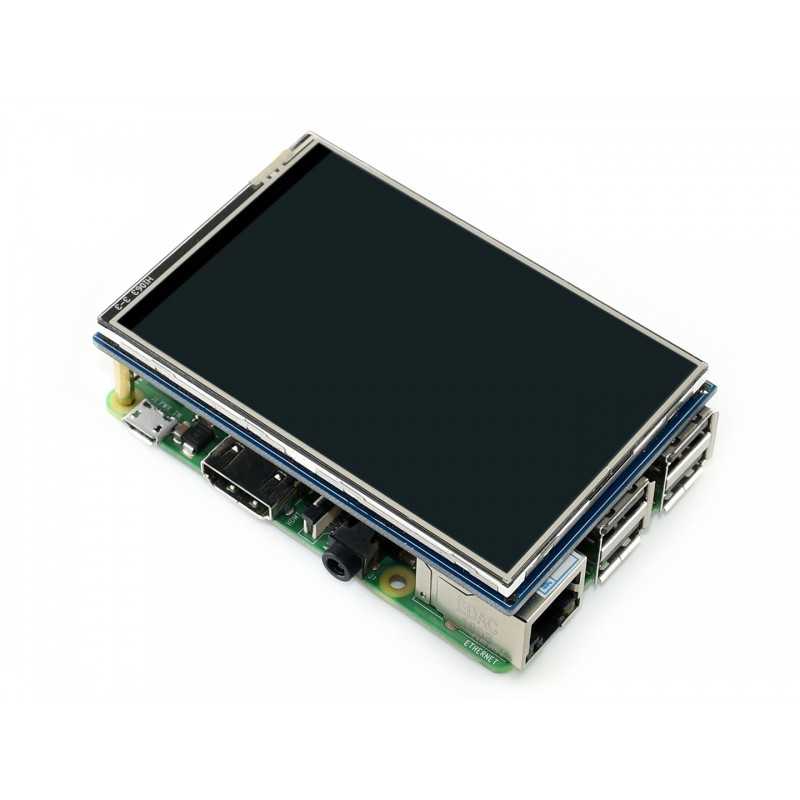

    • Supports any revision of Raspberry Pi (directly-pluggable)
    • Drivers provided (works with your own Raspbian/Ubuntu/Kali)
    • Supports FBCP software driver as well, allows to config software resolution and set up dual-display
    • IPS technology, high quality and perfect displaying from very wide viewing angle

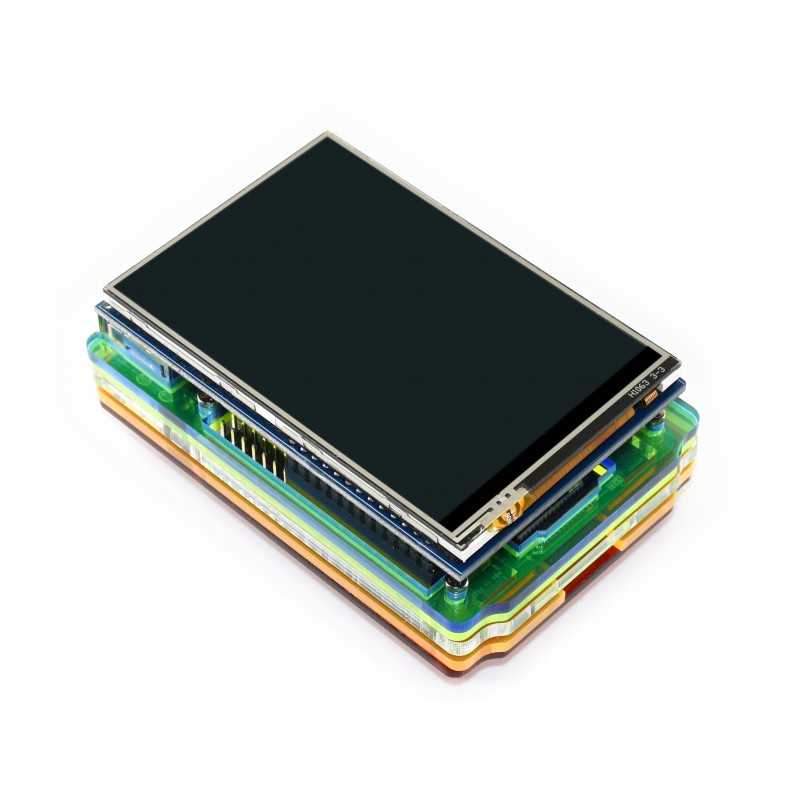

    • Size perfectly fits the Pi (Raspberry Pi B+/2B/3B/3B+)
    • High quality immersion gold surface plating
    • Combined with the Raspberry Pi, allows you to:

    -Take photos by touching (up to 17 camera modes)

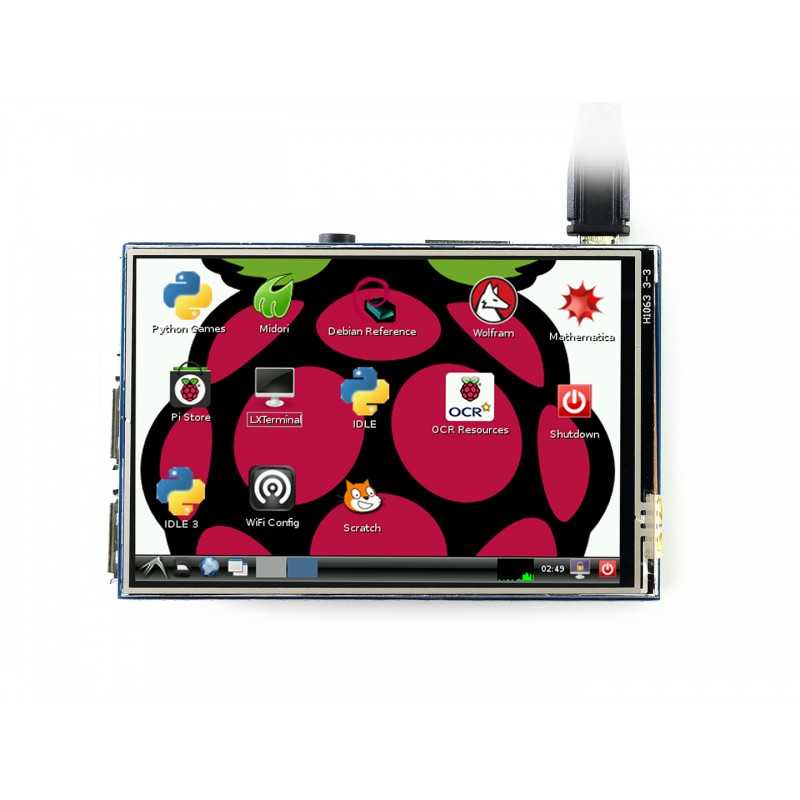

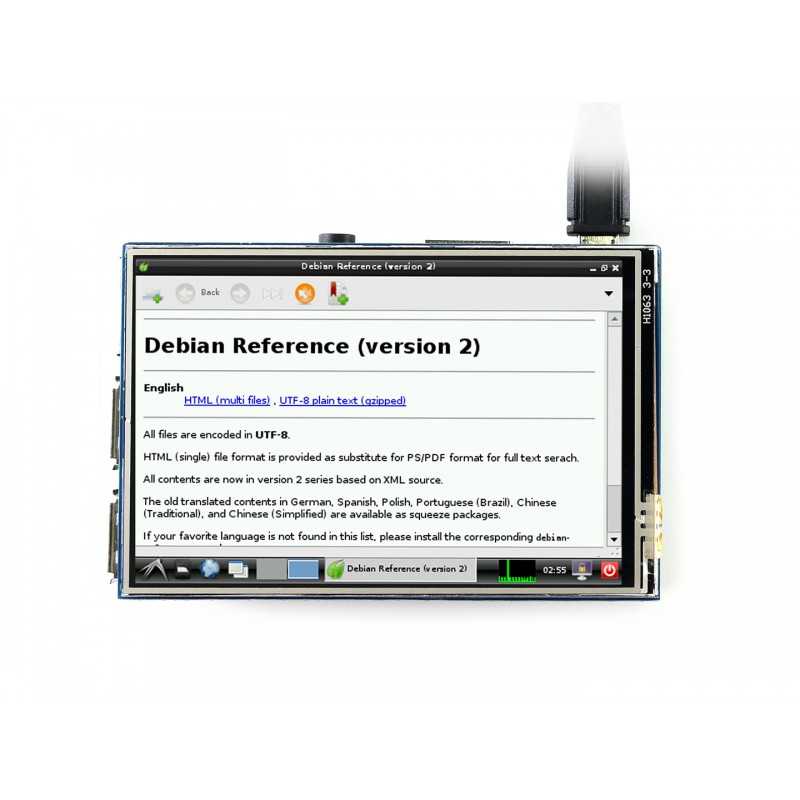

    -Use software keyboard (system interaction without keyboard/mouse)



    NOTE: WaveShare 3,5'' Raspberry Pi Touch LCD Display (Primary Display) and this product are hardware compatible with each other (uses different driver), and can be mutually substituted in most cases. This is the IPS version with better displaying.

    Techincal Specs:

    • LCD type: IPS
    • LCD interface: SPI
    • Touch screen type: Resistive
    • Touch screen controller: XPT2046
    • Colours: 65536
    • Backlight: LED
    • Resolution: 320x480 pixels
    • Aspect ratio: 8:5

    Interface:

    Pin No.

    Symbol

    Description

    1, 17

    3.3V

    Power positive (3.3V power input)

    2, 4

    5V

    Power positive (5V power input)

    3, 5, 7, 8, 10, 12, 13, 15, 16

    NC

    NC

    6, 9, 14, 20, 25

    GND

    Ground

    11

    TP_IRQ

    Touch Panel interrupt, low level while the Touch Panel detects touching

    18

    LCD_RS

    Instruction/Data Register selection

    19

    LCD_SI / TP_SI

    SPI data input of LCD/Touch Panel

    21

    TP_SO

    SPI data output of Touch Panel

    22

    RST

    Reset

    23

    LCD_SCK / TP_SCK

    SPI clock of LCD/Touch Panel

    24

    LCD_CS

    LCD chip selection, low active

    26

    TP_CS

    Touch Panel chip selection, low active

    Dimensions:

    Documents and Useful Links:

      Features
      Size
      :
      3.5 - 5.0 inches
