  • This is a 1.3" size OLED screen module. You can get high contrast images woth no back light thanks to OLED technology. This module supports SPI/I2C communication interfaces.

    Features:

    • Driver chip: SH1106
    • Interface: 3-wire SPI, 4-wire SPI, I2C
    • Resolution: 128x64 pixels
    • Display size: 1.3" (~3.3 cm)
    • Colour: Blue
    • Visible angle: Greater than 160°
    • Dimensions 40.50mm x 37.50mm
    • Operating temperature: -30~70 °C
    • Storage temperature: -30~80 °C


    Interface:

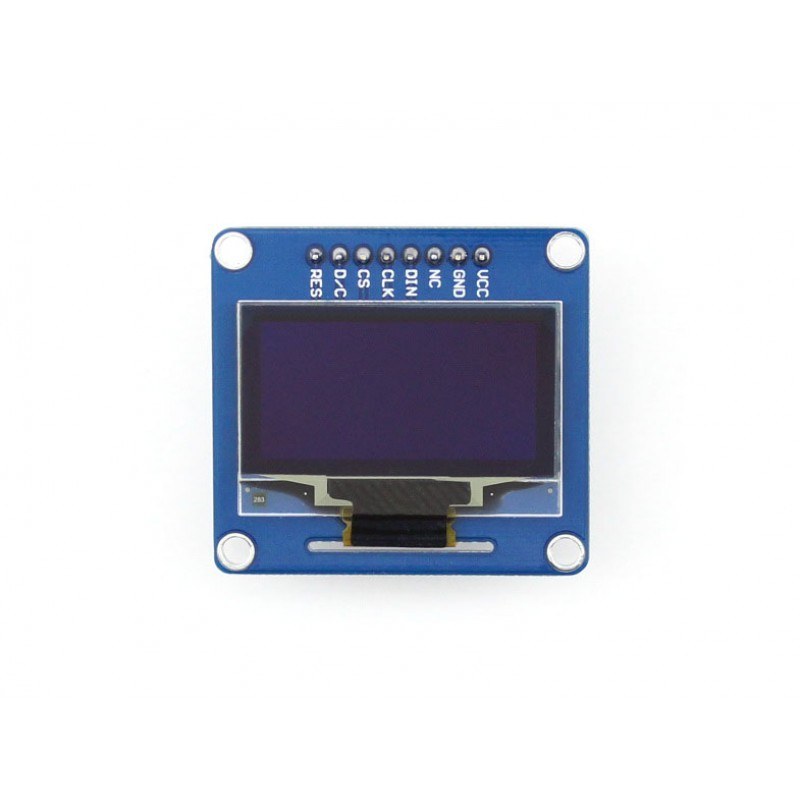

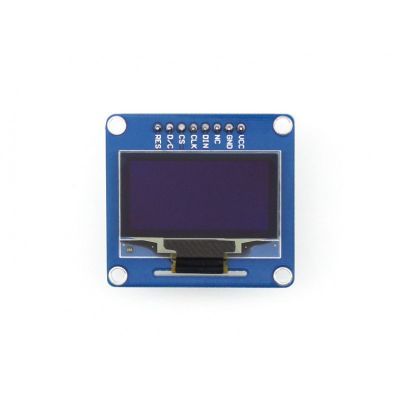

    PIN NO. SYMBOL DESCRIPTION
    1 VCC Power positive (3.3~5V power input)
    2 GND Ground
    3 NC NC
    4 DIN Data input
    5 CLK Clock signal input
    6 CS Chip selection, low active
    7 D/C Command signal, low level for command, high level for data
    8 RES Reset signal, low active


    For demo codes, schematic, datasheets etc. you can visit the wiki page of the product by clicking here.
