Key Parameters:

DRIVER CHIP SH1106
INTERFACE 3-wire SPI, 4-wire SPI, I2C
RESOLUTION 128*64
DISPLAY SIZE 1.3inch
COLORS Blue
VISIBLE ANGLE >160°
OPERATING TEMP. (℃) -30~70
STORAGE TEMP. (℃) -30~80
OPERATING VOLTAGE 3.3V / 5V

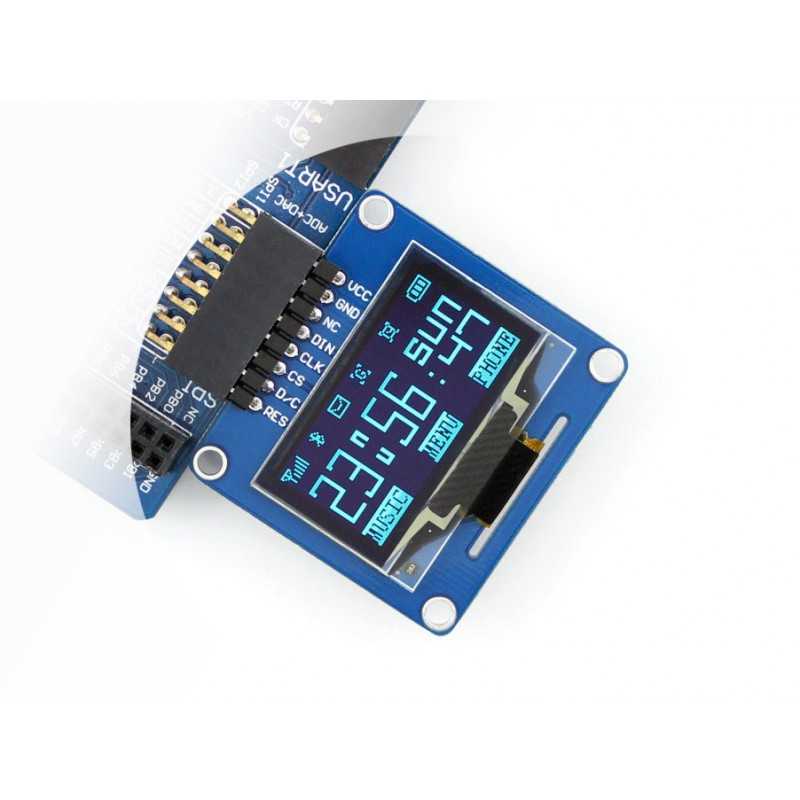

APPLICABILITY Hardware platforms such as Raspberry Pi/Jetson Nano/Arduino/STM32

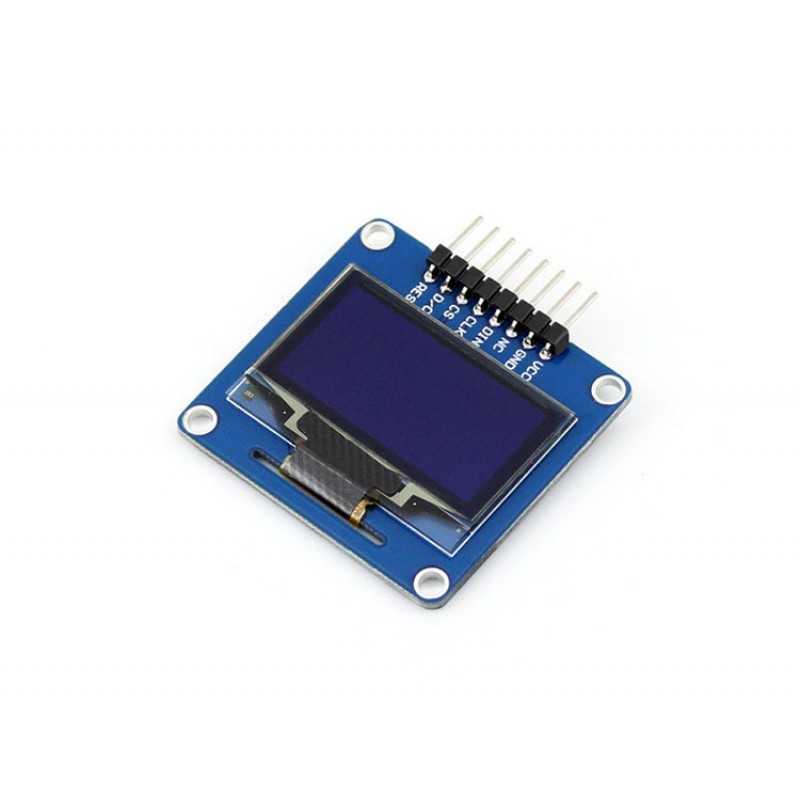

Interface:

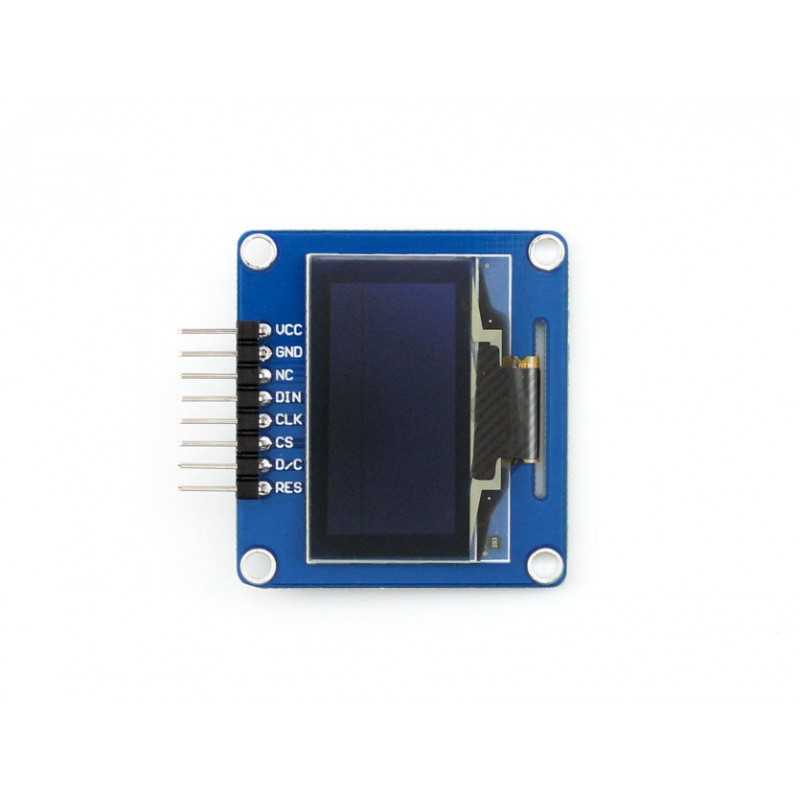

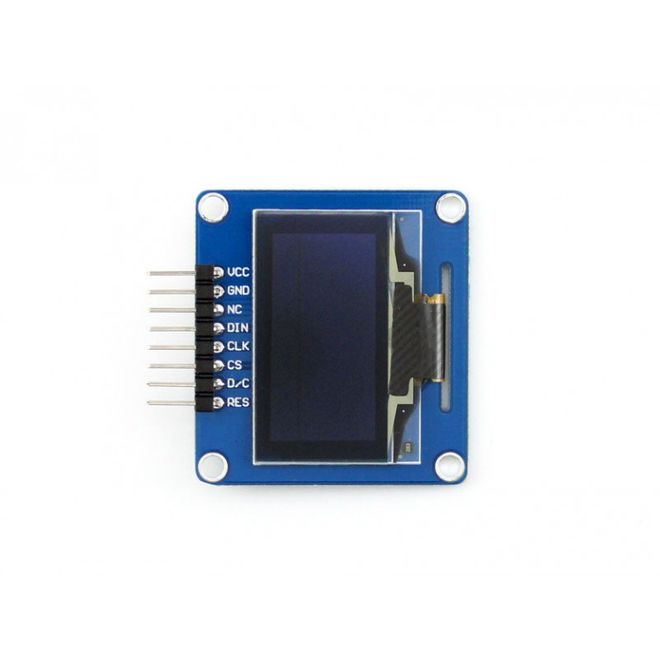

PIN NO. SYMBOL DESCRIPTION
1 VCC Power positive (3.3~5V power input)
2 GND Ground
3 NC NC
4 DIN Data input
5 CLK Clock signal input
6 CS Chip selection, low active
7 D/C Command signal, low level for command, high level for data
8 RES Reset signal, low active

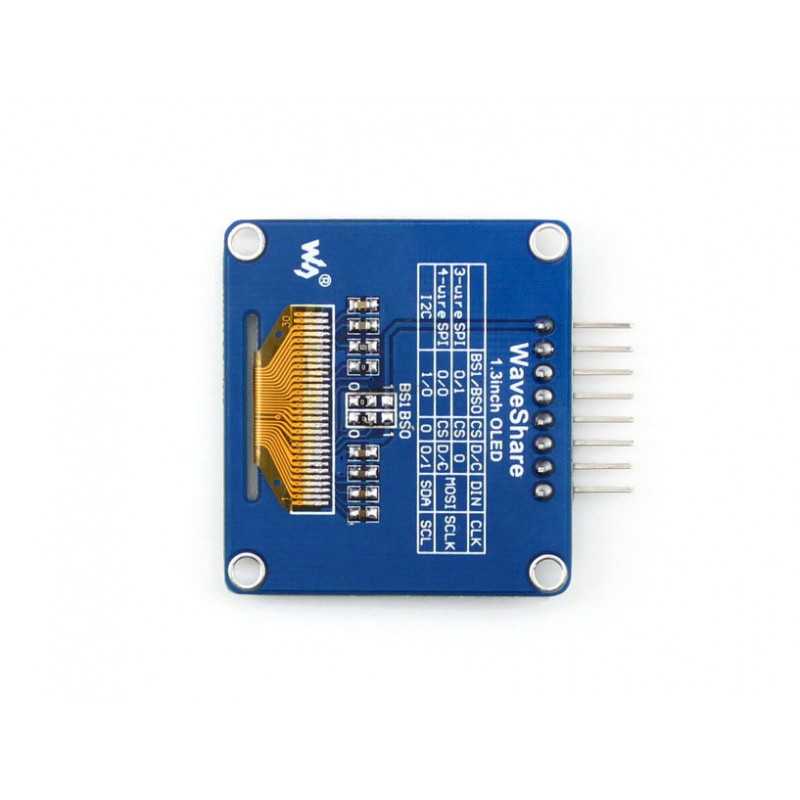

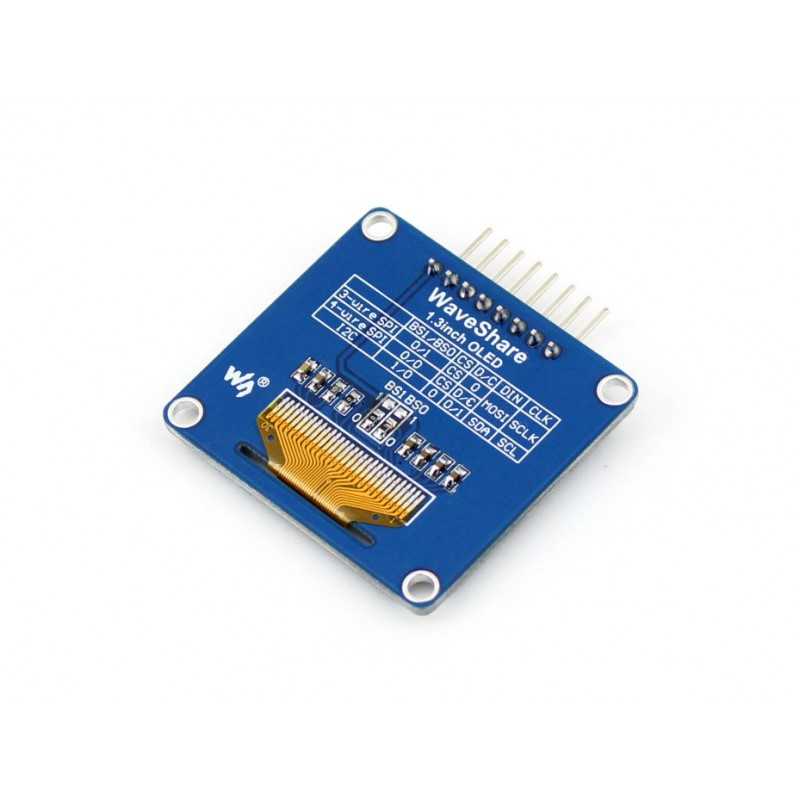

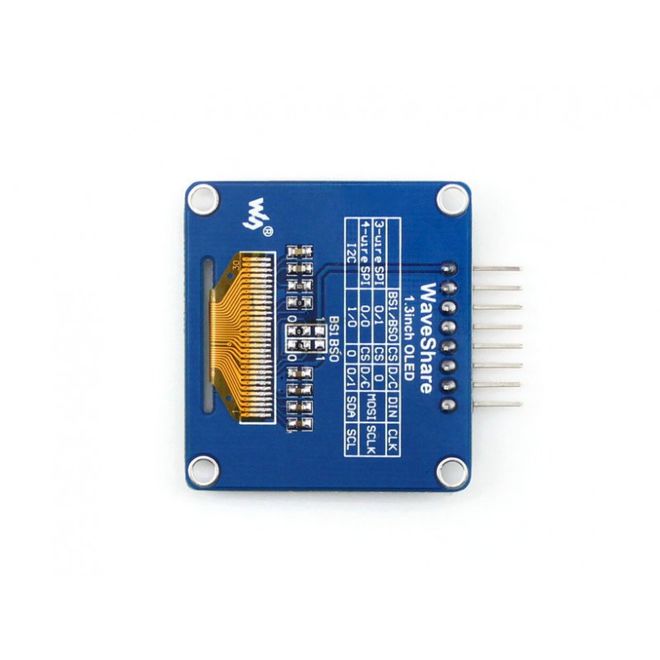

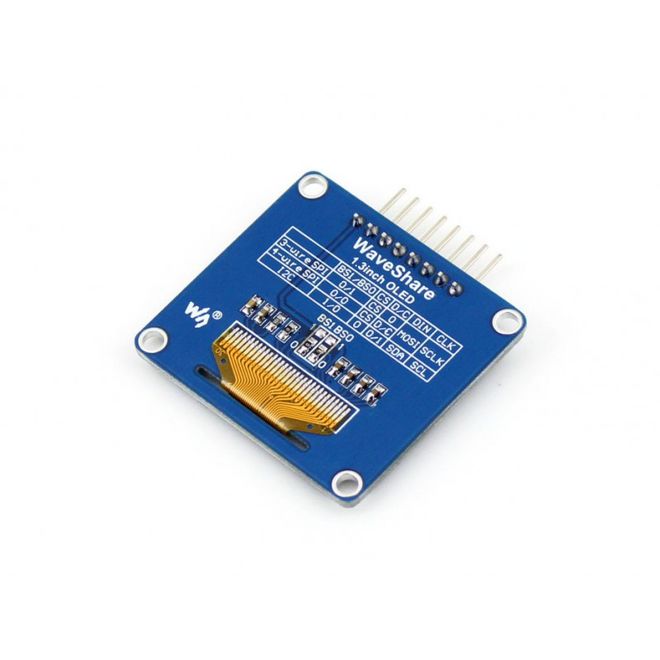

Hardware Config:

MODE/INTERFACE BS0/BS1 DIN SCK
3-wire SPI 1/0 MOSI SCLK
4-wire SPI 0/0
I2C 0/1 SDA SCL

Ordering Info:

The 1.3inch OLED provides 2 options for the onboard pinheader:

  • 1.3inch OLED (A): curved/horizontal pinheader
  • 1.3inch OLED (B): straight/vertical pinheader

Downloads:

Development resources: demo codes, schematic, datasheets, etc.
Wiki

Dimension:

Features
Ekran Çeşidi
OLED
18315
WaveShare 1.3 inch OLED Display - 128x64 (A)
WaveShare 1.3 inch OLED Display - 128x64 (A)
:
286.23 TL + VAT
:
343.48 TL
