The EMG detector is a sensor module used to read the electrical signals generated by muscles and nerves by connecting to various points on the human body with Arduino® boards and similar microcontroller systems.
The sensor, which provides a 1.5V signal output in the idle state, rises to a voltage level of 3.3V with muscle contraction. The sensor output is in the form of an analog voltage output. In this way, it can be used together with 5V and 3.3V systems.

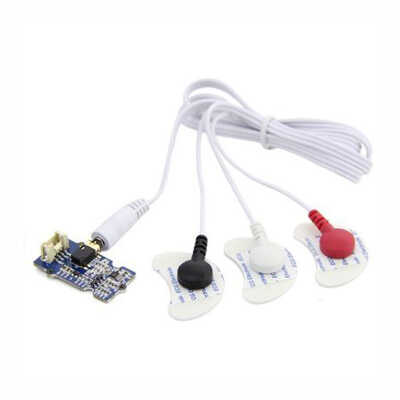

EMG Sensor - Nerve and Muscle Motion Measurement Module Package Contents:

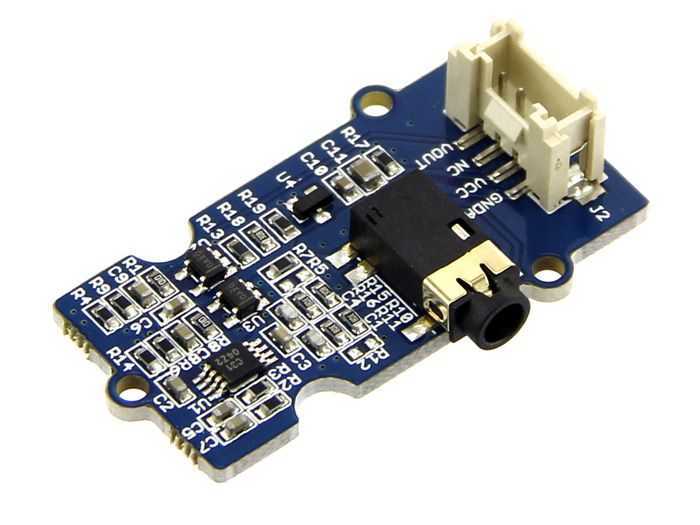

- Grove board to which the electrodes will be connected

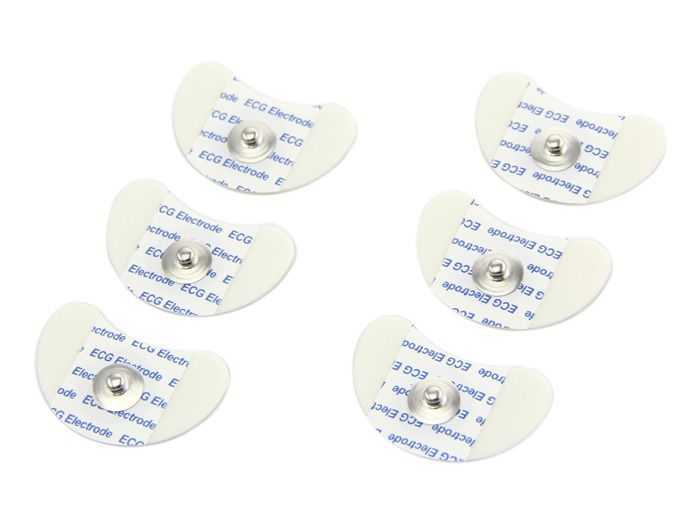

- 6 single-surface electrodes
- Grove connection cable (Standard cables and connectors can also be used.)

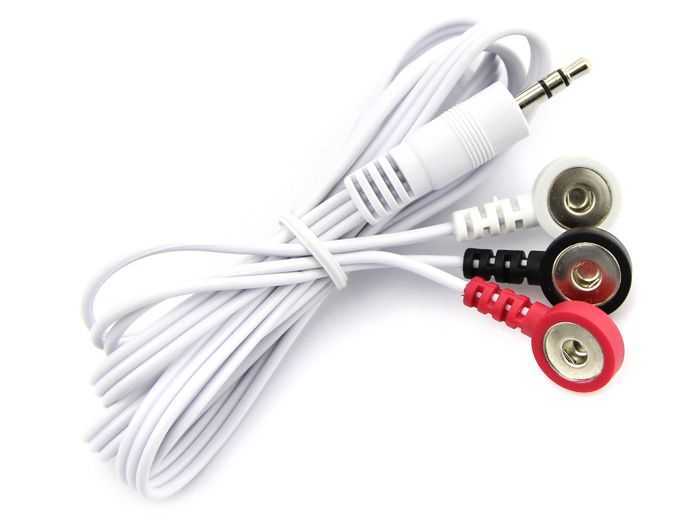

- 100cm electrode and board interconnection cable
EMG Sensor - Nerve and Muscle Motion Measurement Module Features:
- Compatible with Arduino® boards and different microcontroller systems
- 6 single-surface electrodes
- Analog voltage output
- Input Voltage: 3.3-5V
- 100cm electrode cable
Documents:
EN
