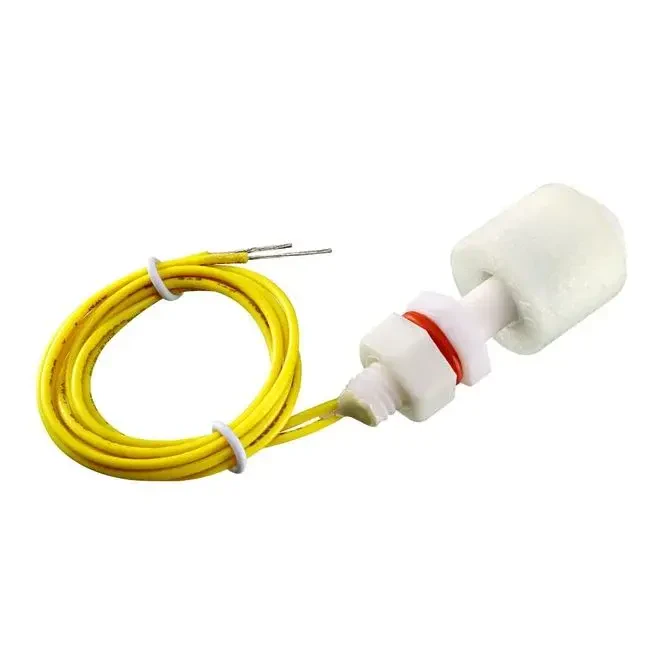

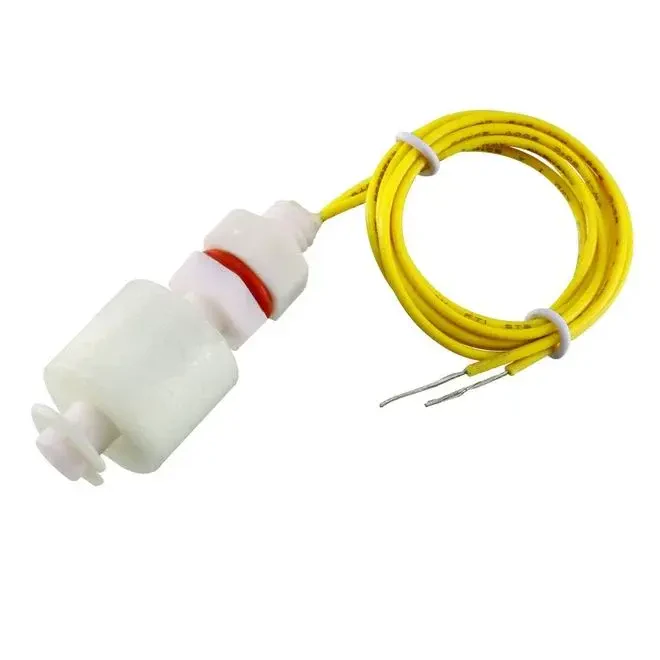

Water Level Switch - Water Level Switch

Product Code
:
13070
Brand / Origin
:
Robotistan
Quantity
:
0
Without Vat
:
40.15 TL
Same Day Shipping
Orders placed until 5:00 on weekdays and 10:30 on Saturday are shipped the same day.
Add to Favorites
Click here to add this product to your list and review it later.
Technical Service
We are always with you with our experienced staff and advanced support services.
Refund Guarantee
We carry out the process without upsetting you with a 14-day return guarantee.
Add Comment
  • Features
  • Payment Options
  • Comments (0)
  • Recommend
  • Images
  • Suggestion Box
  • This sensor can be used for understand that the level of water has reached a limit value by adding the sensor to a water tank. This product can be used with lots of microcontrollers such as Arduino and similars. You can give a alarm output, write to indicator or give a move to other devices.

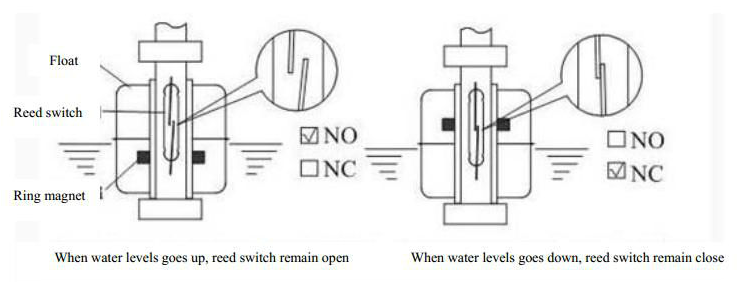

    The magnet in the float which is under the nuoyancy of water is in the interaction with reed switch that is on the rod. The reed swicth on the rod turns to open position when the water level on the itself rises and it turns to closed positionwhen the water level decreasing.
    Features:
    • The length of the cable: 370 mm
    • The diameter of sensor: 20mm
    • The length of sensor: 50 mm
    • Maximum Load: 50w
    • Maximum Switching Voltage: 100V DC
    • Maximum Switching Current: 0.5A
    • Maximum Load Current: 1A
