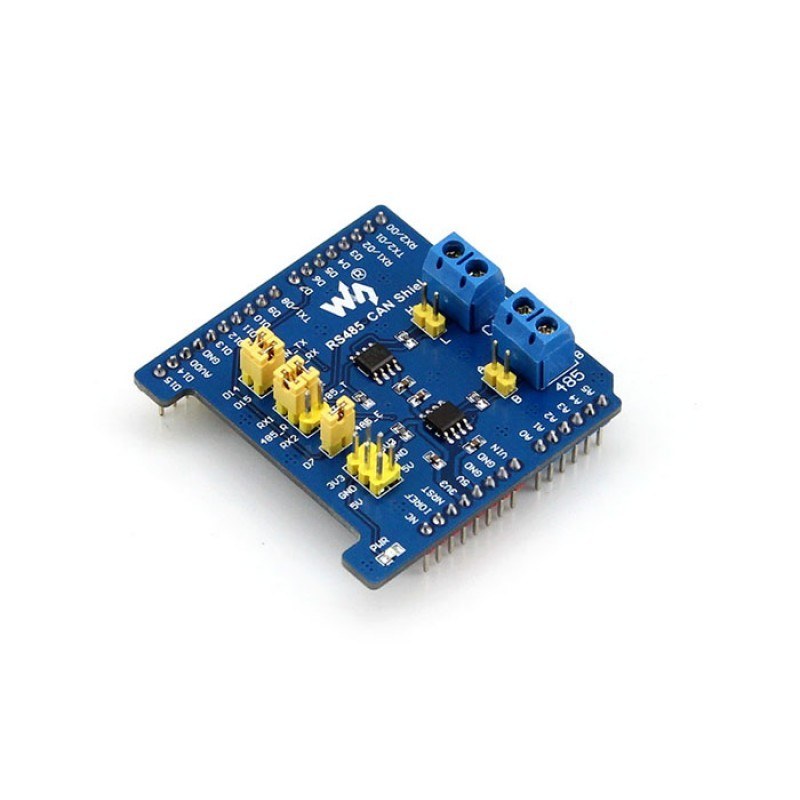

RS485/Can Shield for Arduino

The RS485/CAN Shield for Arduino allows you to practically bring RS485, a communication standard used for long-distance data transmission, to your projects.

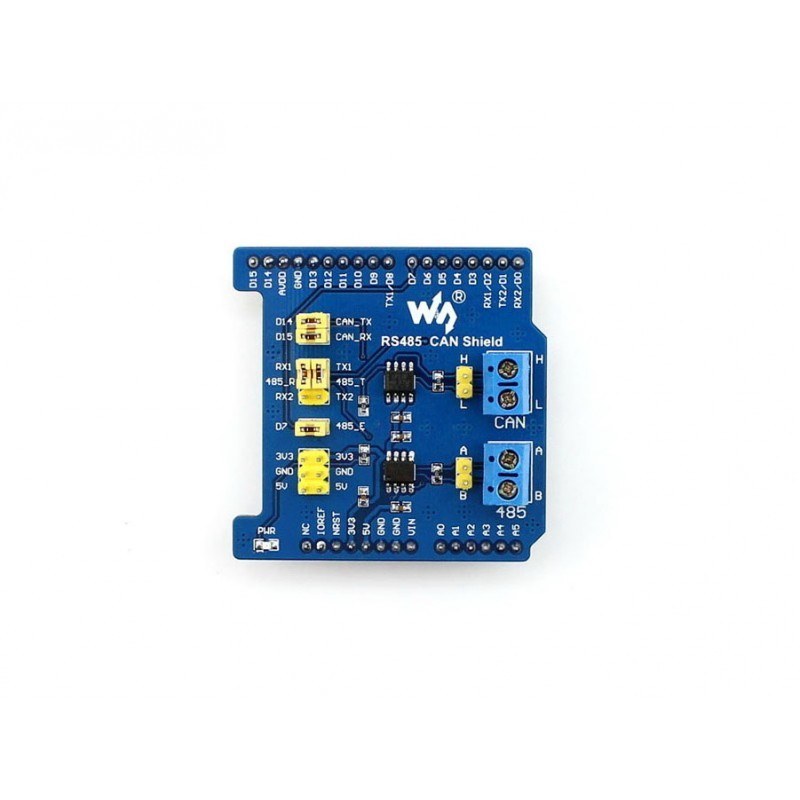

With the MAX3485 IC on the board, you can seamlessly add RS485 support to your development board.

Along with the RS485 protocol, CAN communication support is also provided.
Thanks to the SN65HVD230 IC on the shield, CAN communication can also be performed safely. To get more detailed information about the CAN bus, you can visit this link.

Important Note: Development boards based on the Arduino® UNO R3 and Arduino® Leonardo designs do not support CAN communication due to hardware limitations.

Products That Can Be Used Together:

• UNO R3 Development Board Compatible with Arduino
• Shield (Add-on) Boards Compatible with Arduino

RS485/CAN Shield for Arduino Technical Specifications:

• MAX3485 IC for RS485 communication
• SN65HVD230 IC for CAN communication

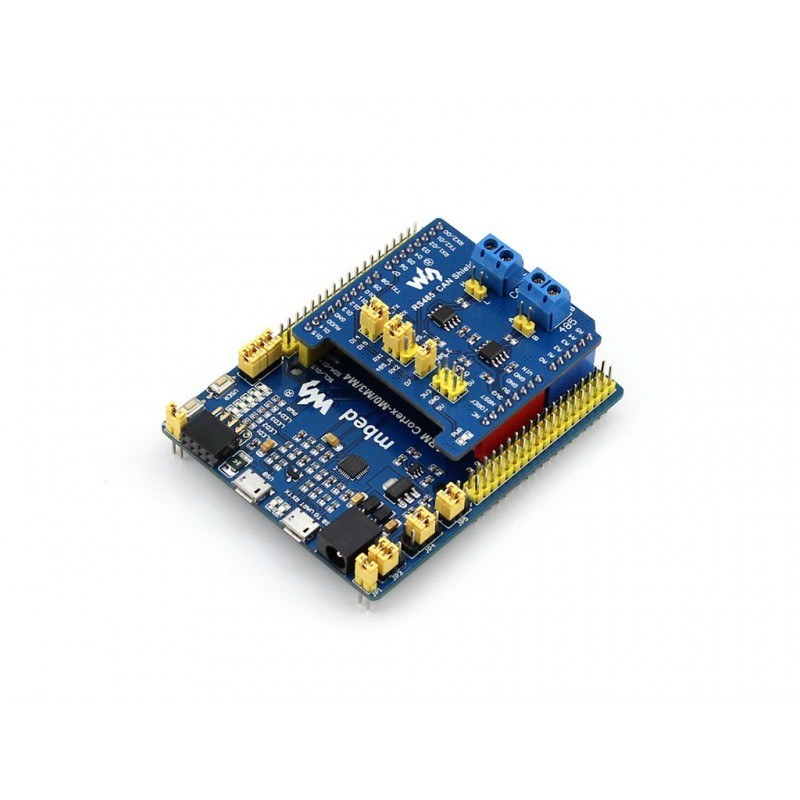

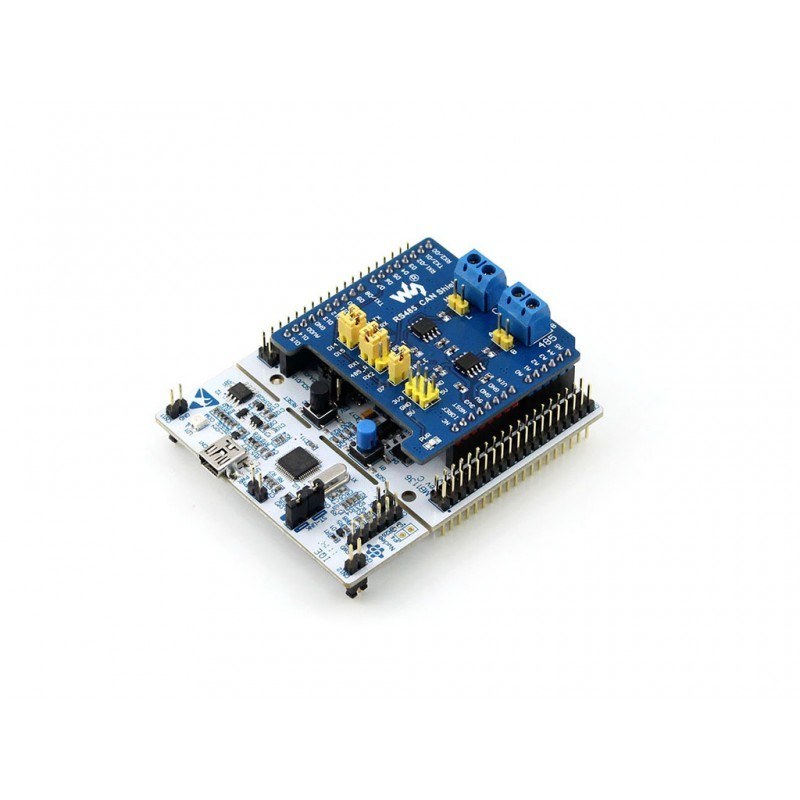

• Compatible with development boards in the form of Arduino® UNO, Leonardo, Nucleo, and Xnucleo.

Documents and Useful Links:

• User Manual (English PDF)
• Board Schematic
• Sample Codes
• Datasheet Files
• Manufacturer Web Page (Wiki)
