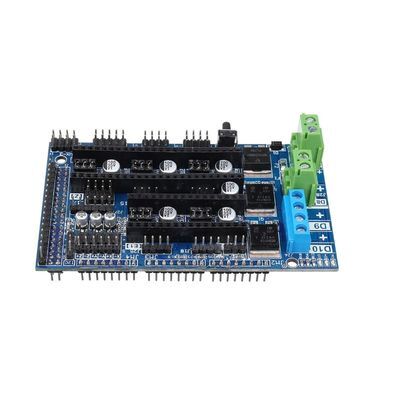

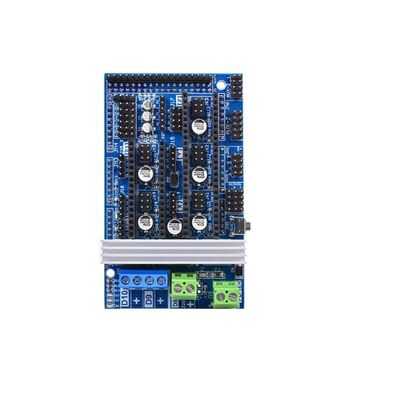

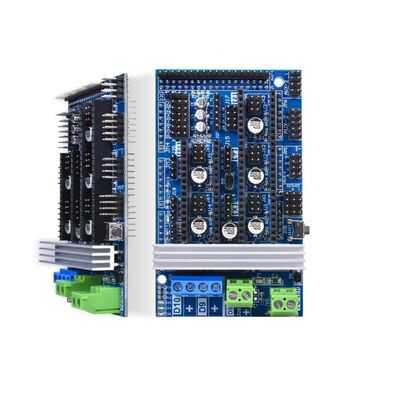

RepRap Ramps 1.6 3D Printer Controller Board

The RepRap Ramps 1.6 3D Printer Control Board is a control board widely used in 3D printers.
Compatible with the Arduino® Mega 2560 R3 model and many other boards featuring a similar pin layout, the Ramps 1.6 can be mounted directly onto the Arduino® Mega thanks to its shield design.

This board is very ideal if you are looking for a controller to make your own 3D printer or to change your printer's controller. Ramps has reached so many users for its opensource design info and this made it more developed in time.

Reprap, Mendel and Prusa compatible Ramps allows control of 5 seperate stepper motor.

It is possible to use 5 A4988 motor driver board to control these stepper motors. The products does not include motor drivers. Ramps supports 5 different stepper motors; 1 for X axis, 1 for Y axis, 2 for Z axis and 2 for extruders. Additionally, it has 3 heater outs and 3 limit-switch inputs. Lastly, wiring of the Ramps compatible LCD screen is fulfilled by the particular connector on the board.

RepRap Ramps 1.6 3D Printer Control Board Features:

• Extendable basis to control veried accessories

• 3 PWM controlled mosfet powered outputs.
• Power and Thermistor Support for 2nd Extruder.
• Heated bed control with 11A fuse
• 3 thermistor circuits, 2x Extruder, 1x heatbed.
• 5 Pololu Stepper Driver sockets (x4 assembled drivers include)
• 6 sets of Digital Pins in headers with VCC and GND for endstops (mechanical endstops included with this kit)
• Complete with Power Cables for connecting to an ATX PSU
• Fused at 5A for additional safety and component protection
• Extra pins broke out : PWM, digital, serial, SPI, I2C and analog
• Supports Bluetooth and SD add on upgrades
• Expandable to control other accessories. such as Fans etc
• Fused at 5A for additional safety and component protection
• Thermal Overload Protection circuit
• LEDs indicate when heater outputs on
• 2x Z Motor Connections for Prusa Mendel Z Axis Applications
• Open Source Licensed Hardware under GPLv3

Documents:

• Click here for detailed information and the product page.
