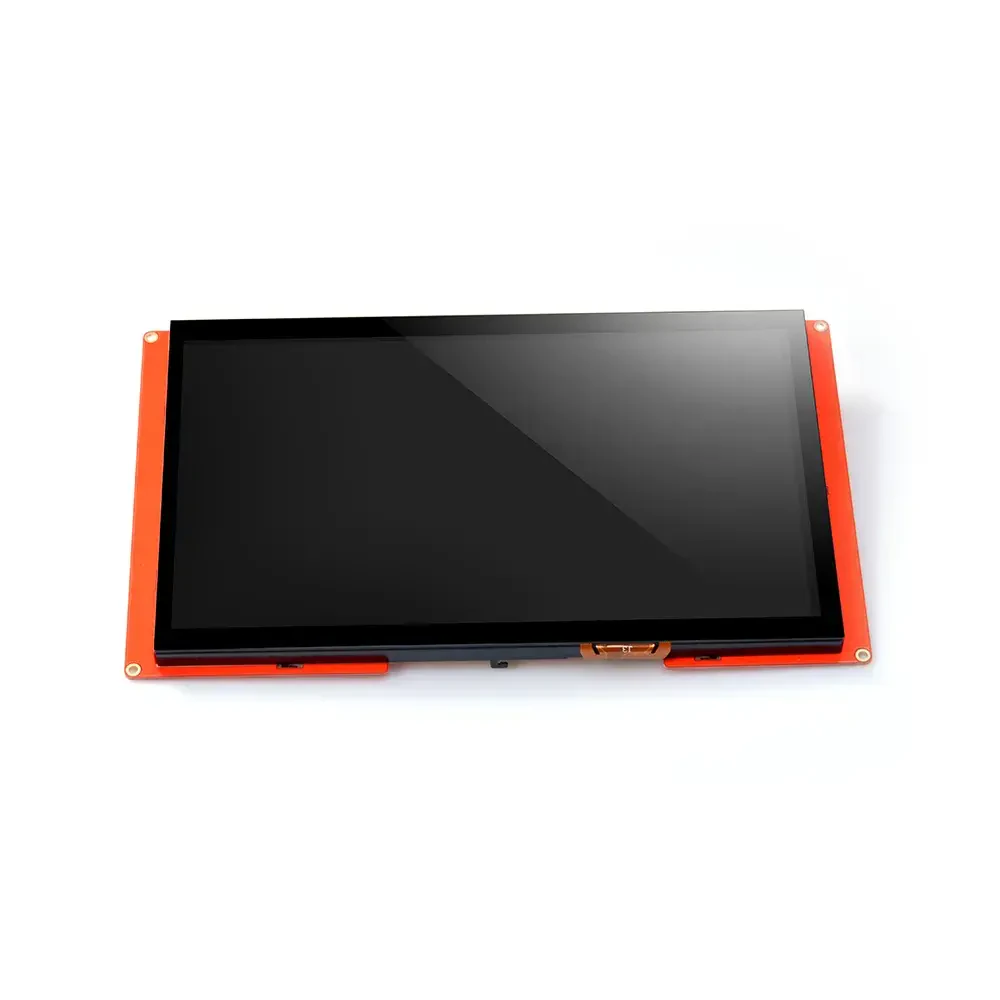

NEXTION NX1060P101-011C-I - 10.1'' Intelligent Series USART HMI Capacitive Touch Display

NEXTION NX1060P101-011C-I - 10.1‘’ Intelligent Series USART HMI Capacitive Touch Display

NEXTION NX1060P101-011C-I, It is a TFT screen with touch feature produced by nextion company. It is an HMI product that combines the processor, memory unit and touch screen with control and visualization between process, machine, device in a single platform. Nextion has a display, a set of TFT cards on the hardware side, and nextion's own editor on the software side. Thanks to the grab and drag feature of Nextion editor, you will now spend less time writing programs while designing interfaces, thanks to components such as graphics, buttons, and text. There are ASCII-based commands for encoding the display side, it communicates with your control card thanks to the UART interface. In addition, a single serial port is used for communication with the TDT card inside, thus eliminating the hassle of cabling.

NEXTİON NX1060P101-011C-I Features;

• Screen Size: 10.1”
• Card Size: 258 x 152 x 11.5 mm
• Weight: 535g
• Resolution: 1024 x 600
• Screen Life: 30,000 Hours
• Power Consumption: 5V/2A
• Voice Interface
• Adjustable Brightness
• Pin: 4 Pin
• 8 Dijital GPIO
