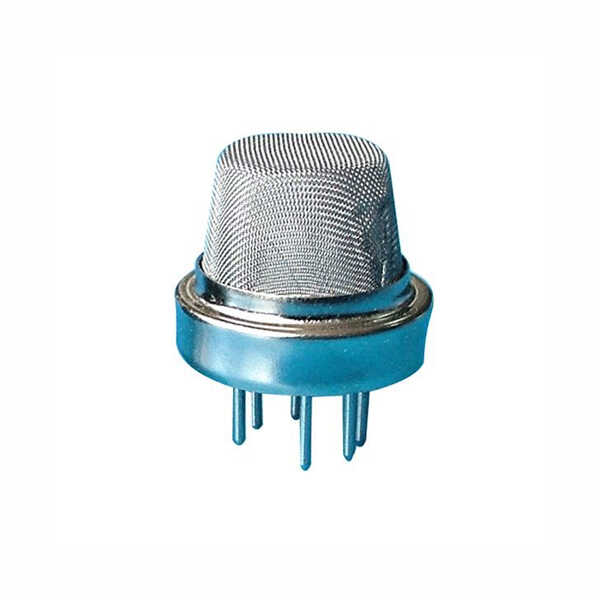

MQ137 Ammonia Detection Sensor

Product Code
:
11721
Brand / Origin
:
China
Quantity
:
3
Without Vat
:
161.49 TL
Quantity:

-

+

Same Day Shipping
If you purchase before 3pm, your products will ship at the same day. Except saturday and sunday
Add to Favorites
You can add this product on your list and check it later.
Add Comment
Featured Campaigns Related the Product

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Features
  • Payment Options
  • Comments (0)
  • Recommend
  • Images
  • Suggestion Box
  • Sensitive material of MQ137 gas sensor is SnO2, which with lower conductivity in clean air. When NH3 gas exists, the sensor’s conductivity gets higher along with the gas concentration rising. Users can convert the change of conductivity to correspond output signal of gas concentration through a simple circuit.

    MQ137 gas sensor has high sensitivity to NH3 gas, also can monitor organic amine such as trimethylamine, cholamine well. It can detect kinds of gases including ammonia and is a kind of low-cost sensor for kinds of applications.

    Application Areas:
    It is widely used in domestic NH3 gas alarm, industrial NH3 gas leakage alarm, portable NH3 gas detector.


    Technical Details:
    Model MQ137
    Sensor Type Semiconductor
    Standard Encapsulation Bakelite, Metal cap
    Target Gas Ammonia Gas(NH3)
    Detection range 5~500ppm NH3
    Standard Circuit Conditions Loop Voltage Vc ≤24V DC
    Heater Voltage VH 5.0V±0.1V AC or DC
    Load Resistance RL Adjustable
    Sensor character under standard test conditions Heater Resistance RH 29Ω±3Ω(room tem.)
    Heater consumption PH ≤900mW
    Sensitivity S Rs(in air)/Rs(50ppmNH3)≥2
    Output Voltage △Vs ≥0.5V (in 50ppm NH3)
    Concentration Slope α ≤0.6(R200ppm/R50ppm NH3)
    Standard test conditions Tem. Humidity 20℃±2℃;55%±5%RH
    Standard test circuit Vc:5.0V±0.1V; VH: 5.0V±0.1V
    Preheat time > 48 hours
