Expand your world by learning programming and having fun with the mBot Ranger three-in-one educational robot!
What Can You Do With mBot Ranger?
- Ranger; You can be transformed into crawler robot, 3-wheeled car and balance robot.
- With the Makeblock application (Android/iOS), you can access many ready-to-use projects and have fun.

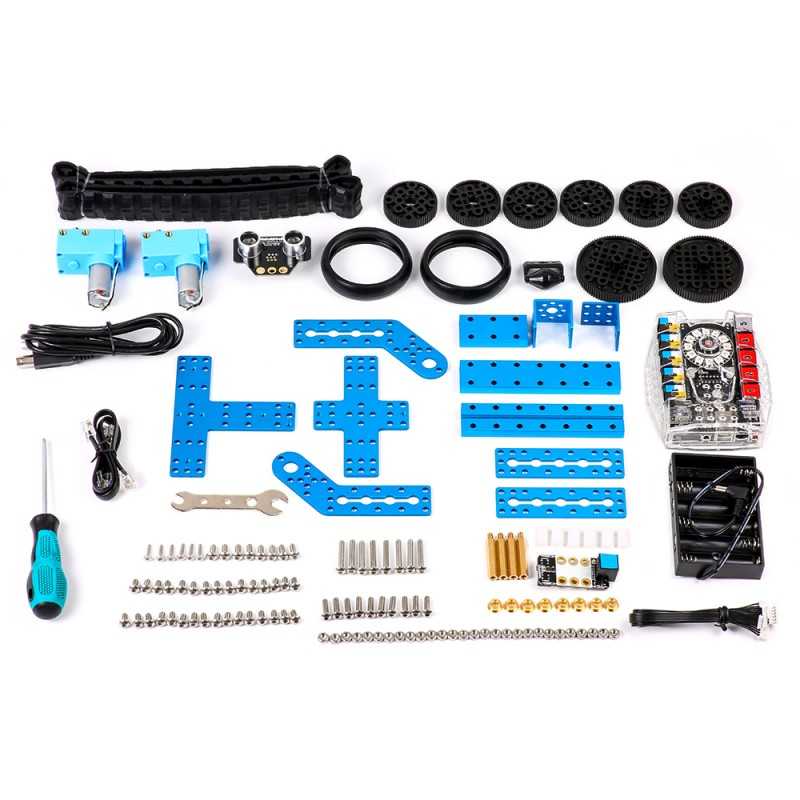

Product Content:
- 2x 0824-112 beams
- 1x 0824-48 beam
- 2x 0324-88 plates
- 2x 135° plate
- 1x Battery holder plate
- 1x T-type plate
- 1x 3x3 bracket
- 1x U1 bracket
- 1x Mini caster wheel
- 4x 62T stepless wheels
- 2x 62T wheels
- 2x 90T wheels
- 2x 90T tires
- 2x Pallet
- 4x 4x7x10mm plastic spacer
- 2x 180 encoder motors
- 8x Copper roller bearing
- 4x Brass M4x30+6 spacer
- 1x Battery holder
- 1x Me Auriga card
- 1x Ultrasonic distance sensor
- 1x Line tracking sensor
- 1x USB cable
- 2x 20cm RJ25 cable
- 1x Spanner
- 1x Allen/head screwdriver
- 22x M4x8mm screw
- 4x M4x10mm screws
- 6x M4x14mm screws
- 4x M4x25mm screws
- 2x M2.5x12mm screws
- 10x M4 nut
- 2x Encoder motor cable

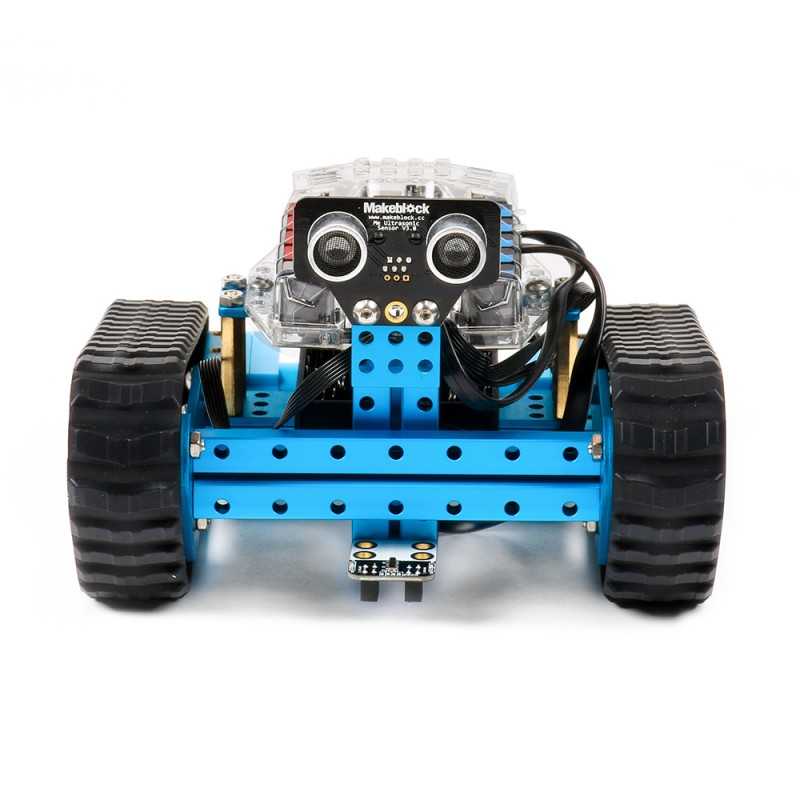

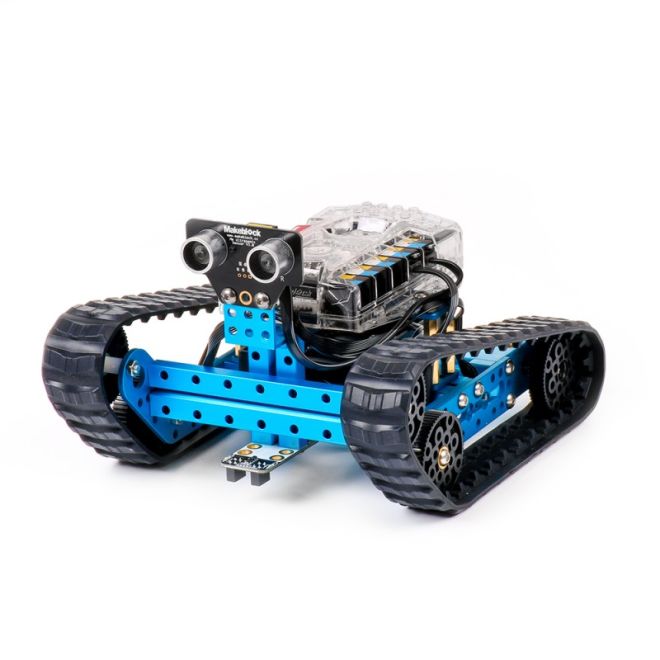

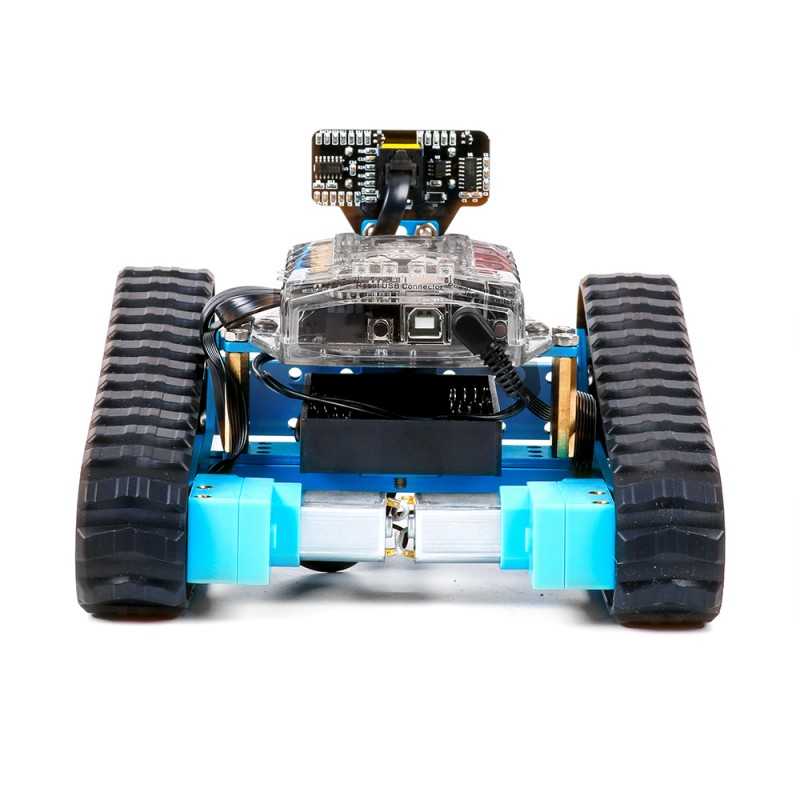

Terrain Robot
Thanks to its tracked structure, it is a robot that will allow you to use it in rough terrains that other robots cannot enter.

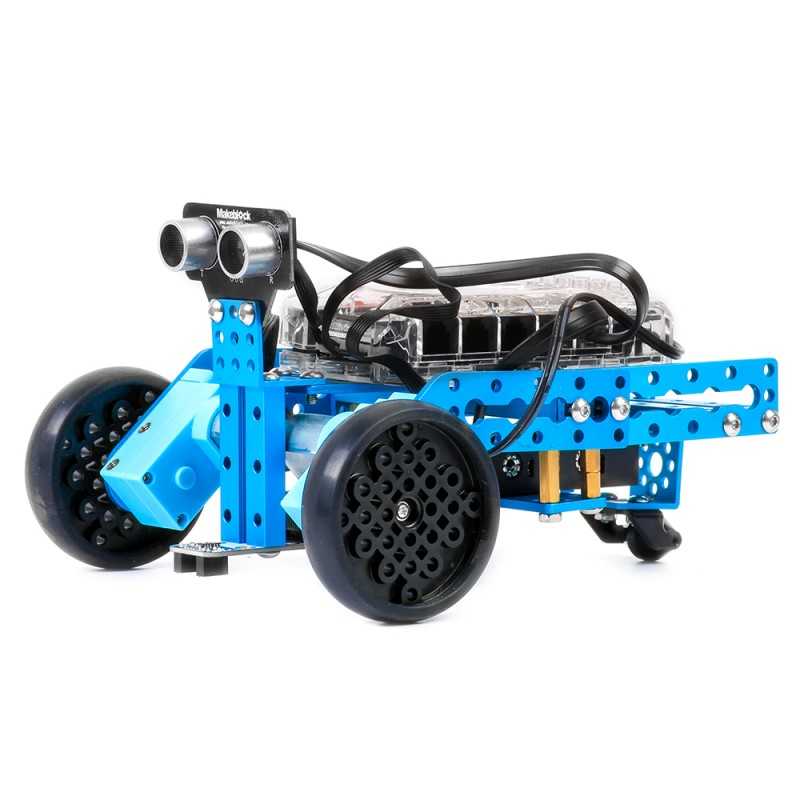

Fast Raptor, Predator
High-speed three-wheeled racing car robot. Just like a bird of prey, it can move quickly and make precise maneuvers.

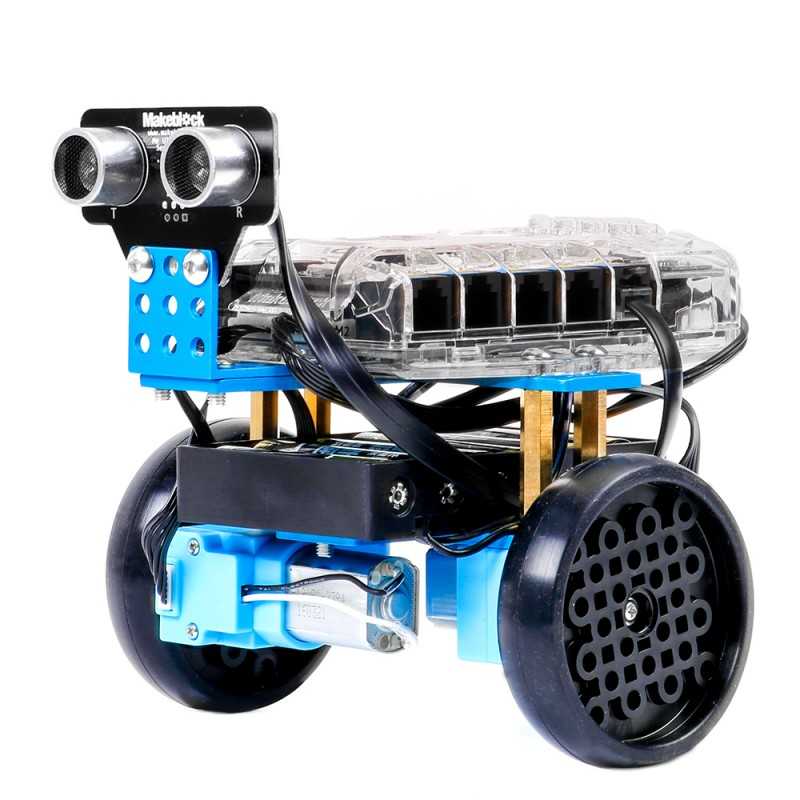

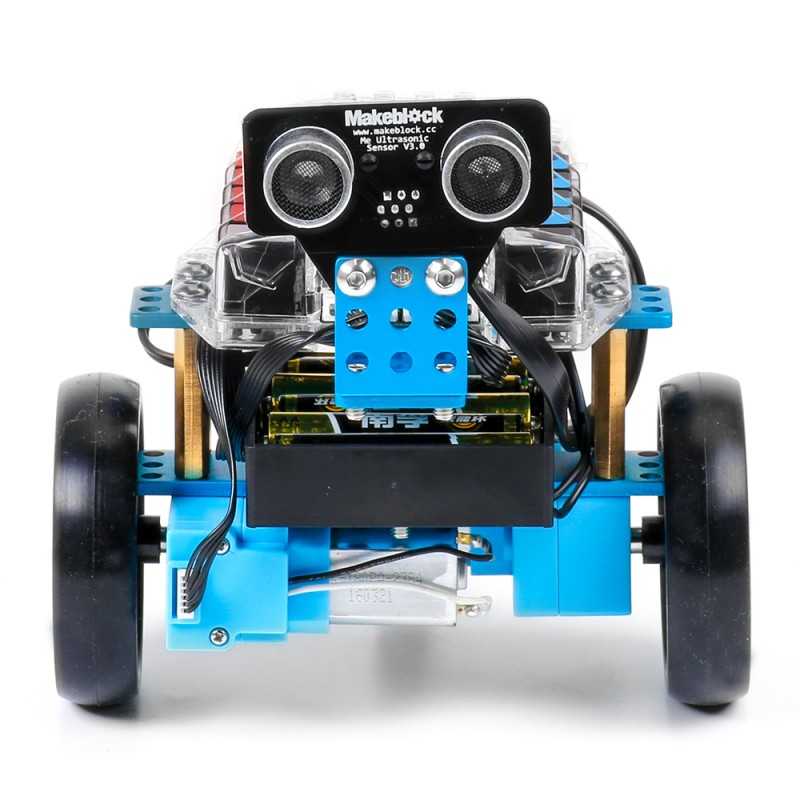

Balance Robot
Balance robot that can balance on two wheels like an excited bird. It can stay straight when stopped, and turns by lying down during maneuvers.
Powerful Motherboard
The latest Me Auriga board is based on the open source Arduino Mega 2560. In addition to having 5 internal sensors (2x light, sound, gyroscope, temperature) on it, it allows you to add the functions you want thanks to its 10 expansion ports.
Grafiksel Programlama
mBot Ranger, Scratch 2.0 tabanlı grafiksel bir programlama ortamı olan mBlock yazılımı ile tam uyumludur. Bilgisayarınızı kullanarak çok basit bir şekilde sürükle-bırak yapısı sayesinde programlamanın temellerini öğrenebilir ve projeler geliştirebilirsiniz.
Programming with iPad/Tablet
In addition to being able to program with a PC using mBlock, it is possible to program mBot Ranger with a graphical interface similar to the Makeblock application, using your smart devices such as iPad.
Wireless Control
In addition to programming support, the Makeblock application also allows you to control your robot from your smart device. Have fun by driving your Ranger in the environment you want using your mobile phone or tablet!
Easy Connection
The modules can be connected to the main control board very easily with the RJ25 sockets used in telephones.
Infinite Expansion Options
You can add brand new features to Ranger, which is fully compatible with the Makeblock platform, with nearly 400 additional parts, and push the limits of your creativity and fun!
What is the Difference Between mBot Ranger and mBot?
mBot Ranger has more sensors and variety than the classic mBot. You can examine in detail from the table below:
Technicial Specifications:
- Software and programming: PC/Mac: mBlock, Arduino IDE, Tablet/Smartphone: Makeblock
- Main controller: Arduino Mega 2560, 256KB flash memory, 8K SRAM, 4KB EEPROM
- Sensors (internal): 2x light sensor, 1x sound sensor, 1x gyroscope, 1x temperature sensor, 1x ultrasonic distance sensor, 1x line tracking sensor, 1x buzzer
- Power: 6xAA battery (not included)
- Motor: 2x 400 RPM encoder motor
- Wireless communication: Bluetooth/2.4GHz wireless
- Dimensions: 200 x 165 x 120mm
- Weight: 1600gr
