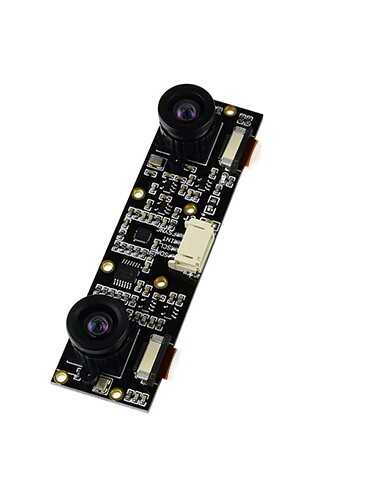

IMX219-83 Stereo Binoculars Camera Module with Depth Sensing - 8MP

IMX219-83 Stereo Camera, 8MP Binocular Camera Module, Depth Vision

The IMX219-83 Stereo Camera is a module used for AI vision applications such as depth or stereo vision on development boards like Jetson Nano or Raspberry Pi. Additionally, its ability to capture photos or record videos extends the capabilities of your microcontrollers for various multimedia projects.

IMX219-83 Stereo Camera Application Areas:

• Used in AI vision applications such as Depth Sensing, Stereo Vision, and 3D Mapping.

IMX219-83 Stereo Camera Technical Specifications:

• Megapixels: 8
• Sensor: IMX219
• Camera CMOS Size: 1/4 inch
• Aperture (F): 2.4
• Resolution: 3280 x 2464
• Focal Length: 2.6 mm
• Field of View (FOV): 83° (D) / 73° (H) / 50° (V)
• Distortion: < 1%
• Baseline Length: 60 mm
• ICM20948 (IMU):
• Accelerometer Resolution: 16-Bit
• Measurement Range (Configurable): ±2 / ±4 / ±8 / ±16 g
• Gyroscope Resolution: 16-Bit
• Measurement Range (Configurable): ±250 / ±500 / ±1000 / ±2000°/sec
• Magnetometer Resolution: 16-Bit
• Magnetometer Measurement Range: 4900µT
• Dimensions: 24 x 85 mm

IMX219-83 Stereo Camera Package Content:

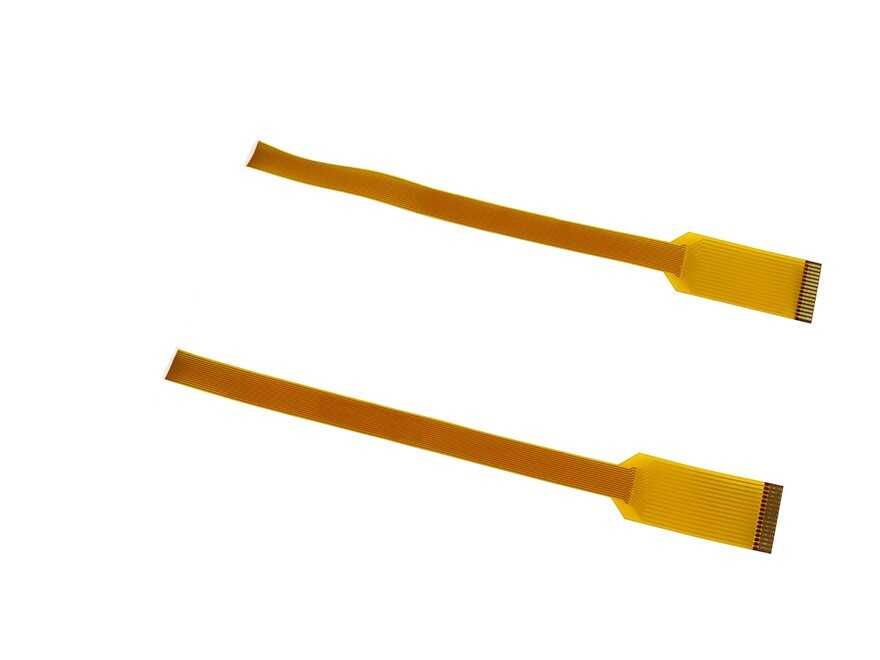

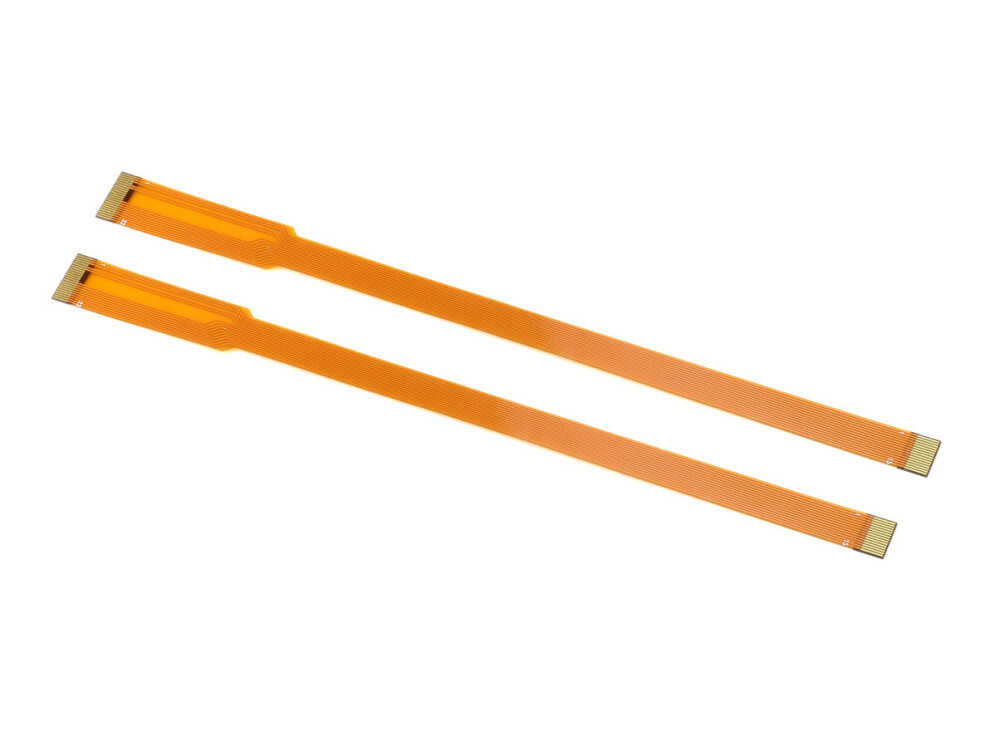

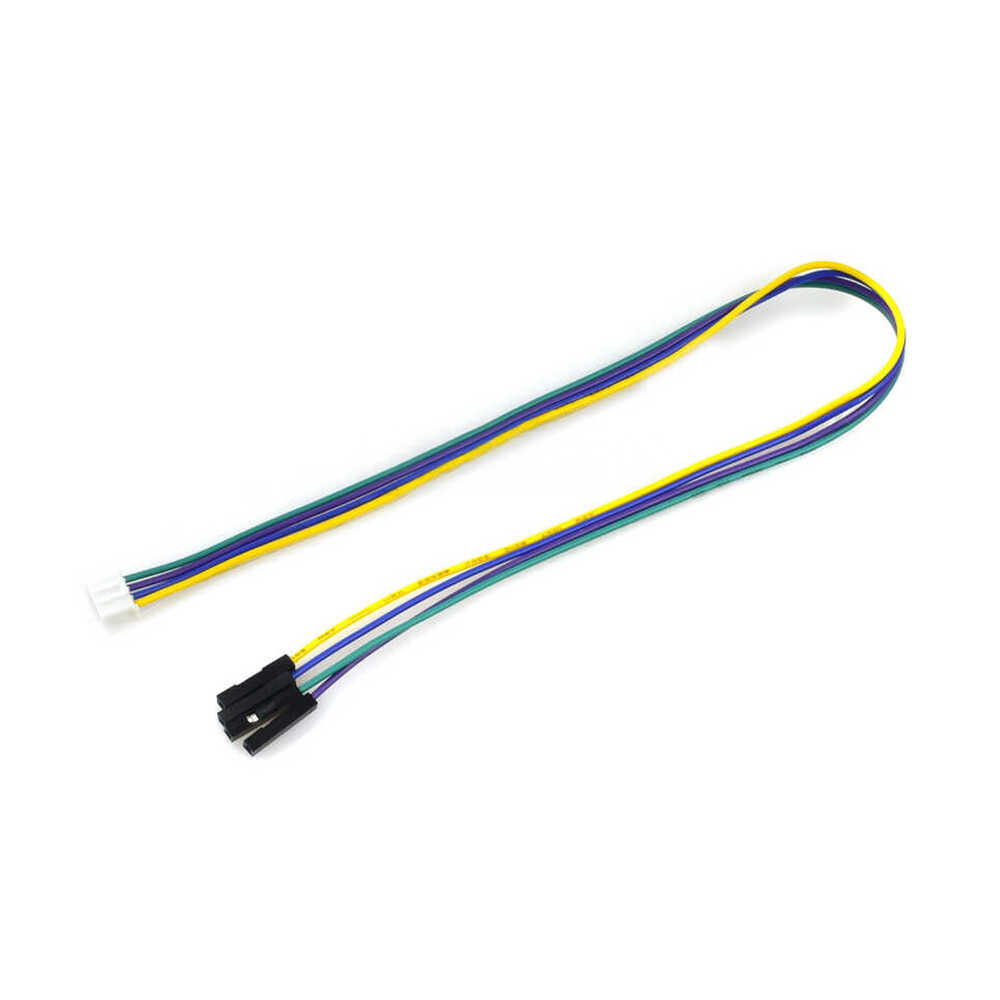

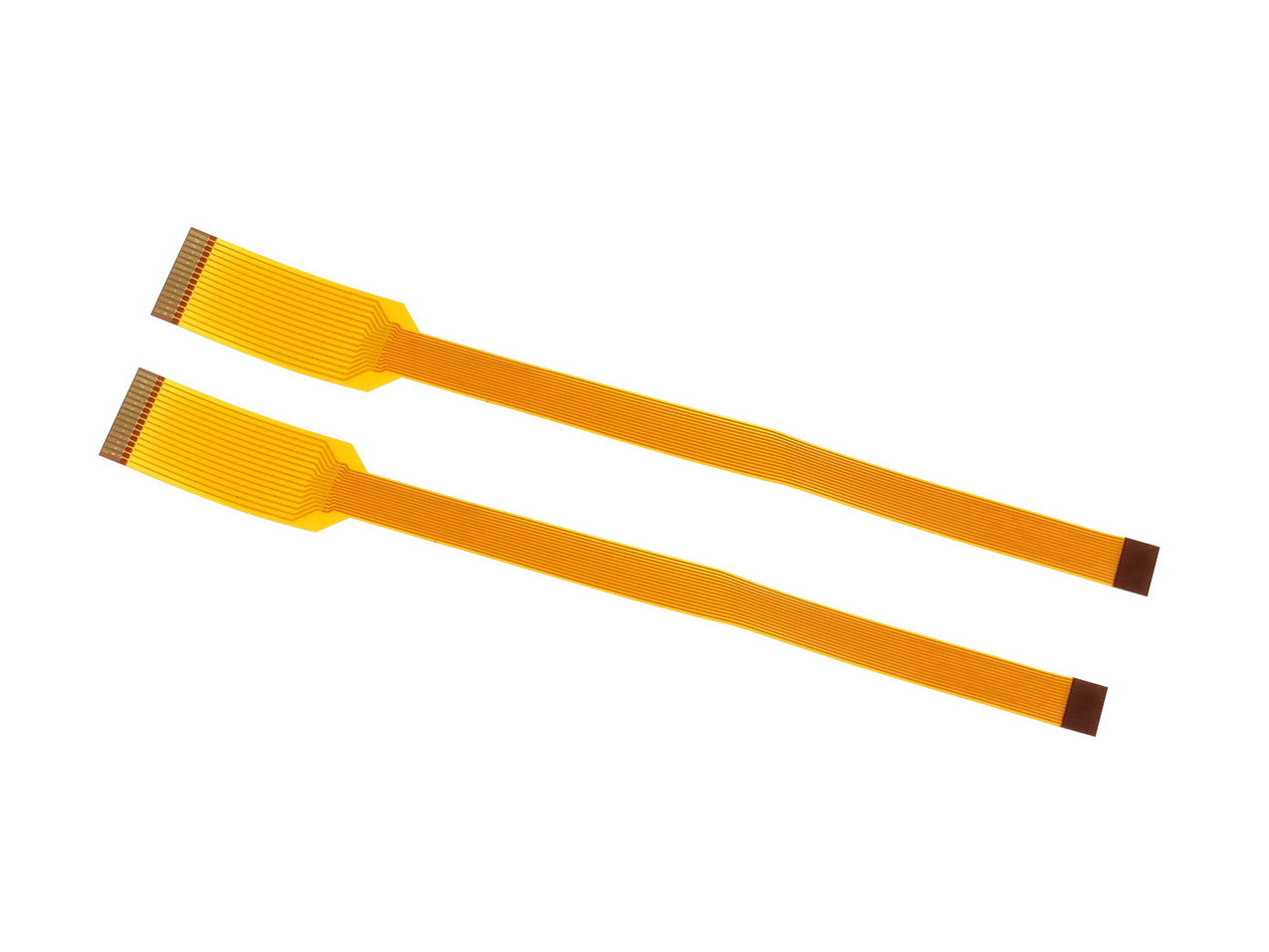

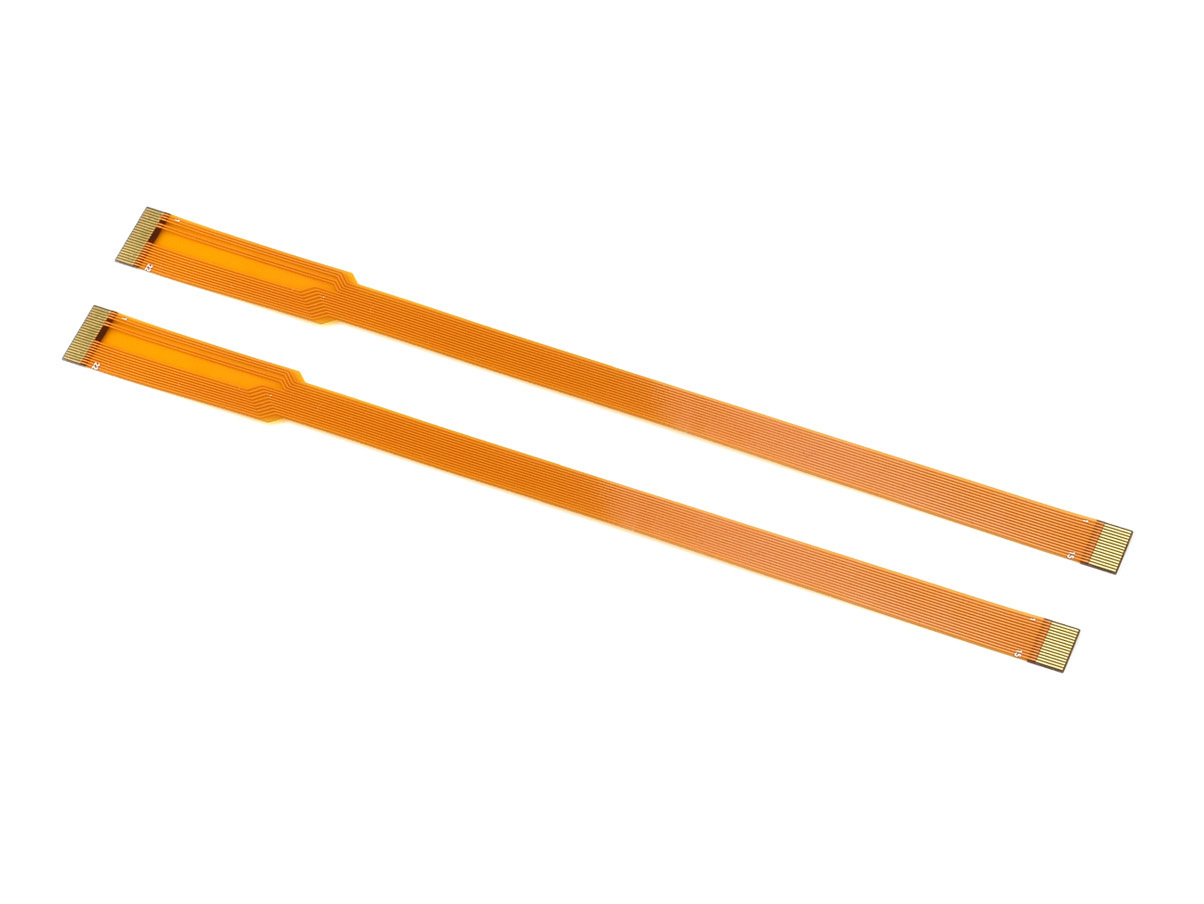

IMX219-83 Stereo Camera	FPC 15-pin (2 units)	FPC 15-pin to 22-pin (2 units)	PH2.0 4-Pin Cable
