GT2 Hoop, 20 Gear

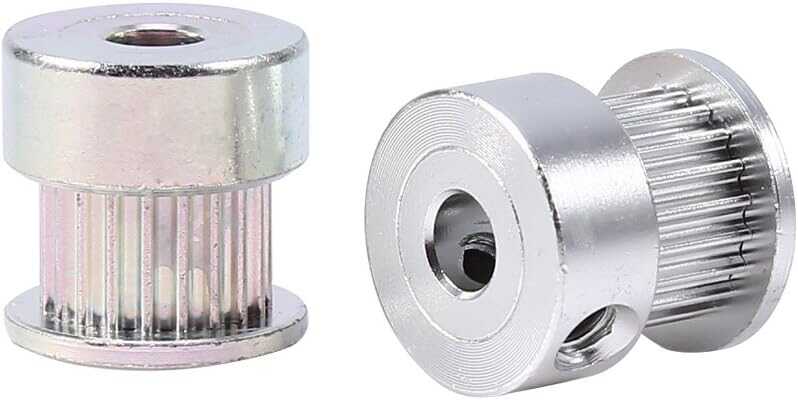

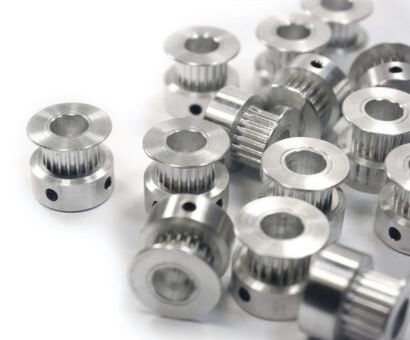

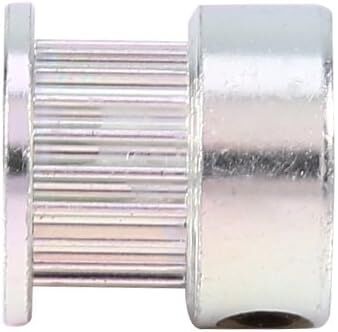

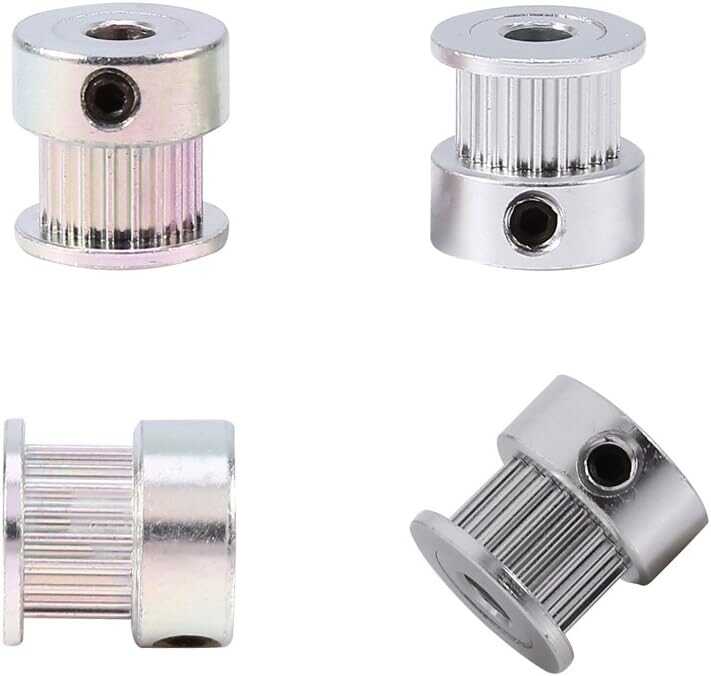

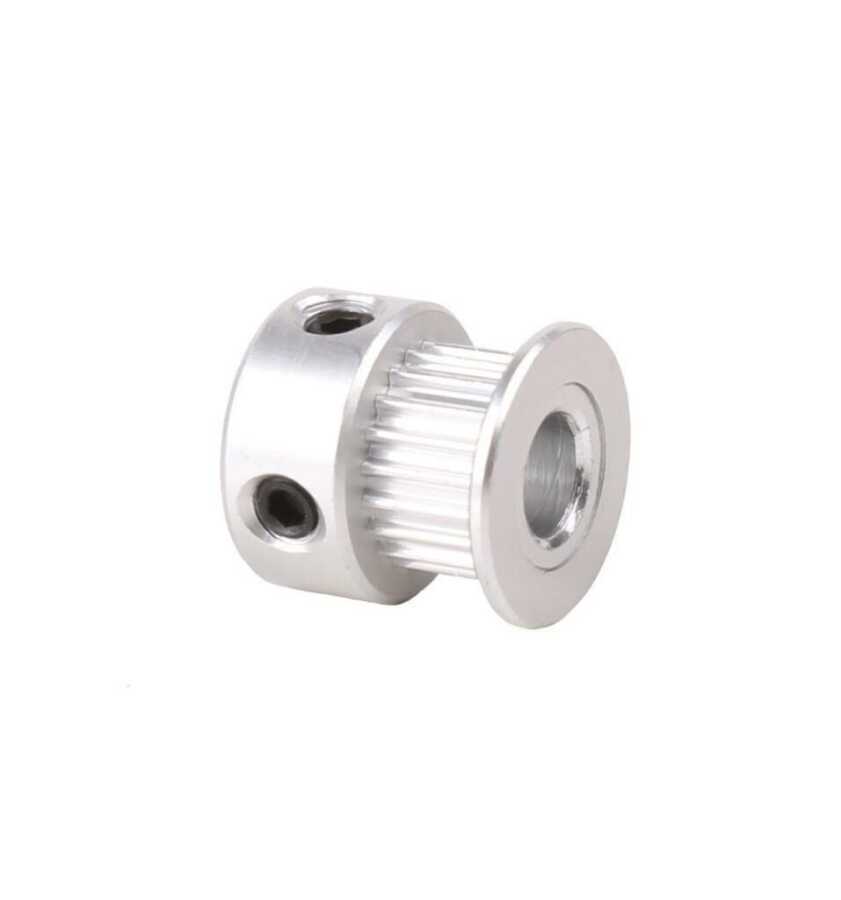

GT2 Pulley, 20 Teeth

The 20-tooth GT2 pulley is compatible with GT2 belt systems and provides high precision and low backlash in 3D printers, CNC machines, and various mechanical transmission applications. Thanks to its aluminum body, it is lightweight, durable, and long-lasting. It comes with a set screw for easy mounting onto stepper motor shafts.

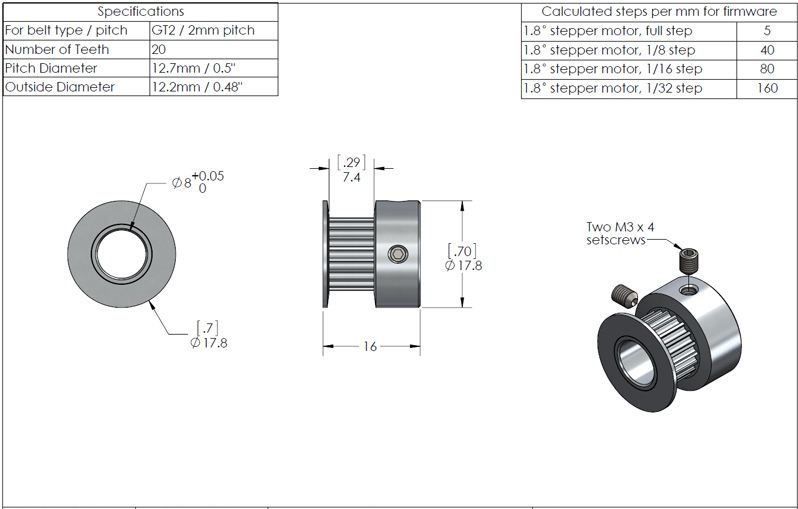

GT2 Pulley, 20 Teeth Technical Specifications:

• Number of Teeth: 20

• Compatible Belt: GT2 (6 mm width)

• Material: Aluminum

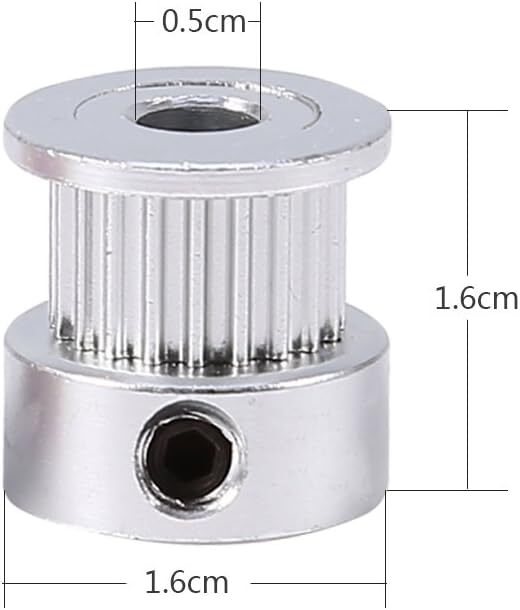

• Total Height: 16 mm

• Diameter: 16 mm

• Bore Diameter: 5 mm

• Set Screws: 2 hex socket screws

• High-precision tooth profile prevents belt slipping
