F4V3SM8N GPS LC Betaflight Flight Controller Board - M8N GPS



F4V3SM8N GPS LC Betaflight Flight Control Board is a board created by combining a series of sensors such as gyroscope, magnetometer and accelerometer with GPS and you can control all the movements of the drone. Flight control CPUs can use data about all states, including the drone's state, speed, position and direction, to guide the flight and operation of the vehicle according to the parameters.

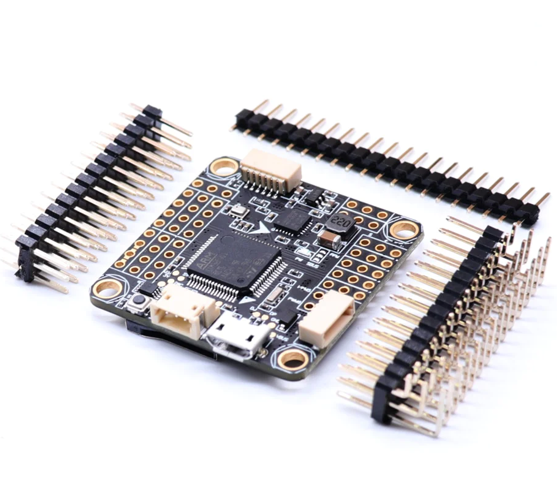

F4V3SM8N GPS LC Betaflight Flight Controller Technical Specifications:



  • Microprocessor: STM32 F405 MCU
  • Internal Current
  • VTX PID Programming with smart sound
  • D-Shot Supported
  • SD CARD Slot for BlackBox
  • MPU6000
  • OSD
  • Signal Pin Hole: 4 x
  • Pin hole for ESCs: 4 x 3
  • SBUS/PPM + DSMX Ports
  • SmartAudio V2
  • IR pins

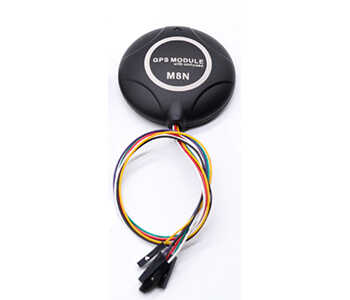

GPS Module Technical Specifications:



  • Material : Plastic
  • Tracking Sensitivity: -161dBm
  • Capture Sensitivity: -148dBm
  • Capture Time: 0.1s (average)
  • Cold Start Time: 38s (average)
  • Hot Start Time: 35s (average)
  • Simultaneous GNSS: 10Hz
  • Power Supply Voltage: 3.5V / 5.5V
  • Temperature: 40°C / 80°C
  • Dimension: 55 mm

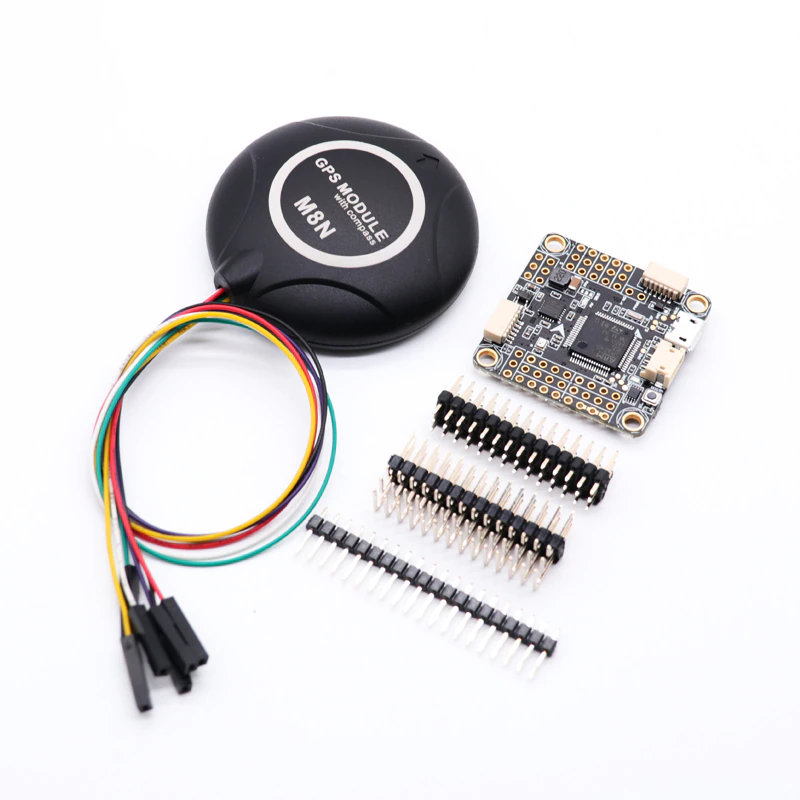

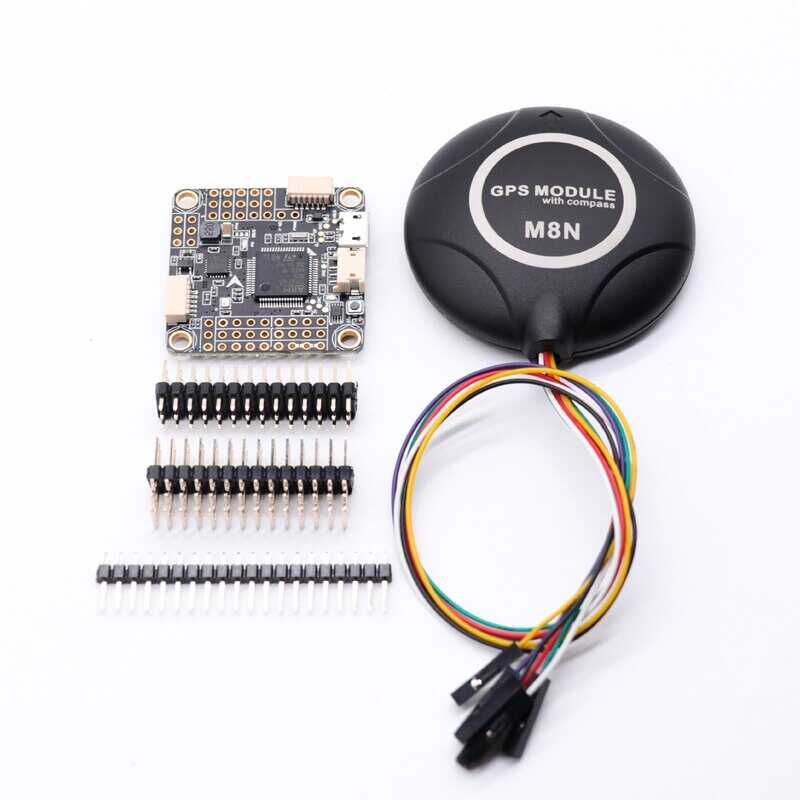

F4V3SM8N GPS LC Betaflight Flight Controller Package Contents:



  • 1 Piece Flight Control Board
  • 1 Piece GPS Module
