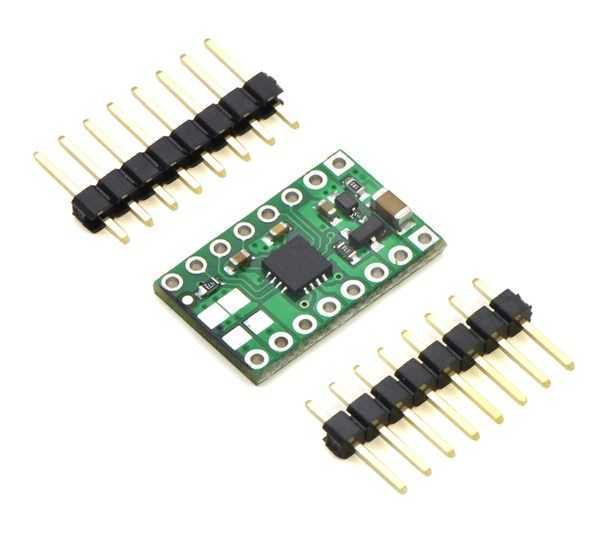

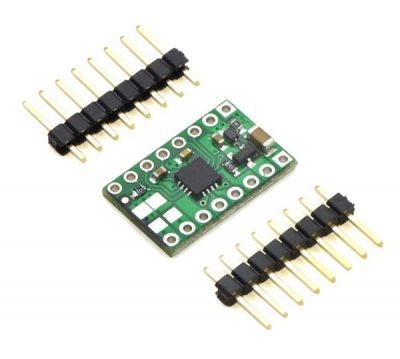

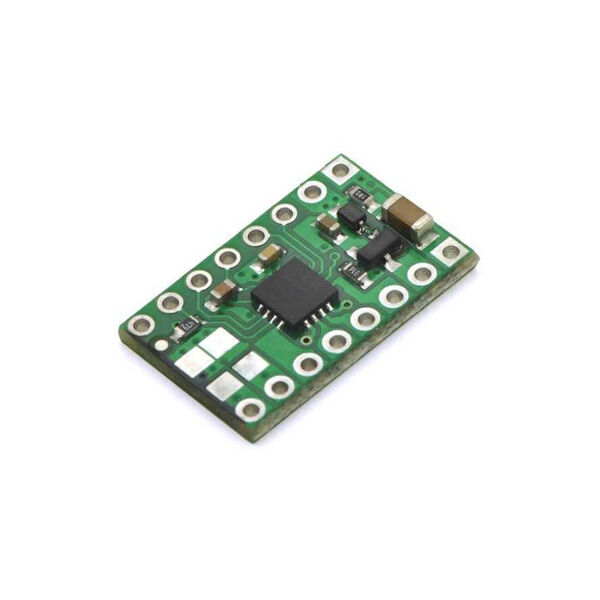

DRV8833 Pair Motor Driver Board

Product Code
:
11795
Brand / Origin
:
Pololu
Quantity
:
0
Without Vat
:
330.05 TL
Same Day Shipping
Orders placed until 5:00 on weekdays and 10:30 on Saturday are shipped the same day.
Add to Favorites
Click here to add this product to your list and review it later.
Technical Service
We are always with you with our experienced staff and advanced support services.
Refund Guarantee
We carry out the process without upsetting you with a 14-day return guarantee.
Add Comment
  • Features
  • Payment Options
  • Comments (0)
  • Recommend
  • Images
  • Suggestion Box
  • Through DRV8833 Motor Driver Board, you can seperately drive two motors which don't need high power. DRV8833 supports 2.7V - 10.8V voltage range and can deliver continuously 1.2A and peak 2A current. Board is solid and safe with it's reverse voltage, low voltage, high current and temperature protections.

    Features :

    • Operation Voltage: 2,7-10,8 V
    • Output Current: Continuous 1.2A, peak 2A for each motor.
    • Motor ouputs can be connected as parallel. Through this, board can deliver continuously 2.4A , peak 4A current.
    • 3 V logic signal compatible inputs are available
    • Low voltage, over current and termal shotdown

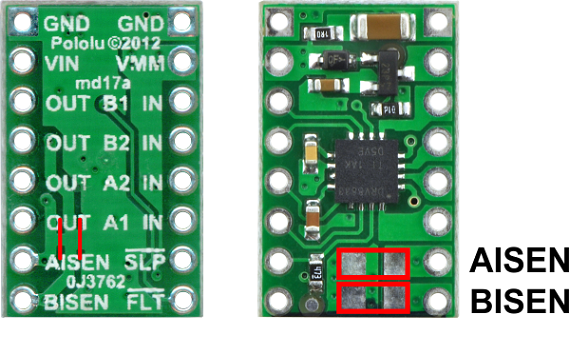

    • Current limiting property is available on the board. For activating this property, you can cut fields which have shown in the picture with a knife and solder resistor to the shown field.
    • Information about resistor values for configurate current limiting value are available at product datasheet.

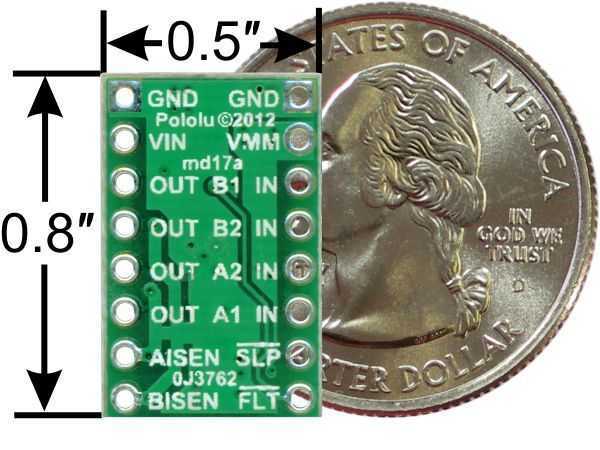

    • Dimensions : 1.3 x 2 cm
    • Weight : 1 gr

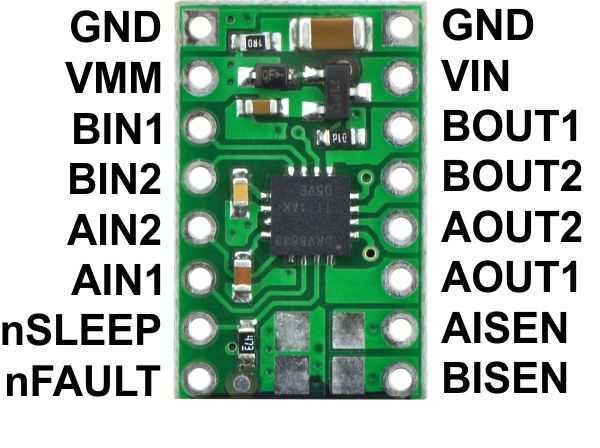

    Motor Connections :


    Circuit schematic of Board :


    Documents :
