Deneyap Electronic Development Kit

Brand
Deneyap
Product Code
20600
İşlemci
Xtensa® 32-bit LX6 Çift Çekirdekli İşlemci
Bağlantı Noktası
USB2.0/Type B 2.0/Type C
Dijital Giriş-Çıkış
16
Analog Giriş-Çıkış
6
Kablosuz Bağlantı
Var
Hafıza
4MB
Fiyat
: 884.17 TL + VAT
KDV Dahil Fiyat
: 1,061.00 TL

Deneyap Electronic Development Kit

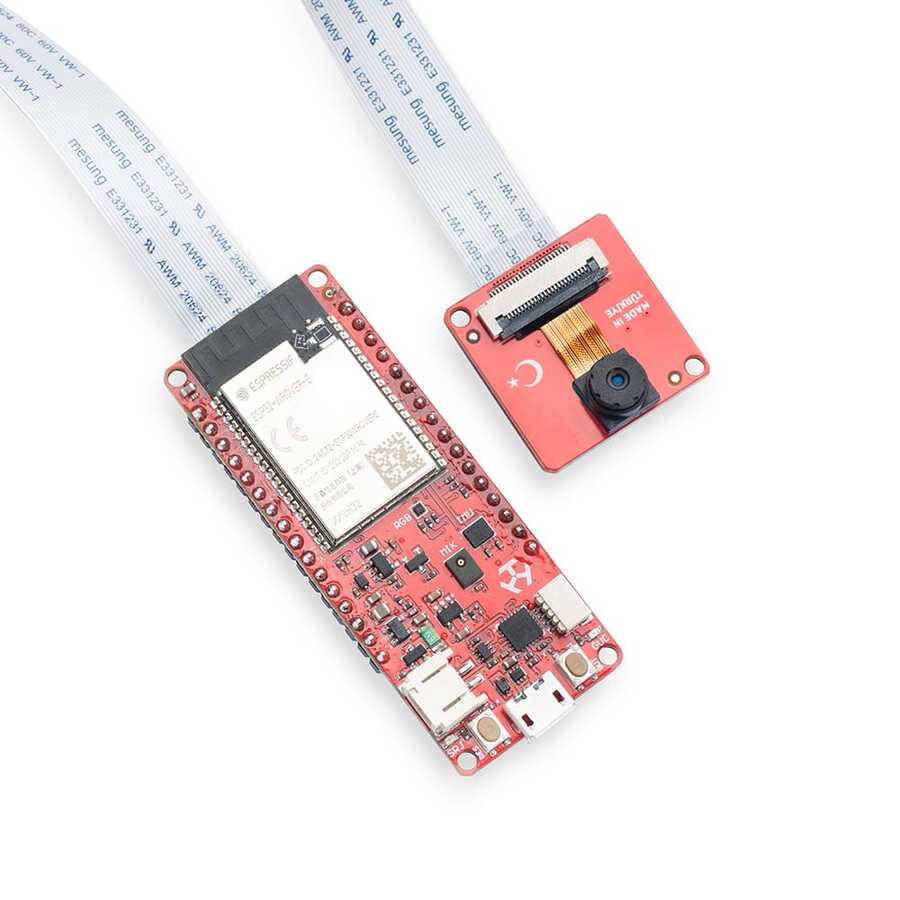

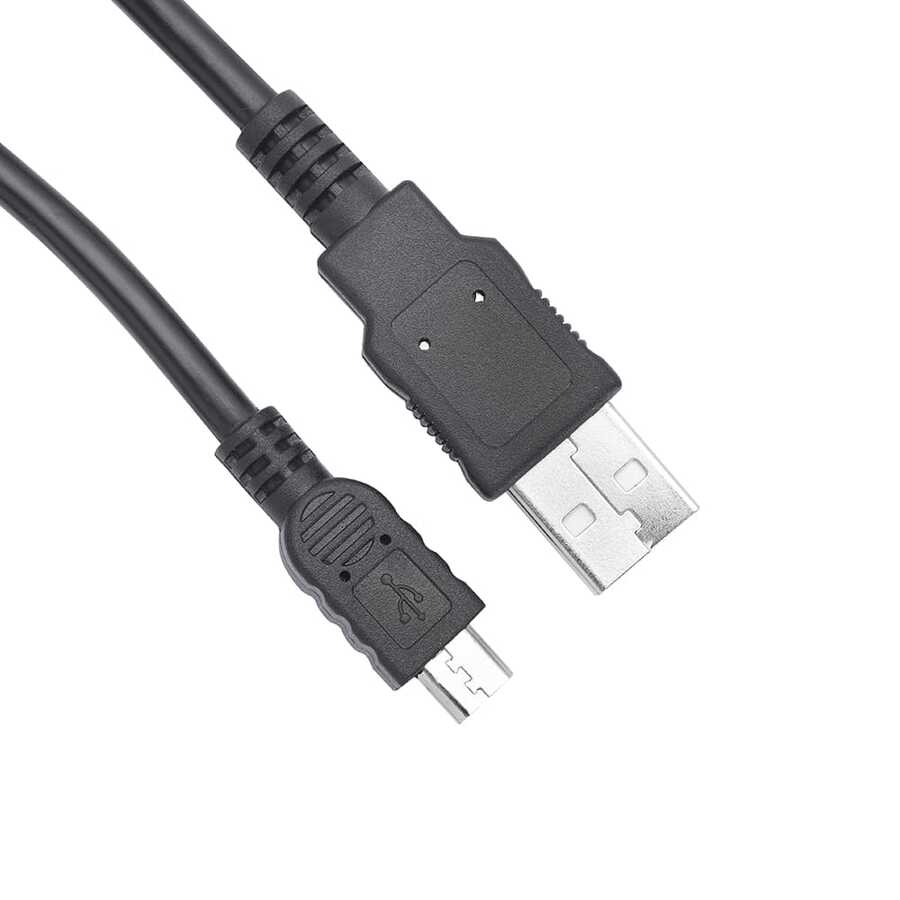

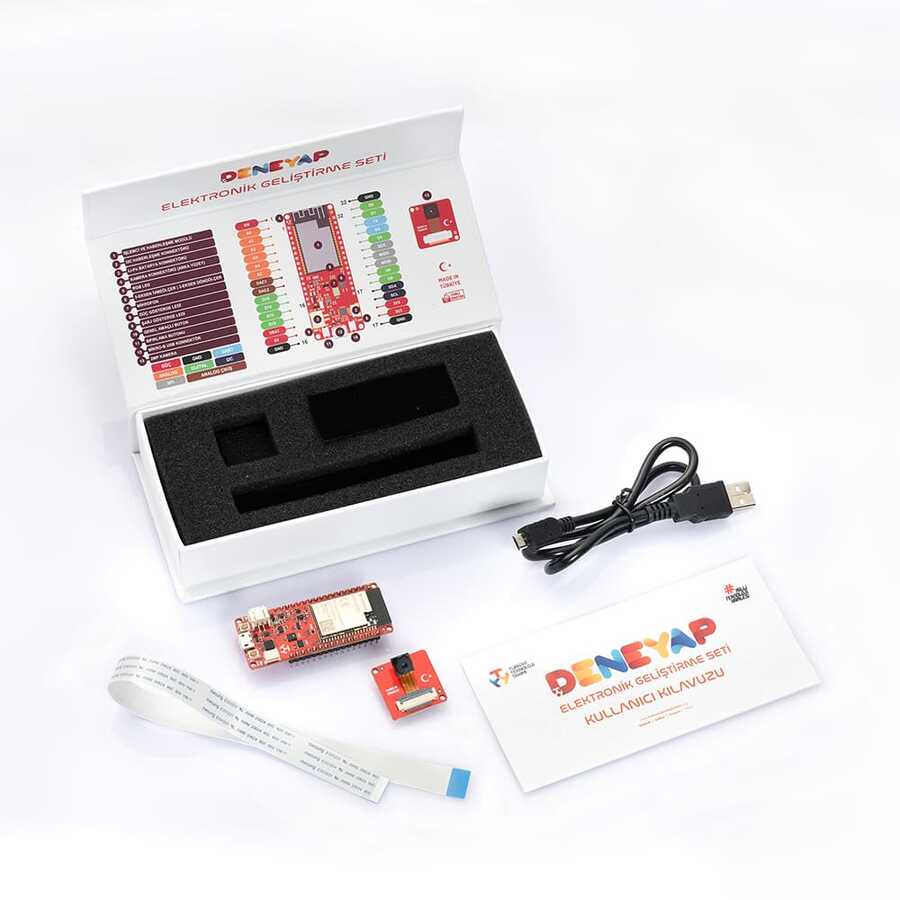

Deneyap Card, Deneyap Camera, USB cable and Deneyap Camera connection cable are ready for you in a single box. Push the limits of your imagination with Deneyap Electronic Development Set !



Deneyap Card:

  • The versatile and powerful electronic development board of the Deneyap family was developed using the original ESP32-WROVER-E module.
  • With the powerful dual-core Tensilica Xtensa LX6 microprocessor, you can start machine learning and artificial intelligence-based projects with Tensorflow Lite.
  • Thanks to its built-in Wi-Fi and Bluetooth communication features, it will allow you to prepare internet of things and cloud-based projects.
  • By using the Wi-Fi communication feature, you can exchange data between your system and your cloud-based application. You can set up a closed-loop wireless communication network by using Deneyapap Kart as a server.
  • With the dual mode (Dual) Bluetooth feature, you can exchange data with devices that have both BLE and Bluetooth EDR infrastructure. Experience Card; smart home, smart agriculture, smart vehicles, mobile health etc. It offers you great convenience in internet of things projects where you can perform applications in areas.
  • There is a high-sensitivity LSM6DSM sensor internally in the Deneyap Card. With this sensor, you can measure 3-axis acceleration and 3-axis rotation and monitor the temperature of your system.
  • With its built-in MP34DT05 microphone with MEMS technology, Deneyapap Kart not only detects the loudness of the surrounding sounds; It allows you to make speech and voice recognition applications.
  • It has a rich connection interface such as UART, I2C, SPI, I2S, Ethernet, SDIO, Capacitive Sensor. Also, in order to provide you flexibility, some of these connection interfaces can be used from any pin you want according to your needs.
  • It has 24 pins that can be used for general purposes. Those used as digital inputs/outputs from these pins are protected by PTC fuses against overcurrent.
  • A special Li-Po docking connector is available to help you reliably power your system.
  • Moreover, you can charge your Li-Po battery using this connection connector.
  • You can connect Deneyapap camera directly to the (FPC) connector on the test card.
  • In addition, there are 2 buttons and 1 RGB LED internally.
  • By using the I2C communication connector, you can quickly implement your system consisting of sensor and actuation units without wiring or soldering. Even when feeding your system with a Li-Po battery, the power output with 5V voltage will always be with you.
  • Deneyap Card has a design that is compatible with the breadboard. Its pins are soldered for you to start developing immediately.
  • Deneyap Card is compatible with Arduino IDE. You can start coding using the guidelines..




Deneyap Card Technical Specifications

  • 240 MHz Dual Core Tensilica LX6 Microprocessor
  • 520KB SRAM
  • 128KB ROM
  • 8MB of PSRAM
  • 4MB SPI Flash
  • 2.4GHz Wi-Fi – 802.11b/g/n
  • Bluetooth EDR and BLE
  • Internal PCB Antenna
  • 3-Axis Gyro and 3-Axis Accelerometer with LSM6DSM
  • MP34DT05 MEMS Microphone
  • RGB LED (Pins: RX, TX, SDA)
  • General Purpose Button (Pin: GPKEY)
  • Li-Po Battery Charger
  • Li-Po Battery Connector
  • USB Micro-B
  • I2C Communication Connector
  • 24 x Digital Input/Output Pins
  • 16 x Analog Input Pins (12-bit ADC)
  • All Digital Input/Output Pins; Supports UART, SPI, I2C Communication Interfaces and
  • External Interrupt
  • All Digital Output Pins Support PWM
  • 3.3V Operating Voltage
  • 3.3V and 5V Output Voltage
  • 3.3 – 5.5V Input Voltage
  • 63.50mm x 25.4mm x 15.70mmm


Deneyap Camera Technical Specifications:

  • Sensor: Omnivision OV2640
  • Resolution: 2 Megapixels
  • Lens Type: Fixed Focus
  • Focusing Range: 60cm – Infinite
  • Field of View (FoV): 66 degrees
  • Infrared Filter: Yes
  • Maximum Image Transfer Rate: 1600 × 1200 @15fps, SVGA @30fps, CIF @60fps
  • Dimensions: 25.4mm x 25.40mm x 9.40mm
  • Connection: 24-pin Flat Flexible Cable (FFC)
  • Image Signal Processing Functions: Automatic Exposure Control (AEC), Automatic
  • White Balance (AWB), Automatic Gain Control (AGC), Automatic Band Filtering (ABF),
  • Automatic Black Level Calibration (ABLC)
  • Picture Quality Control Features: Sharpness, Noise Reduction, White Pixel Reduction,
  • Lens Correction, 50/60Hz Brightness Detection, Noise Reduction, Noise Reduction, Gamma, Color Saturation, Variable Frame Rate Control Special Effectsr


Deneyap Camera:

  • The Deneyapap camera has a 2-Megapixel OV2640 sensor and an infrared filter lens.
  • It is compatible with Deneyapap card and you can connect it to Deneyapap card with 24-pin Flat Flexible Cable (FFC).
  • You can shoot video with 1600 x 1200 pixel resolution and 15 fps image transfer rate and take photos with 1600 x 1200 pixel resolution.
  • Entry-level object identification, face recognition, image classification, etc. You can use Deneyapap camera in artificial intelligence applications..
