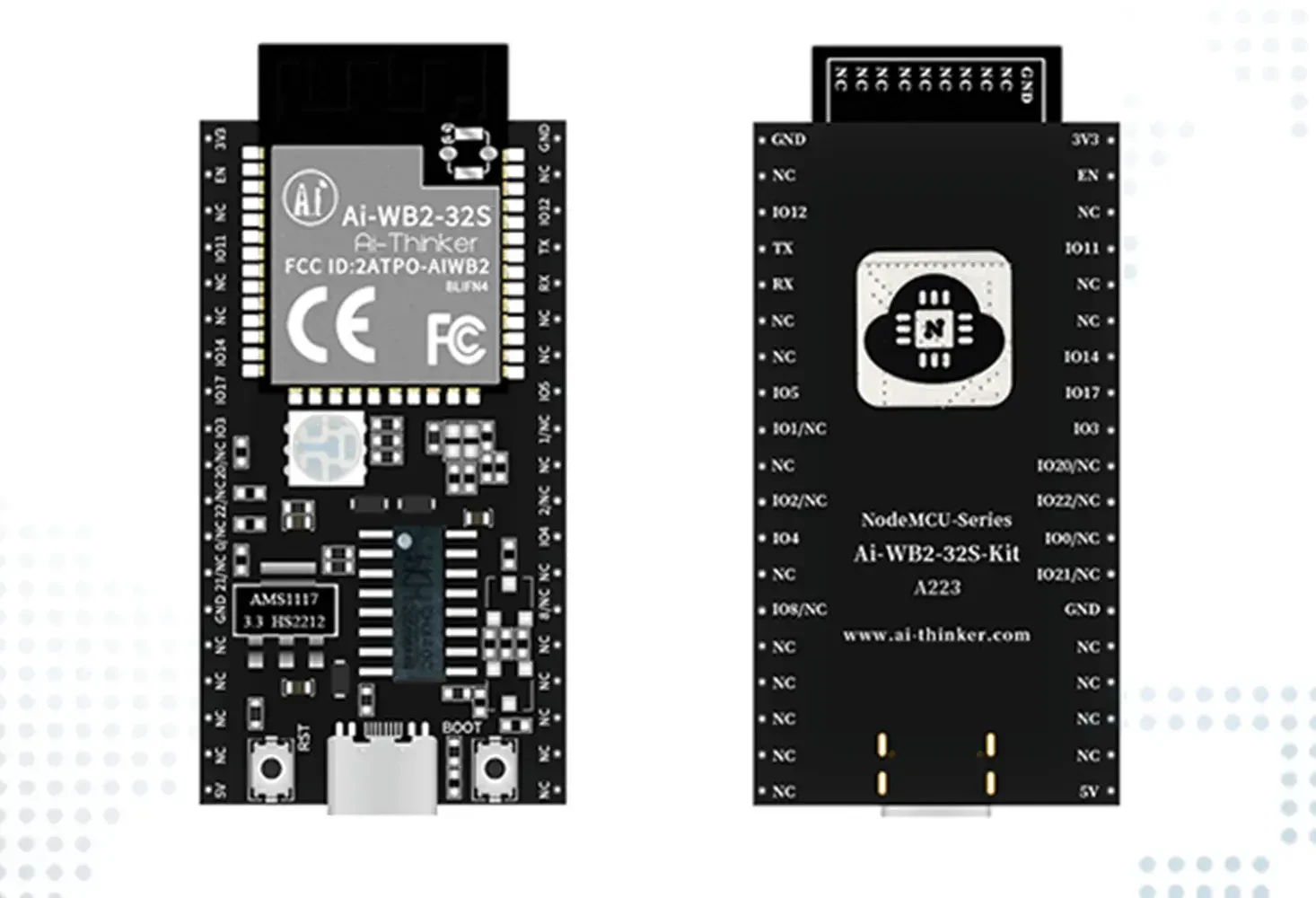

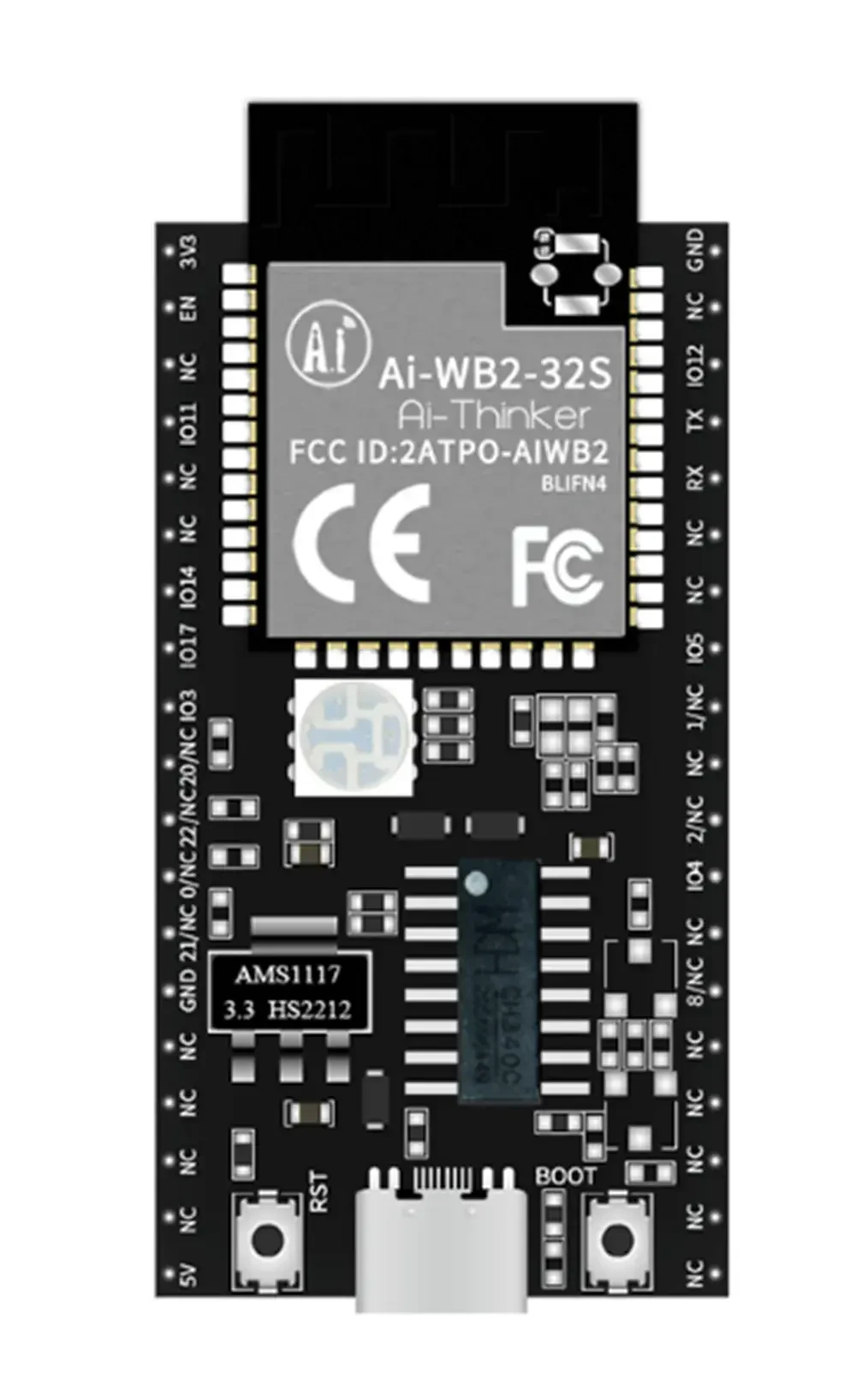

Ai-WB2-32S-Kit

AI-B2-32S is a development board for AIWB 2-32S modules. Shenzhen AI-Thinker Technology Co.,Ltd. It is a Wi-Fi and BT module. The module is as follows, a weapon with BL602 chip as core processor and mandatory Wi-Fi 802.11b/g/n protocol and BLE 5.0 protocol. The BL602 chip has a low-power experience: a 32-bit RISC CPU, 276 KB of RAM and a variety of combinations including SDIO, SPI. UART, VDC, IR, PWM, ADC, DAC, PIR, and GPIO. It is widely available on the Internet.

Ai-WB2-32S-Kit Technical Specifications:

• DIP-38 package.
• It implemented the IEEE 802.11 B/g/n protocol.
• Wi-Fi security Liked WPS / WEP / WPA / WPA2 Personal / WPA2 Enterprise / WPA 3.
• It achieved a maximum speed of 72.2 Mbps and a bandwidth of 20 MHz.
• Bluetooth BLE 5.0, Bluetooth Network.
• Station + BLE mode, station + SoftAP + BLE mode applied.
• Replaced 32 Bit RISC CPU and 276 KB RAM.
• Safe Boot. ECC-256 signed images are supported.
• Released real-time AES decryption (OTFAD) on QSPI and SPI Flash.
• 128 TO mode.
• It implemented AES 128, 192 and 256 bit encryptions.
• 1/224/256 - Supports SHA.
• True random number generator. (TRNG)
• Successful public key accelerator (PKA) using multiple core processes. (This software enables the use of applications such as signature and verification.)
• It cannot pass SDIO, SPI, UART, VDC, IR remote, PWM, ADC, DAC, PIR and GPIO.
• Integrated Wi-Fi MAC / BB/RF/PA/ LNA / BT
• Deep sleep changed multiple sleep modes with current 12ΜA.
• Providing Quick Start of Universal AT commands.
