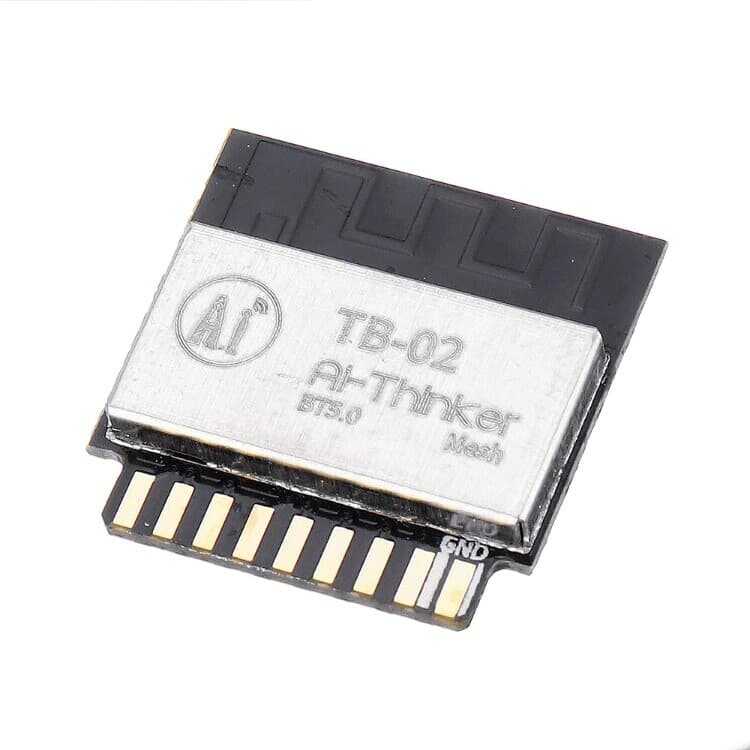

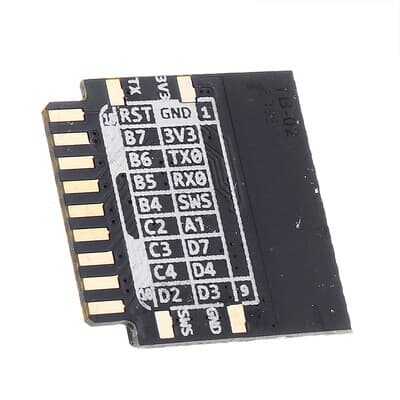

TB-02 Bluetooth Module (Bluetooth 5.0)

TB-02 Bluetooth Module (Bluetooth 5.0)

TB-02 smart lighting module is a Bluetooth module based on TLSR8250F512 chip and compatible with BT 5.0 low power Tmall Genie Mesh. This module supports Bluetooth module directly controlled by Tmall Genie and has Bluetooth mesh network function. Peer-to-peer networking using Bluetooth broadcast for communication can provide timely response in case of multiple devices. It is mainly used in intelligent light control, which can meet the requirements of low power consumption, low latency and short-range wireless data communication.

TB-02 Bluetooth Module (Bluetooth 5.0) Technical Specifications:

• Input Voltage: 2.7V ~ 3.6V
• Input Current: > 50mA
• Wireless Standard: Bluetooth V5.0
• Frequency range: 2400 ~ 2483.5MHz
• Transmission Distance: 80m ~ 150m
• Pin: 6 PWM


TB-02 Bluetooth Module (Bluetooth 5.0) Dimensions:

Similar Products:

• PB-02 Bluetooth Module (Bluetooth 5.0)
• TB-03F Bluetooth Module (Bluetooth 5.0)

Products That Can Be Used Together:

• Arduino Models

Useful Links / Documents:

• TB02 Datasheet
