4.5mm x 8mm Mini Vibration Motor with Cables

Product Code
:
16625
Brand / Origin
:
China
Quantity
:
100+
Without Vat
:
5.17 TL
Quantity:

-

+

Same Day Shipping
If you purchase before 3pm, your products will ship at the same day. Except saturday and sunday
Add to Favorites
You can add this product on your list and check it later.
Add Comment
Featured Campaigns Related the Product

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Features
  • Payment Options
  • Comments (0)
  • Recommend
  • Images
  • Suggestion Box

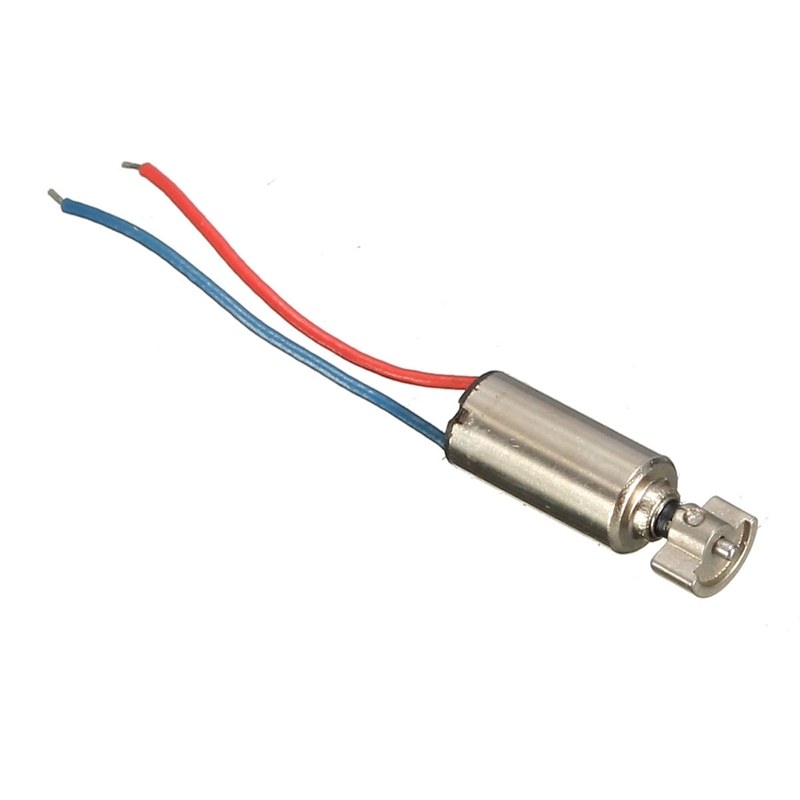

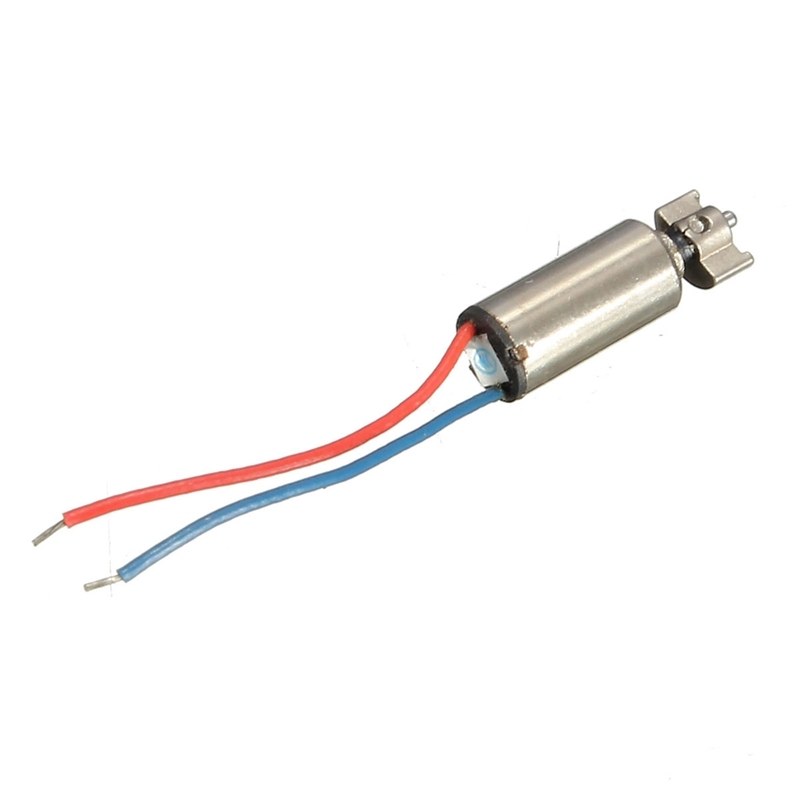

  • This mini vibration motor with the size of 4.5x8mm (11mm from top to bottom) is in various phones and also in products with vibration feature, is vibrate while the loose weight on shaft is turning.
    It can operate with voltage between 1.7V and 3.6V. On 3V voltage it has approximately 12000 Rpm spinning speed and 1.2 gr vibration amplitude.
    Motor has cables on the connectors. Cable lenght is 12mm.

    Features :

    Dimension 4.5 mm x 8 mm
    Weight 1.2 g
    Recomenned operating voltage 1.7 - 3.6 V
    Vibration amplitude on 3V 1.2g
    Speed on 3V 12000 RPM
    Current drawing on neutral on 3V 90 mA
    Starting current on 3 V 120 mA max
    Motor resistance 29 ± 6 Ω
    Operating temperature between -10 ° C and +60 ° C
    Storing temperature between +70 ° C and -30 ° C
