4 Way 12V Relay Module

Product Code
:
13442
Brand / Origin
:
Robotistan
:
Comments (2)
Quantity
:
8
Without Vat
:
53.34 TL
Quantity:

-

+
Buy wholesale for more discount!
Same Day Shipping
Orders placed until 5:00 on weekdays and 10:30 on Saturday are shipped the same day.
Add to Favorites
Click here to add this product to your list and review it later.
Technical Service
We are always with you with our experienced staff and advanced support services.
Refund Guarantee
We carry out the process without upsetting you with a 14-day return guarantee.
Add Comment
  • Features
  • Payment Options
  • Comments (2)
  • Recommend
  • Images
  • Suggestion Box

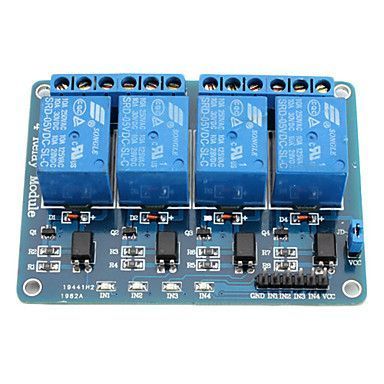

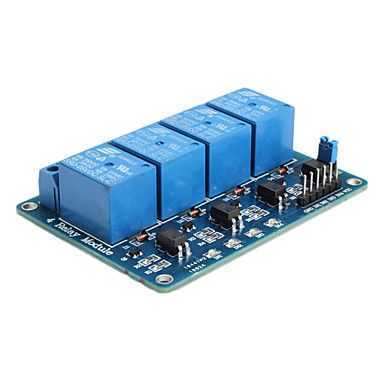

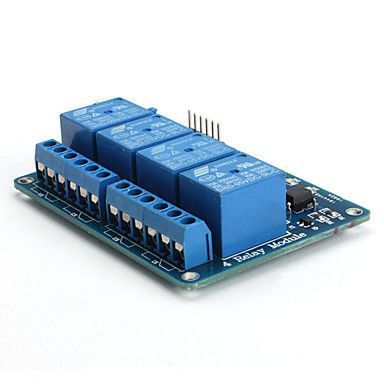

  • 4 Way 12V Relay Module

    4 Way 12V Relay Module is a relay board that you can control it's contacts with 12V via Arduino or another microcontroller board. The relays on the board are relayed by 12V and the board's supply voltage is 12V.

    It draws 20mA of current from microcontroller when triggering. It is used frequently in hobby, industrial and robotic projects.

    It can relay current up to 10A at 30VDC or 220VAC. The board has control LEDs for each relays.

    Relays are triggered with logic 0 (0V).
    Dimensions: 10x7x3 cm
    Weight: 60g

    Arduino example

    Arduino röle kartı bağlantıları

    Documents:
    Features
    Operating Voltage
    :
    12V
