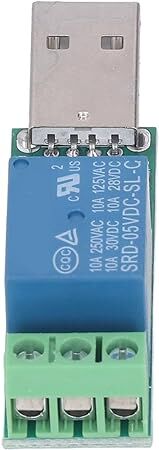

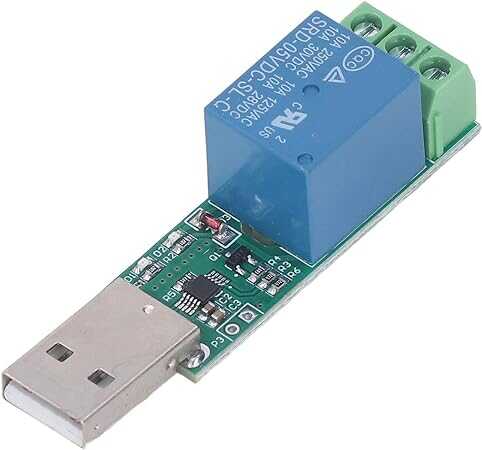

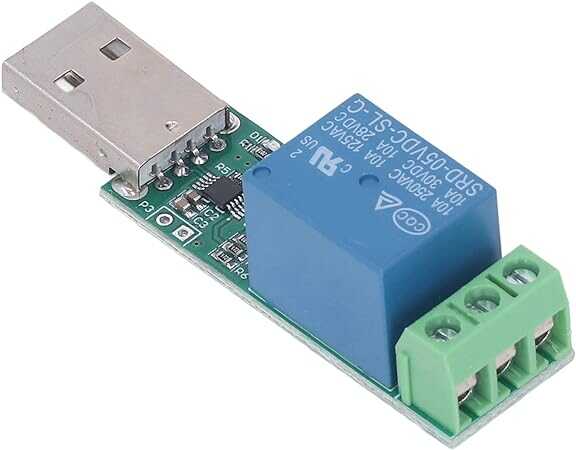

  • 1 Channel 5 V Relay Board - USB Controlled

    1 Channel 5 V Relay Board, It is a relay card that has the ability to control high voltages together with 5VDC voltage. With this relay card, you can easily switch AC and DC currents, and you can easily see the supply and signal statuses on the card thanks to the two indicator LEDs on it. You can also adjust the status of the relay card thanks to the signal you will apply. You can use it with development boards such as the Arduino Uno, and you can also use a lamp, motor, fan and in an application that requires high voltage or current. Also, since it is USB controlled, you can easily control your project on a computer. But it is only suitable for windows programming.

    1 Channel 5 V Relay Board Technical Features;

    • Dimension: 41 x 16 x 16 mm
    • Weight: 12g
    • Supply Voltage: 5V
    • Input Current: ≥ 300mA
    • Contact Type: NC / COM / NO
    • Maximum switching voltage: 250VAC / 30VDC
    • Switching time: 10 ms
    • Operating temperature: -25°C ~ 70°C
