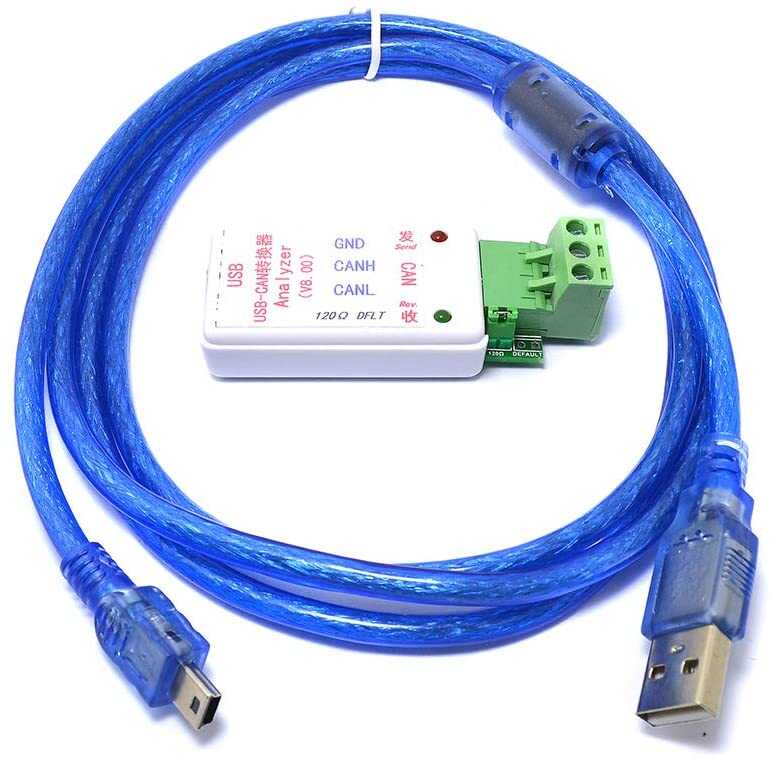

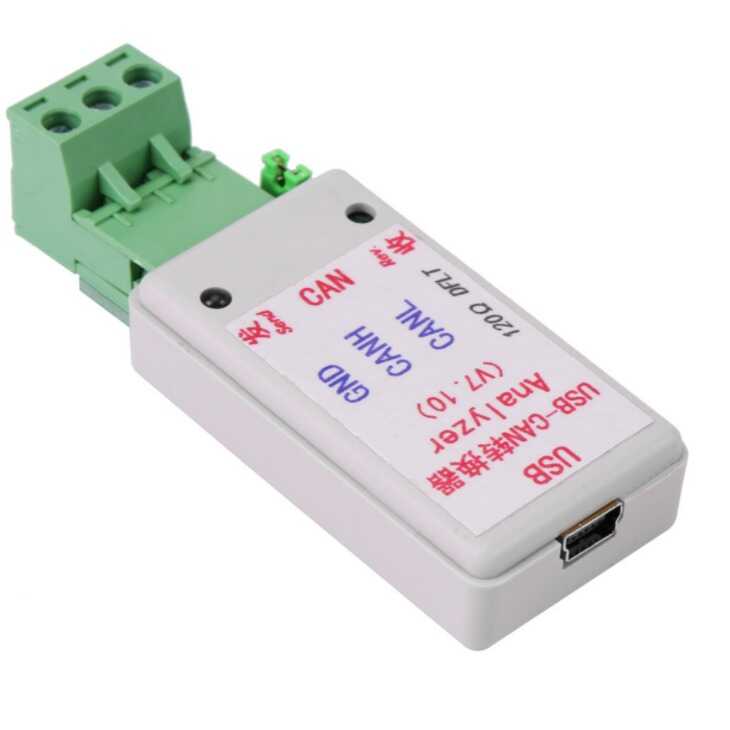

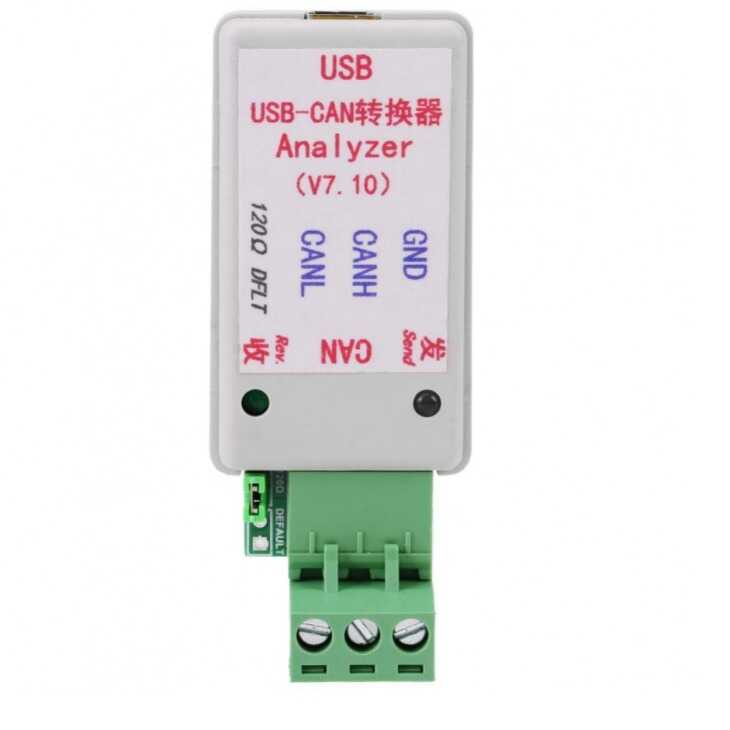

USB to CAN-BUS Converter Adapter

Product Code
:
16990
Brand / Origin
:
China
Quantity
:
10+
Without Vat
:
161.75 TL
Quantity:

-

+

Same Day Shipping
If you purchase before 3pm, your products will ship at the same day. Except saturday and sunday
Add to Favorites
You can add this product on your list and check it later.
Add Comment
Featured Campaigns Related the Product

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Features
  • Payment Options
  • Comments (0)
  • Recommend
  • Images
  • Suggestion Box
  • This product is lower machine using 32-bit high-performance ARM chip development, PC software development based on previous experience of site commissioning CAN communication, as much as possible to achieve a powerful, easy to use.

    Features:
    -Support win7 system, including 64-bit win7, CAN communication support maximum baud rate of 1M.
    -Perfect support for CAN standard frame (2.0A) and extended frame (2.0B) -Send and receive data, set the filtering will Standby function.
    Increased the saved communication data records (TXT and EXCEL in two ways).
    -In addition to sending and receiving data to increase the visual custom baud rate, auto-answer response data, millisecond data, while increasing the multi-frame data transmission options can be edited directly online data, etc., to make debugging easier.
    -The software interface can be switched between Chinese and English.
    -All configurations are automatically saved, the next time you can directly use
    -You can view the CAN bus status manually.
    -You can directly set the ID you want to accept.
    -Four operating modes to choose (Normal mode is mainly used to communicate directly with the CAN device; Loopback mode can be used for self-test converter, in this mode the converter will spontaneously receive, while sending data to the CAN bus; Silent mode can be used to monitor only the CAN bus data without affecting the CAN bus communication; Loopback quiet mode is generally used for thermal test CAN converter.)

    Specifications:

    • Product Name: USB-CAN Bus Converter
    • Model: 532043
    • Color: Grey Converter + Blue Cable
    • Inner Material: Electronic Components
    • Outer Material: Plastic
    • Converter Dimensions: 66x27x9mm(Length x Width x Thickness)
    • Cable Length: 145cm
    • USB Cable: Mini USB

    Package Included:

    • 1 x USB-CAN Adapter
    • 1 x Mini USB Cable
