TIP41C - 6A 115V 65W NPN - TO220 Transistor

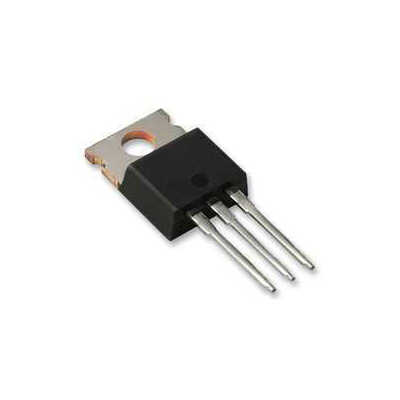

TIP41C – NPN Power Transistor (TO-220)

The TIP41C is an NPN power transistor offered in a TO-220 package, suitable for medium-power linear and switching applications. It is commonly used in audio amplifiers, power regulators, motor driver circuits, and general-purpose switching projects.

TIP41C Technical Specifications:

• Type: NPN silicon power transistor

• Package: TO-220

• Maximum Collector-Emitter Voltage (V_CEO): 100 V

• Maximum Collector Current (I_C): 6 A

• Total Power Dissipation (P_tot, T_C=25 °C): 65 W

• DC Current Gain (h_FE): 15 – 75 (I_C=3 A, V_CE=4 V)

• Saturation Voltage (V_CE(sat)): ≈ 1.5 V (I_C=6 A, I_B=0.6 A)

• Operating Temperature: -65 °C … +150 °C

Useful Documents:

• TIP41C Datasheet (PDF)
