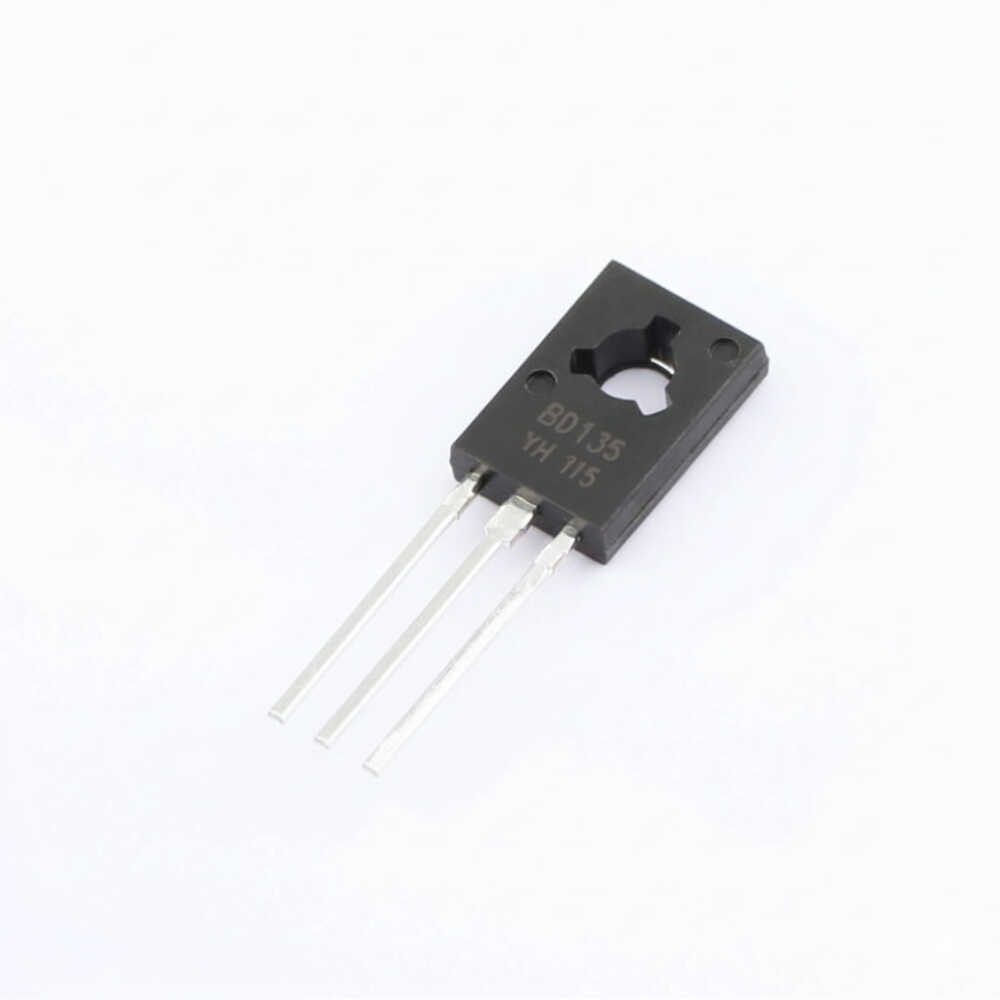

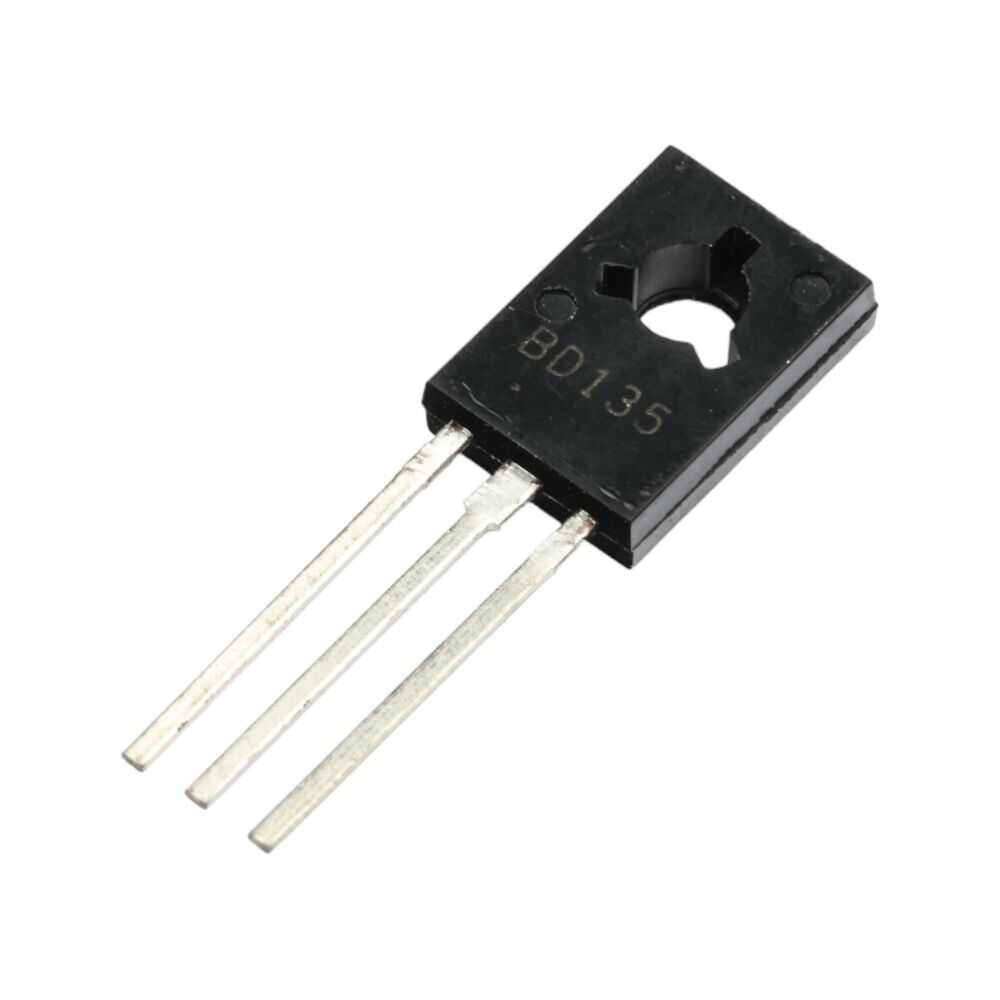

BD13516STU TO-126 NPN Transistor

BD13516STU TO-126 NPN Transistor

The BD13516STU is a general-purpose NPN bipolar power transistor with high current handling capability. Thanks to its TO-126 package structure, it provides efficient heat dissipation in medium-power applications and ensures reliable operation. It is widely used in amplifier circuits, switching applications, and power control systems.

With a collector-emitter voltage rating of 45V and a continuous collector current of 1.5A, it is suitable for both hobby projects and industrial electronic designs. Its low saturation voltage and 50MHz transition frequency make it ideal for applications requiring fast switching and efficient signal processing.

BD13516STU Technical Specifications:

• Transistor type: NPN Bipolar (BJT)

• Package type: TO-126 (Through Hole)

• Maximum collector-emitter voltage (V_CEO): 45V

• Maximum collector-base voltage (V_CBO): 45V

• Emitter-base voltage (V_EBO): 6V

• Continuous collector current (I_C): 1.5A

• Maximum power dissipation (P_C): 1W

• DC current gain (hFE): 100 – 250

• Transition frequency (f_T): 50MHz

• Operating temperature range: -55°C ~ +150°C
