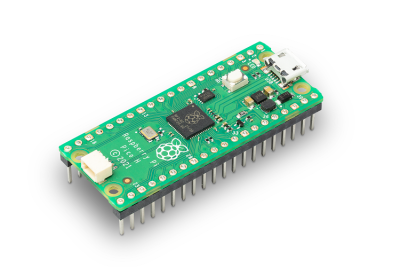

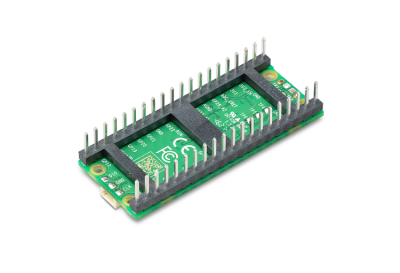

Raspberry Pi Pico H

Raspberry Pi Pico H

Raspberry Pi Pico H is a low-cost, high-performance microcontroller board with flexible digital interfaces. It features the RP2040, which marks Raspberry Pi's first in-house designed microcontroller. Reprogramming the Pico's flash memory can be done using USB or via the Serial Cable Debug (SWD) port. You can also use the SWD port to interactively debug code execution on the RP2040!

Raspberry Pi Pico H Technical Specifications:

• RP2040 microcontroller chip designed by Raspberry Pi
• Dual core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
• 264 kB SRAM and 2 MB onboard flash memory
• Device and host supported USB 1.1
• Low power sleep and sleep modes
• Drag and drop programming using mass storage over USB
• 26 × multi-function GPIO pins
• 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
• Accurate on-chip clock and timer
• temperature sensor
• On-chip floating point libraries
• 8 × Programmable I/O (PIO) state machines for custom peripheral supportri

Raspberry Pi Pico H Dimensions:
