Raspberry Pi Camera Board - 5MP 30cm Hidden Camera

Brand
ODSEVEN
Product Code
22257
Fiyat
: 354.24 TL + VAT
KDV Dahil Fiyat
: 625.13 TL
İndirimli Fiyat
: 425.09 TL
Money Order Price : 412.34 TL %3  Discount
If you order until SHIP TODAY

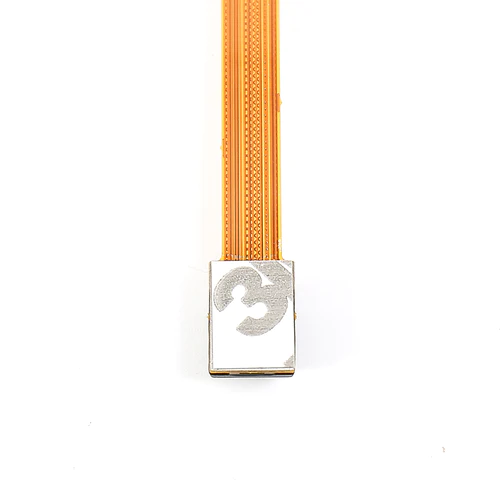

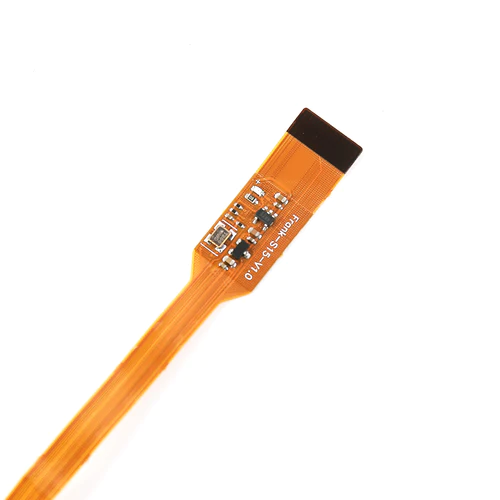

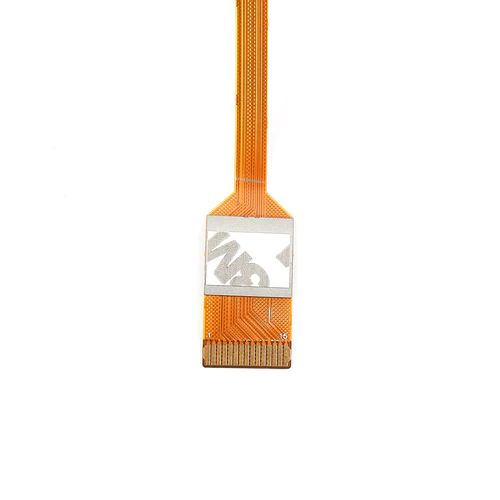

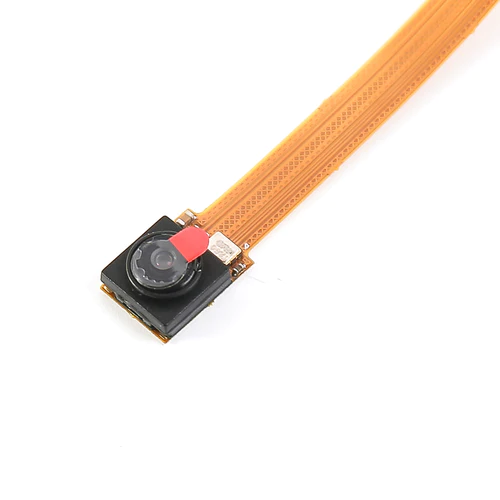

Odseven Raspberry Pi Camera Board - "Spy Camera" (5MP) 30cm



The Odseven Raspberry Pi Camera Card is a 'spy' camera card that holds about cell phone camera with high enough resolution to study people, ghosts or anything visible to the eye. Since they have an adhesive back surface, they can be easily mounted on doorbells, ceiling corners of rooms, chandeliers, and bookcases. It comes with a camera cable so it can be extended or mounted by powering your Raspberry Pi from the camera. The sensor itself has a native resolution of 5 megapixels and a fixed focus lens to the center. In terms of still images, the camera has a static image of 2592 x 1944 pixels and supports 1080p30, 720p60 and 640x480p60/90 video.



It plugs into the Raspberry Pi via one of the two small slots on the top of the board, specifically using it to create distributions with cameras using the custom CSI notation. Thus, the CSI bus has extremely high data rates and contains only pixel observers. The pixel segments with separate cells to the BCM2835 processor on the Pi via the CSI bus with a higher bandwidth connection have the camera back to the processor. This bus runs along the ribbon cable connecting the camera board to the Pi.

Notice: CSI camera port works with Raspberry Pi 3B.



Odseven Raspberry Pi Camera Board Technical Specifications:



  • Sensor: OV5647
  • Megapiksel: 5
  • Pixel Size: 2592 x 1944
  • Pin: 22
  • Peach: 0.5 mm
  • Lens Structure: 4P (650nm)
  • Cable Length: 30 cm
  • EFL: 3.52
  • FNO:2.8
  • FOV: 70 Degrees
  • Output Format: 30 FPS
  • Lens: F2.9
  • DOVDD: 1.7 / 3.3 V
  • DVDD: 1.45 / 1.8 V
  • AVDD: 2.7 / 3.3 V
  • Focal Length: 3.4mm
  • Horizontal Field of View: 53 / 50°
  • Vertical Field of View: 41 / 41°
  • Circuit / Camera Dimensions: 60 x 11.5 x 4.5 mm
