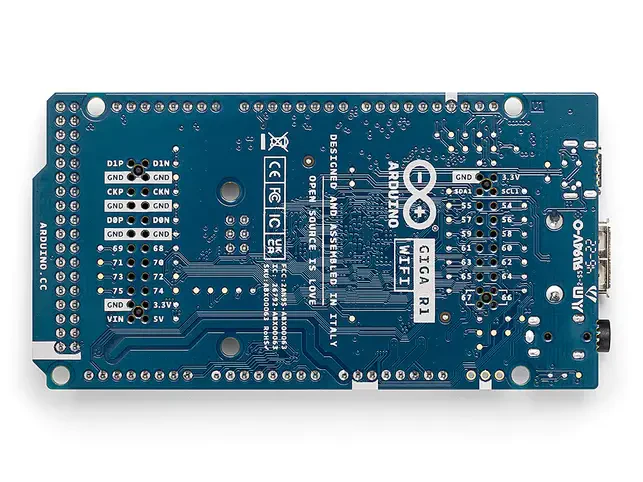

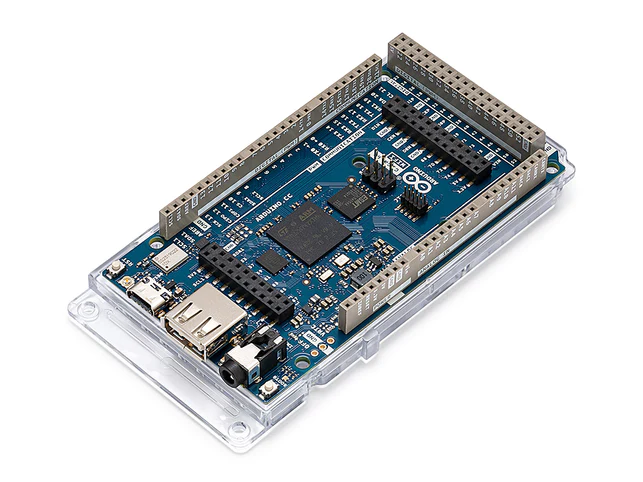

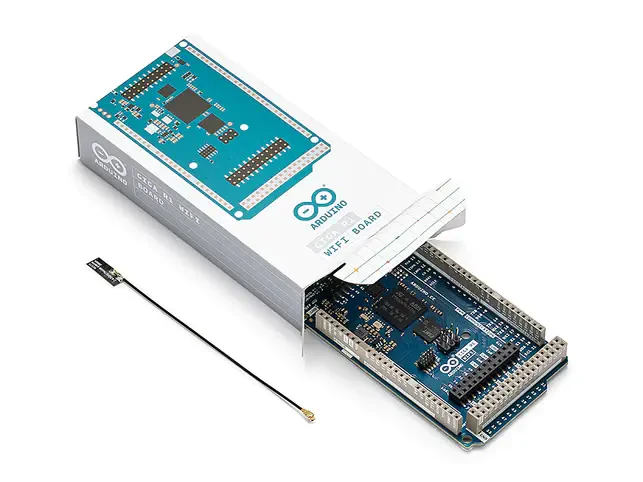

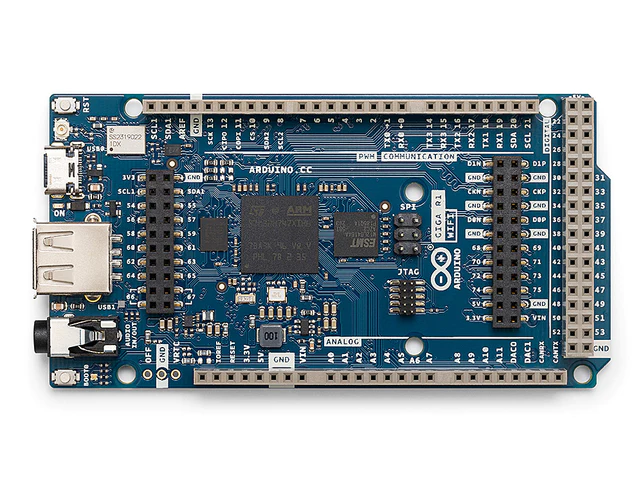

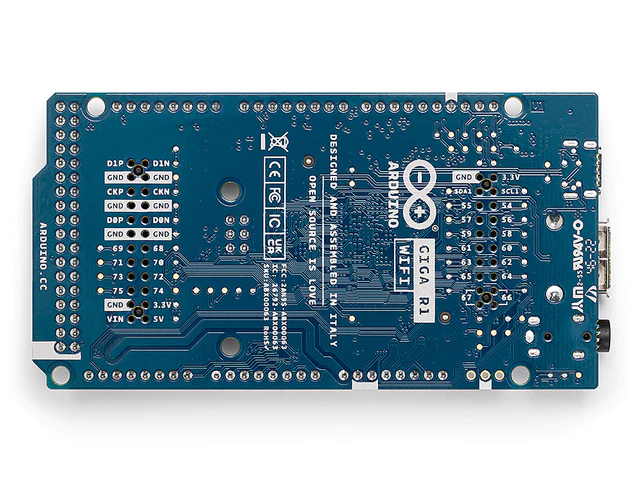

Original Arduino® Giga R1 Wifi

Original Arduino® GIGA R1 WiFi

Arduino® GIGA R1 WiFi is a powerful microcontroller board designed for high-performance electronics, IoT, robotics, audio, image processing, and connected device projects. Based on the Mega form factor, this board offers a flexible development platform for professional projects with its dual-core STM32H747XI microcontroller, Wi-Fi® and Bluetooth® connectivity, extensive pin options, camera connector, display connector, and audio jack.

Arduino® GIGA R1 WiFi combines the classic ease of use of Arduino® with higher processing power, more input/output pins, and advanced peripheral connections. This makes it a powerful foundation for wireless communication, data acquisition, remote control, image processing, audio applications, and advanced automation projects.

Original Arduino® GIGA R1 WiFi Highlights:

• Dual-Core Microcontroller: Offers high processing performance with the STM32H747XI dual Cortex®-M7 + Cortex®-M4 32-bit Arm® MCU.
• Wi-Fi® and Bluetooth® Connectivity: Provides Wi-Fi® 802.11b/g/n and Bluetooth® connection support thanks to the Murata 1DX radio module.
• Extensive Input/Output Options: Offers comprehensive project development possibilities with 76 digital I/O pins, 12 analog input pins, 2 DAC outputs, and PWM pins.
• Advanced Communication Interfaces: Offers 4x UART, 3x I2C, 2x SPI, and CAN support with an external transceiver.
• USB-C® and USB-A Connections: Adapts to different usage scenarios with USB-C® programming connection and USB-A host connection.
• Camera, Display, and Audio Support: Offers a suitable structure for multimedia projects with its camera connector, display connection, and 3.5 mm audio jack.

With Arduino® GIGA R1 WiFi, you can develop internet-connected devices, data acquisition systems, remotely controlled robots, wireless automation projects, image processing applications, and interactive prototypes. Thanks to Arduino® IDE support, you can easily program the board and benefit from the libraries and example projects in the Arduino® ecosystem.

Original Arduino® GIGA R1 WiFi Technical Specifications:

• Microcontroller: STM32H747XI dual Cortex®-M7 + Cortex®-M4 32-bit low-power Arm® MCU
• Radio Module: Murata 1DX dual Wi-Fi® 802.11b/g/n 65 Mbps and Bluetooth®
• Secure Element: ATECC608A-MAHDA-T
• USB: USB-C® programming port / HID and USB-A host connection
• Digital I/O Pins: 76
• Analog Input Pins: 12
• DAC: 2 (DAC0/DAC1)
• PWM Pins: 12
• UART: 4x
• I2C: 3x
• SPI: 2x
• CAN: Yes, requires an external transceiver
• Circuit Operating Voltage: 3.3V
• Input Voltage (VIN): 6-24V
• DC Current per I/O Pin: 8 mA
• Clock Speed: Cortex® M7 480 MHz, Cortex® M4 240 MHz
• Memory: 2 MB Flash, 1 MB RAM
• Dimensions: 53 mm x 101 mm
