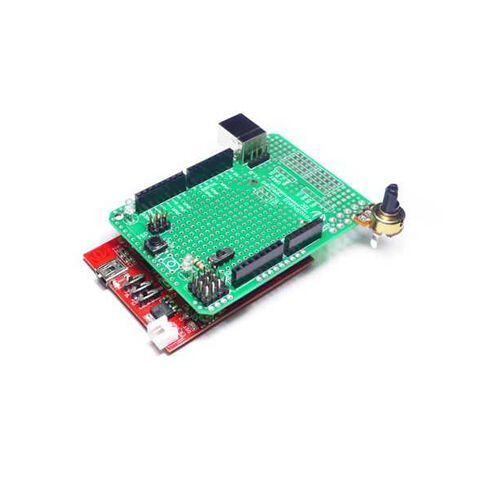

Protoshield Kit for Arduino

Thanks to the Uno ProtoShield Compatible with Arduino kit, you can create your own unique shield and design a special hardware interface to realize your projects with unlimited possibilities.
It has standard pin spacing so that you can start using it in your project immediately by doing the necessary soldering; thus, you can reuse the board by soldering and desoldering pin headers.
With the basic modules and components it contains, you can easily produce your first professional shield without the need for an additional breadboard.

Uno ProtoShield Compatible with Arduino Package Contents:

• 1 x Proto Circuit Board Compatible with Arduino®
• 1 x Type B USB Female Socket
• 1 x 40-Pin 2.54 mm Long Male Header
• 1 x 40-Pin 2.54 mm Female Header
• 2 x 40-Pin 2.54 mm Male Header
• 1 x 40-Pin 2.54 mm Standoff
• 3 x 8-Pin 2.54 mm Female Header
• 1 x 6-Pin 2.54 mm Female Header
• 1 x ISP Female Pin Header
• 1 x ISP Male Pin Header
• 1 x 10K Ohm Potentiometer
• 4 x 1K Ohm Resistor
• 2 x 10K Ohm Resistor
• 2 x 3 mm Red LED
• 2 x 3 mm Green LED
• 1 x 3 mm Bi-Color LED
• 4 x Mini Push Button
• 2 x 3-Pin Switch

Products That Can Be Used Together:

• UNO R3 Development Board Compatible with Arduino
• Other Shield Types Compatible with Arduino
• Super Soldering Kit
• Solder Wire Types
• Desoldering Braid / Wick

Uno ProtoShield Compatible with Arduino Technical Specifications:

• Compatibility: Fully compatible with the Arduino® UNO form factor.
• Wide Range of Uses: Offers comfortable soldering and flexible prototyping thanks to standard pin spacing.
• Flexibility: Contains various pin holes (solder pads) to be compatible with almost all standard electronic components.
• Port Support: UART and I2C communication pins are brought out, allowing you to easily plan external connections.
• ISP Pins: Dual ISP pins can be used for stacking shields end-to-end.
• Power Lines: 3.3V, 5V, and GND (ground) lines are accessible from everywhere on the circuit board.
• Design: Has a breadboard-type standard prototyping structure.
• Connection: Features a USB Type B output socket slot.
• Components: Some basic components (buttons, switches, LEDs, resistors, female USB jack, etc.) are included unassembled in the kit, allowing you to practice soldering.

Documents & Useful Links:

• Product Reference Page for Detailed Information (Wiki)
• Step-by-Step Soldering Guide
• Board Schematic (Eagle Drawing File)
