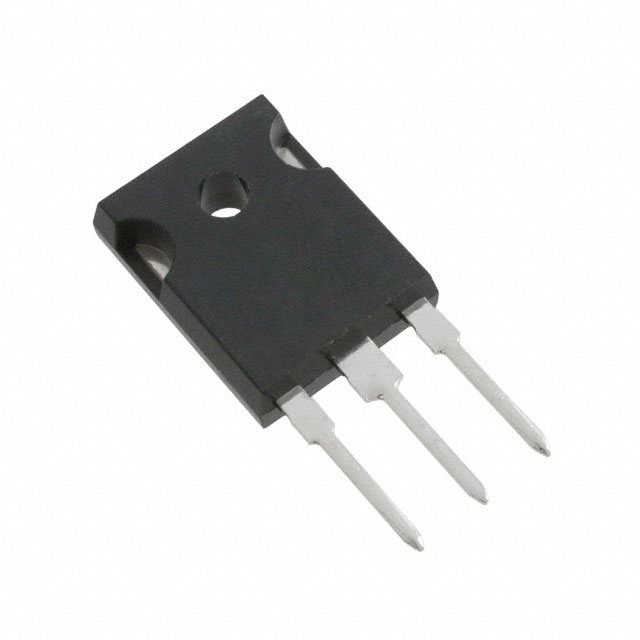

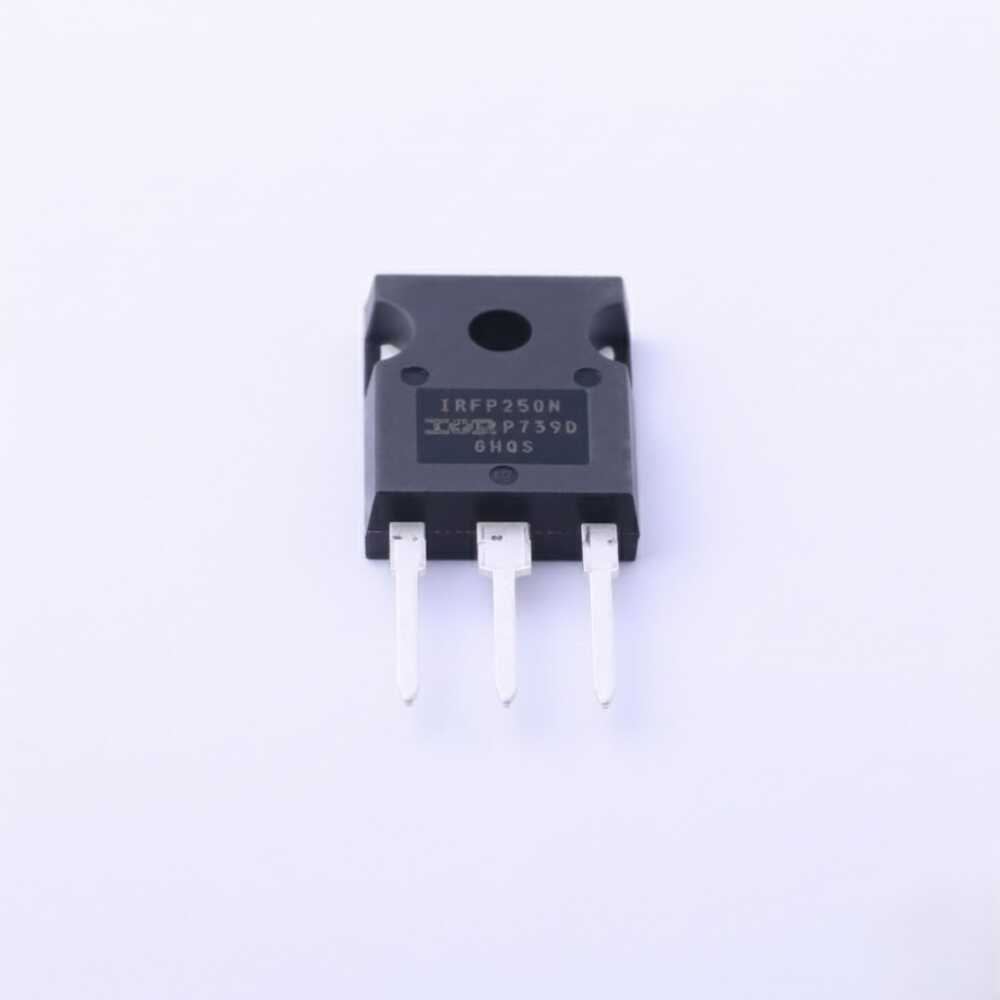

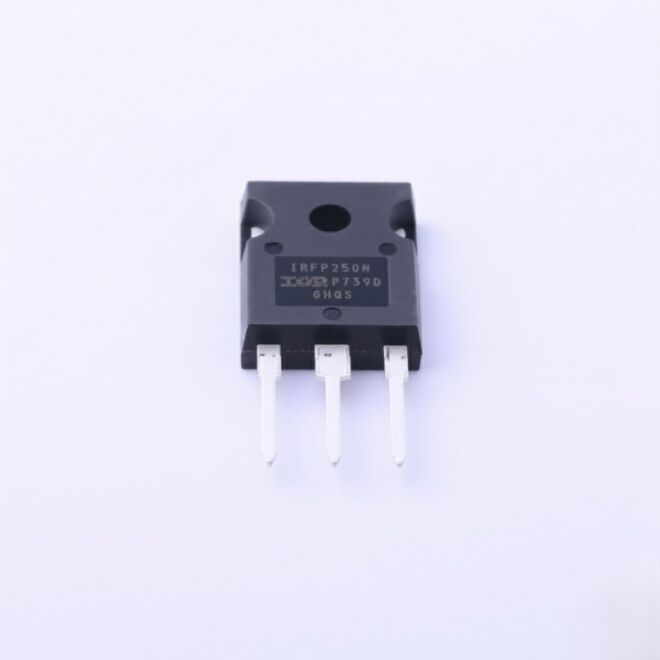

IRFP250N - 30A 250V MOS-N-FET - TO247 Mosfet

IRFP250N - 30A 250V N-Channel MOSFET TO-247

The IRFP250N is a high-current, high-voltage N-channel power MOSFET designed for efficient power switching applications. With low on-resistance (R_DS(on)) and fast switching characteristics, it is widely used in power electronics, motor drivers, inverters, and SMPS (Switch Mode Power Supplies). The TO-247 package provides excellent heat dissipation and ensures reliable performance even under demanding operating conditions.

IRFP250N - 30A 250V N-Channel MOSFET Specifications:

• Transistor type: N-channel MOSFET

• Maximum drain current (I_D): 30A

• Maximum drain-source voltage (V_DS): 250V

• On-resistance (R_DS(on)): 0.085Ω (typical)

• Gate threshold voltage (V_GS(th)): 2V – 4V

• Total power dissipation: 190W (at 25°C)

• Operating temperature range: -55°C to +175°C

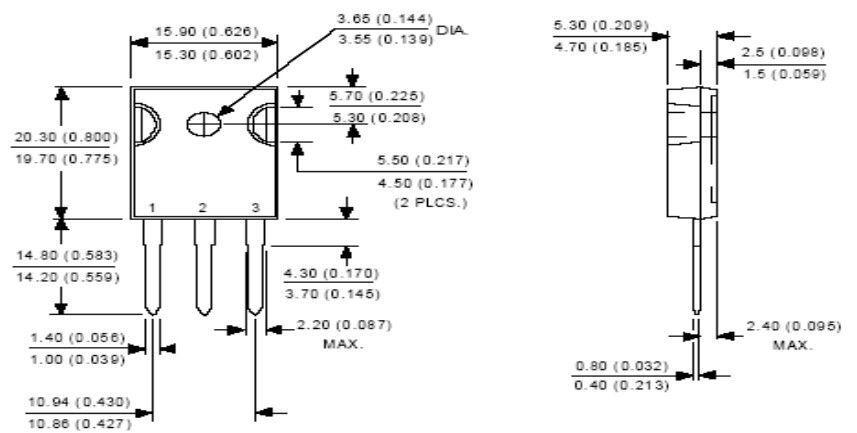

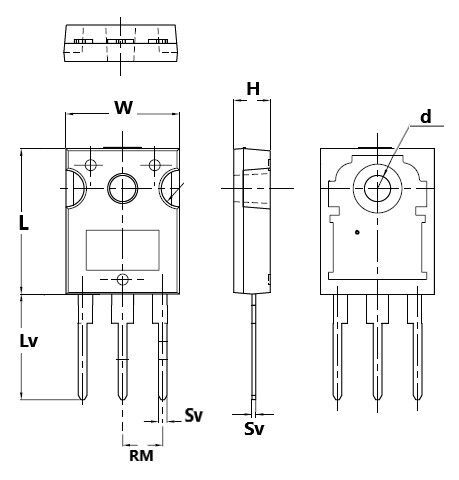

• Package type: TO-247

• Applications: Motor drivers, power supplies, DC-DC converters, inverter circuits

Useful Documents:

• IRFP250N Datasheet
