IRFP250N - 30A 200V MOS-N-FET - TO247 Mosfet

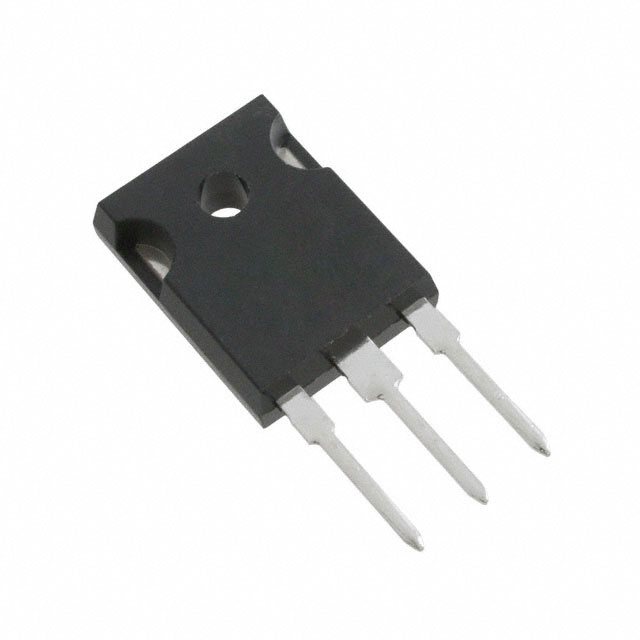

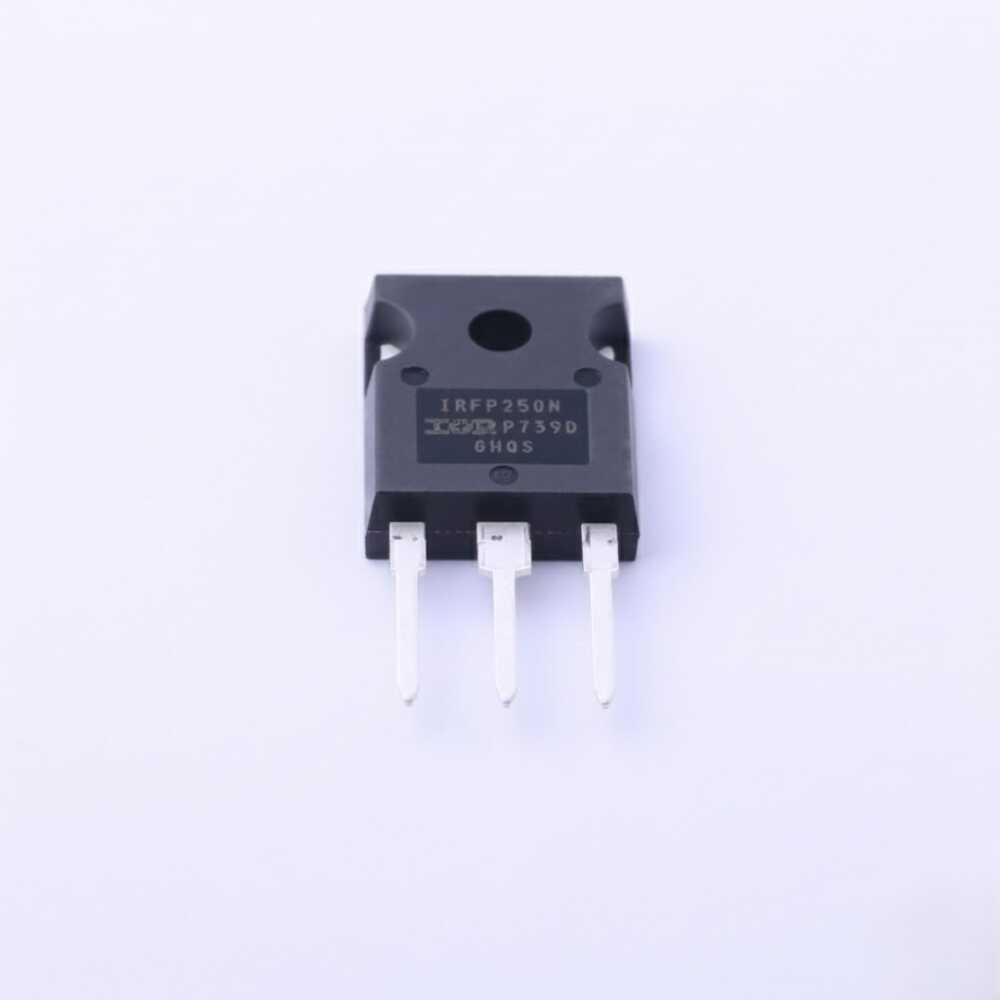

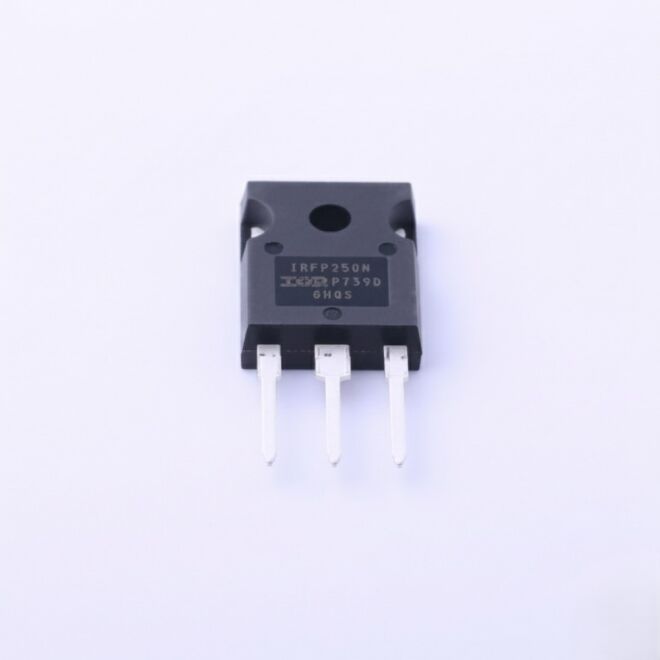

IRFP250NPBF – 30A 200V N-Channel MOSFET TO-247

IRFP250NPBF is an N-channel HEXFET® power MOSFET manufactured by International Rectifier. With a 200V drain-to-source voltage rating and a continuous drain current capacity of 30A, it is widely used in motor drivers, inverters, switched-mode power supplies (SMPS), and industrial power applications. The TO-247 package provides high power dissipation capability and efficient thermal management. The “PBF” suffix indicates that the device is lead-free (RoHS compliant), with no difference in electrical characteristics compared to the IRFP250N.

IRFP250NPBF Technical Specifications:

• Transistor Type: N-Channel Power MOSFET (HEXFET®)

• Maximum Drain-to-Source Voltage (V_DS): 200V

• Continuous Drain Current (I_D): 30A (V_GS=10V, 25°C)

• Pulsed Drain Current (I_DM): 120A

• Drain-to-Source On-Resistance (R_DS(on)): 0.075Ω (V_GS=10V, typical)

• Gate Threshold Voltage (V_GS(th)): 2V – 4V

• Maximum Power Dissipation: 214W (at 25°C)

• Operating Temperature Range: -55°C to +175°C

• Package Type: TO-247AC

• Applications: Motor drivers, inverters, SMPS, power switching circuits

Useful Documents:

• IRFP250N / IRFP250NPBF Official Datasheet (International Rectifier)
