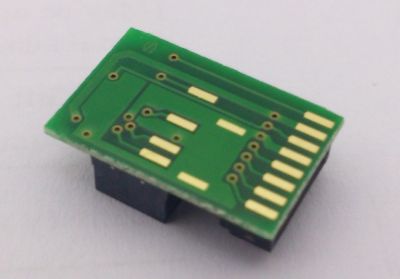

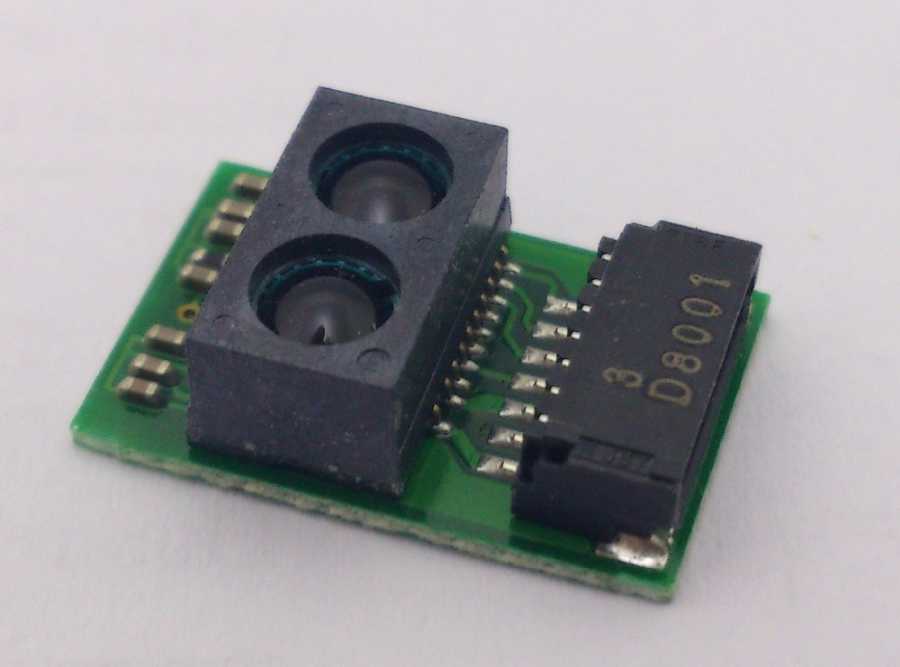

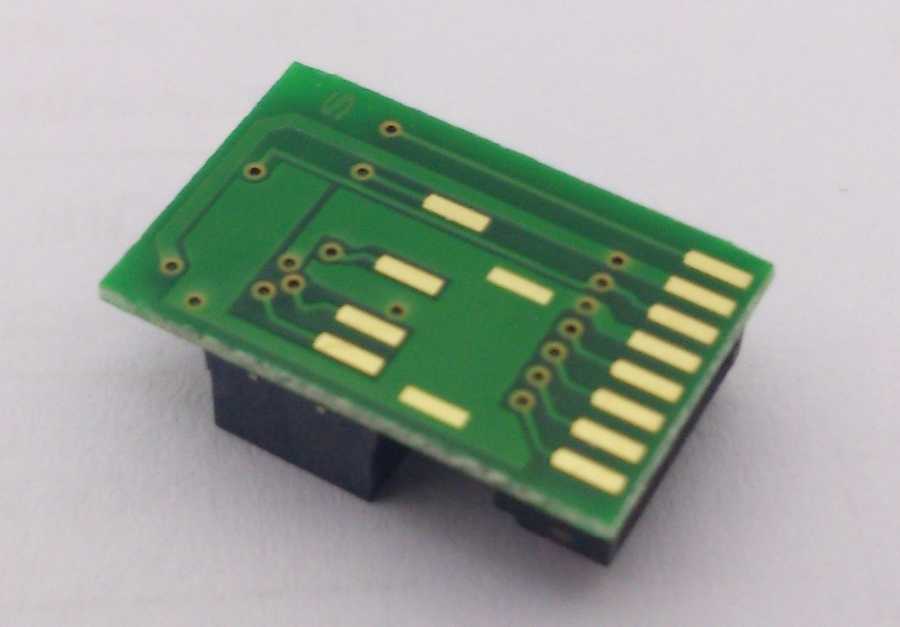

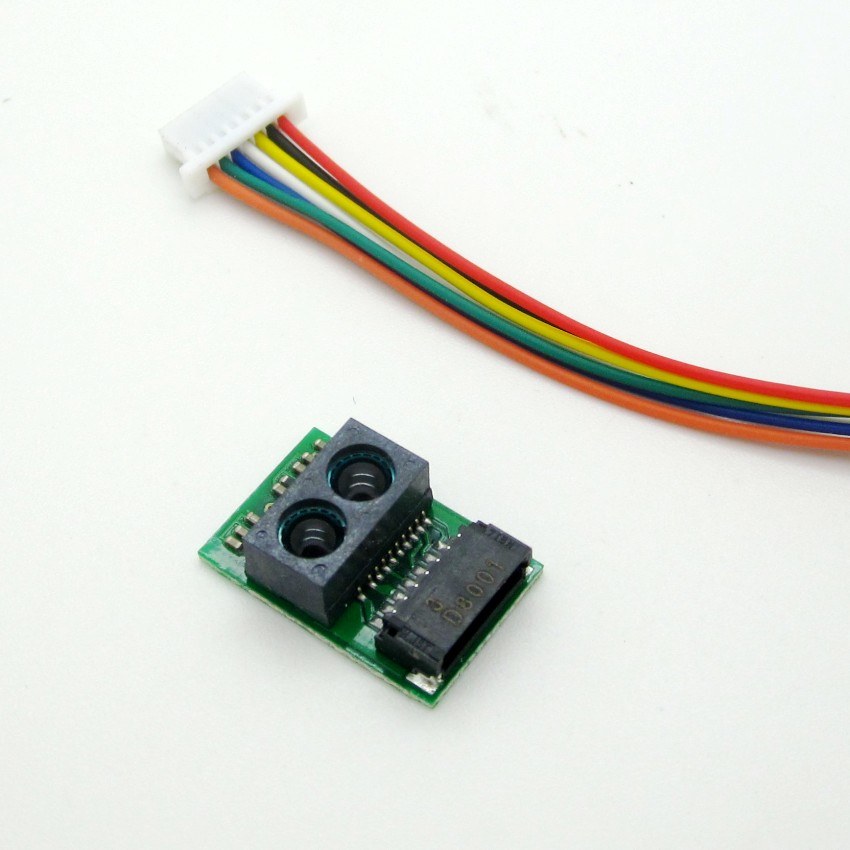

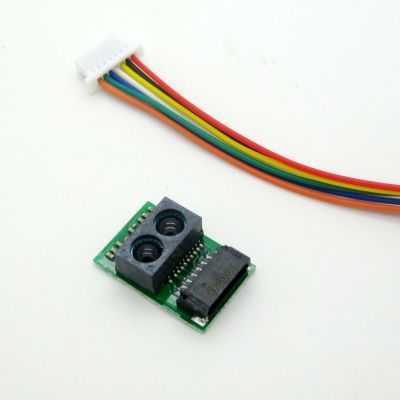

GP2Y0E03 4-50Cm Infrared Sensor- I2C Output

Product Code
:
17130
Brand / Origin
:
China
Quantity
:
10+
Without Vat
:
31.91 TL
Quantity:

-

+

Same Day Shipping
If you purchase before 3pm, your products will ship at the same day. Except saturday and sunday
Add to Favorites
You can add this product on your list and check it later.
Add Comment
Featured Campaigns Related the Product

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Features
  • Payment Options
  • Comments (0)
  • Recommend
  • Images
  • Suggestion Box
  • The GP2Y0E03 is a distance measuring sensor unit, composed of an integrated combination of CMOS image sensor and IR-LED. The variety of the reflectivity of the object, the environmental temperature and the operating duration are not influenced easily to the distance detection because of adopting the triangulation method. This device outputs the distance as digital (I²C) data. So this sensor can also be used as a proximity sensor.

    Features:

    • Infrared LED and CMOS image sensor with built-in signal processing circuit
    • Distance measuring range : 4 to 50 cm
    • Low voltage operation : Min 2.7V
    • Compact size (16.7 × 11.0 × 5.2mm)
    • High-precision measurement
    • Digital(I²C) / Analog output type

    Specifications:

    • Current - Supply:36mA
    • Operating Temperature:-10°C ~ 60°C (TA)
    • Output Type:I²C
    • Sensing Distance:4 ~ 50cm


    Datasheet
