Benewake TFA300 Series Medium-to-Long Range Lidar Sensor

Benewake TFA300 Series Medium-to-Long Range Lidar Sensor

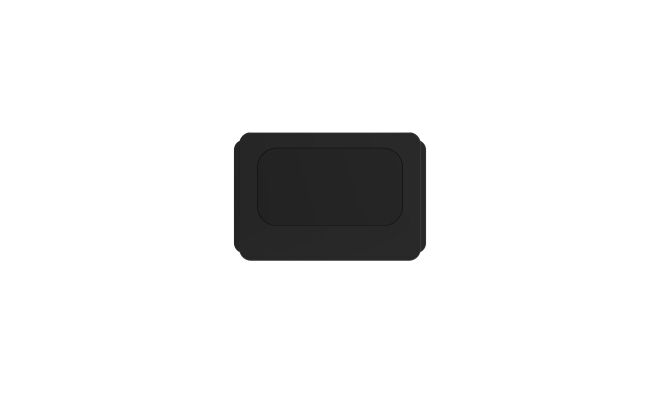

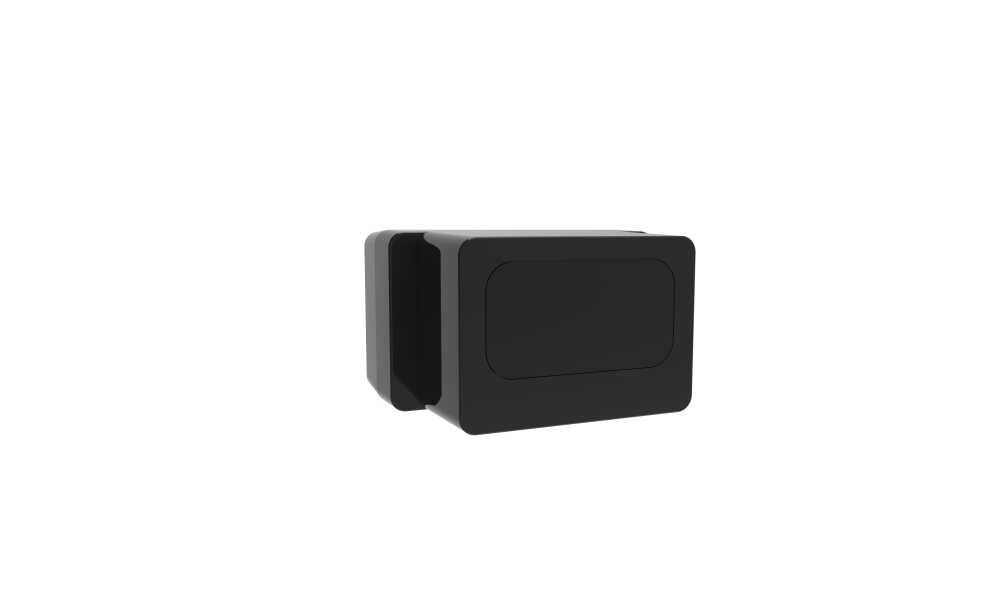

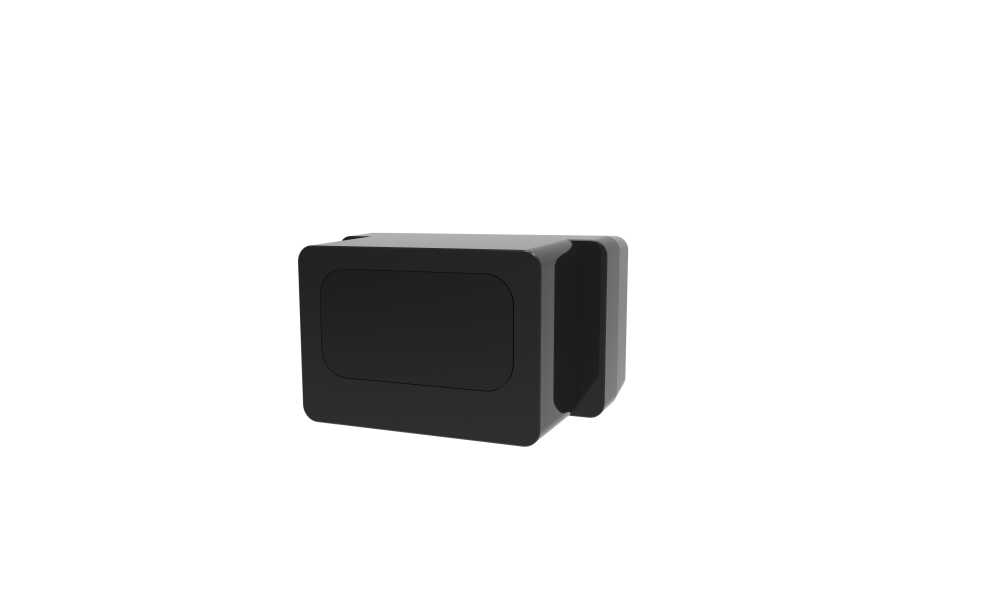

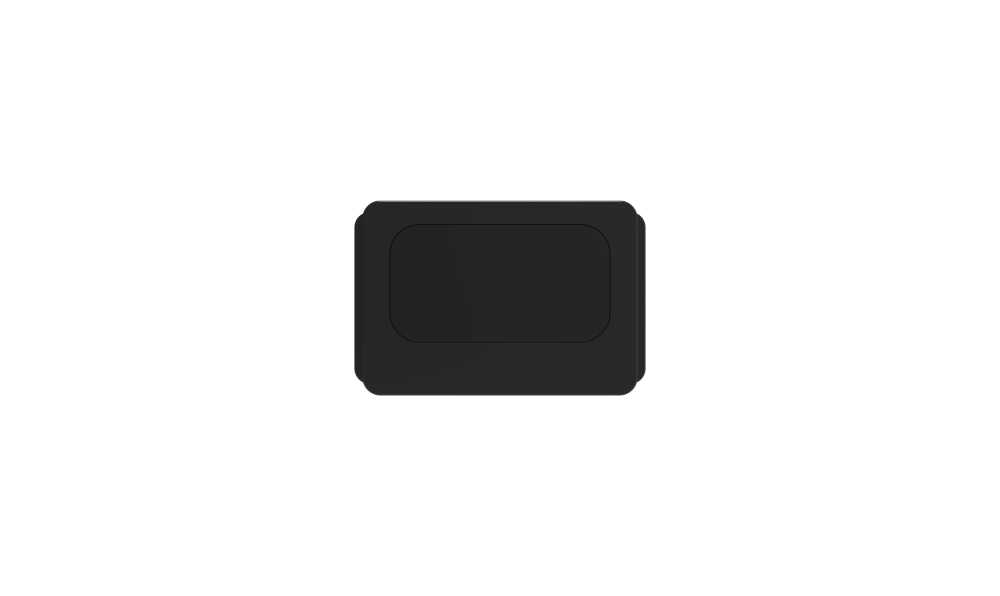

The Benewake TFA300 series is a single-point lidar sensor family designed with a compact and lightweight form. It includes two versions: the TFA300 with IP67 protection and the ultra-lightweight, enclosure-free TFA300-L. It supports dual communication protocols (UART and CAN) and offers multiple built-in working modes configurable for different applications.

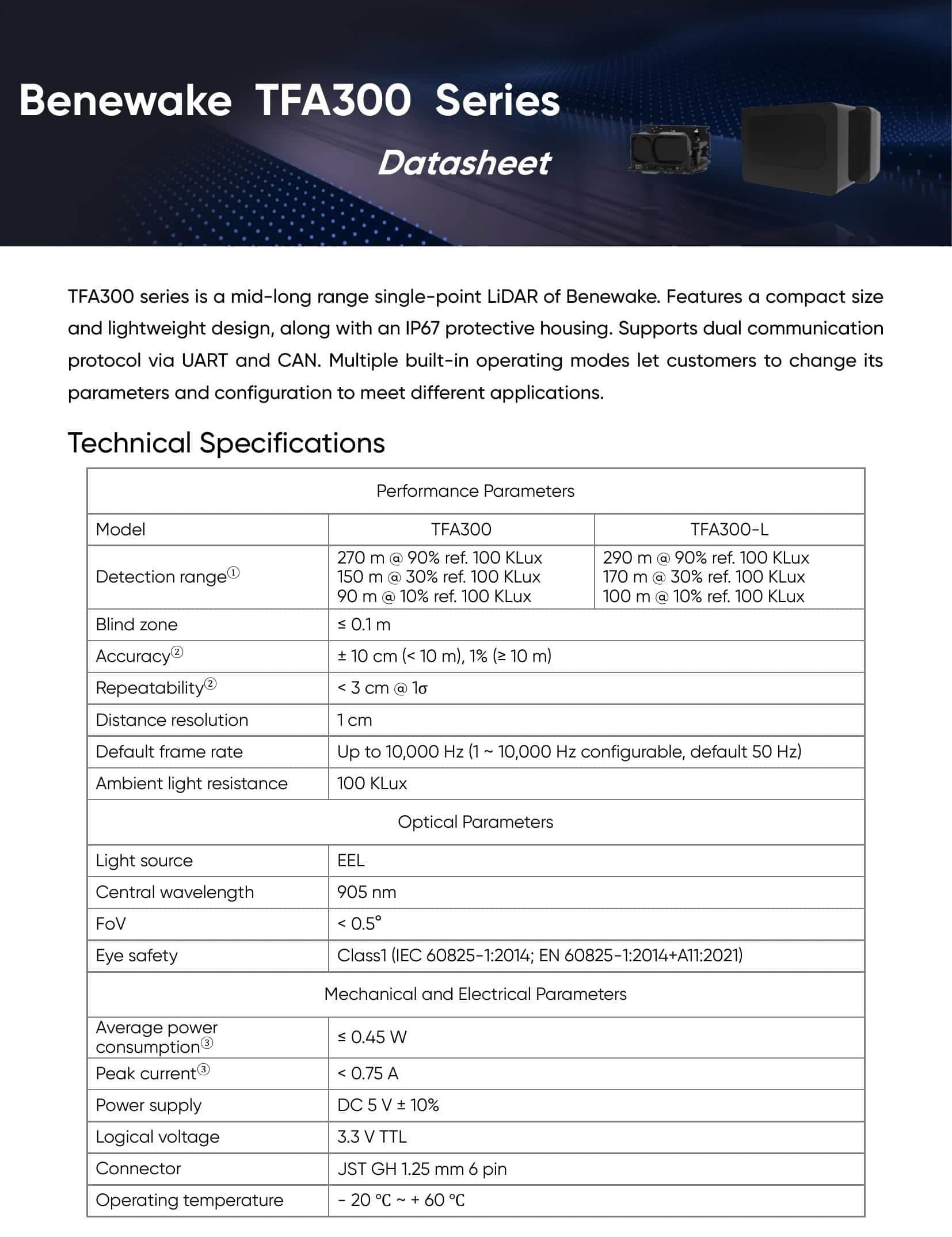

Technical Specifications:

• Detection Range (TFA300-L): 290 m (90% reflectivity), 170 m (30%), 100 m (10%)
• Blind Zone: ≤ 0.1 m
• Accuracy: ±10 cm (<10 m), 1% (≥10 m)
• Repeatability: < 3 cm @ 1σ
• Resolution: 1 cm
• Frame Rate: 1 ~ 10,000 Hz (default 50 Hz)
• Light Source: EEL, 905 nm
• Field of View (FoV): < 0.5°
• Eye Safety: Class 1 (IEC 60825-1:2014)
• Power Consumption: ≤ 0.45 W (average)
• Power Supply: DC 5V ±10%
• Connector: JST GH 1.25 mm 6-pin
• Operating Temperature: -20°C ~ +60°C
• Storage Temperature: -40°C ~ +80°C
• Protection Rating: IP67 (TFA300)

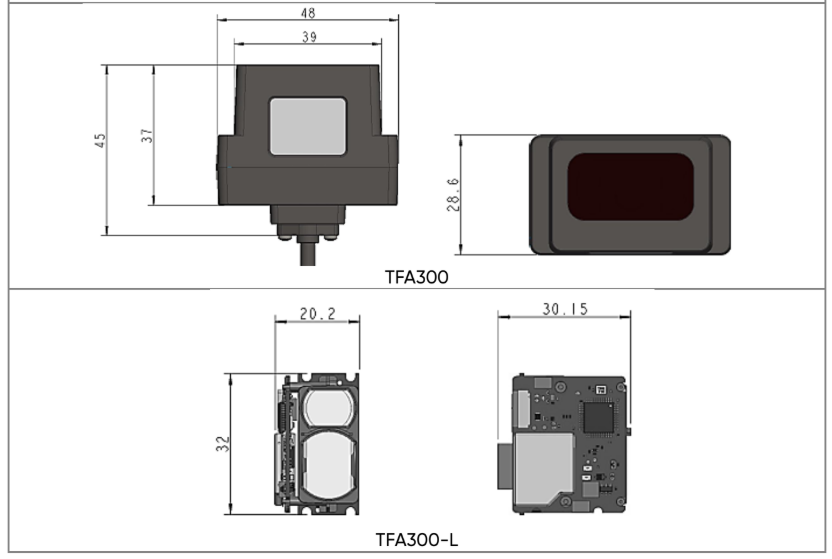

• Dimensions: TFA300 - 48x37x28.6 mm, TFA300-L - 32x30.2x20.2 mm
• Weight: TFA300 - 34.5 g, TFA300-L - 10.5 g

Communication Features:

• Protocols: UART / CAN (switchable by command)
• Baud Rate: 115200 (adjustable)
• Data Bits: 8, Stop Bits: 1, Parity: None
