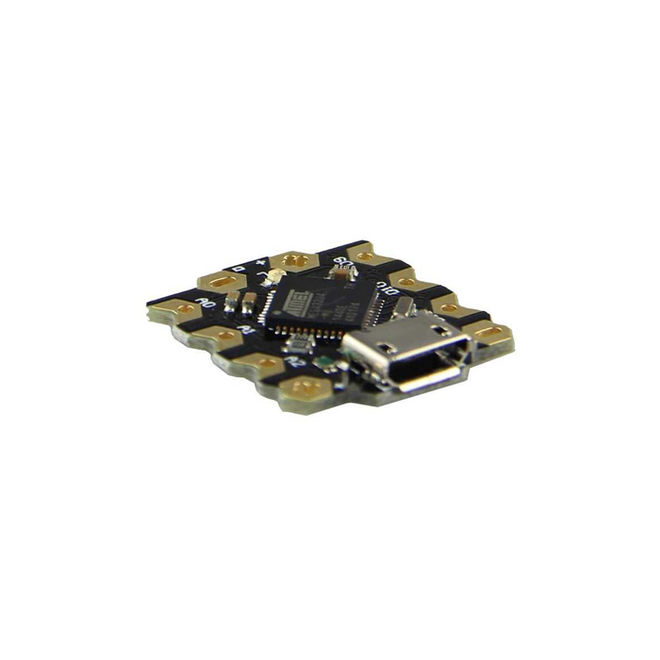

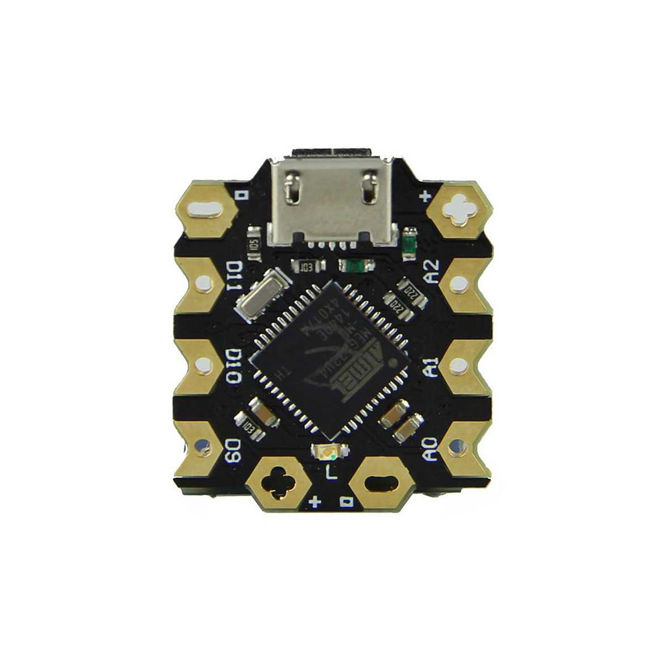

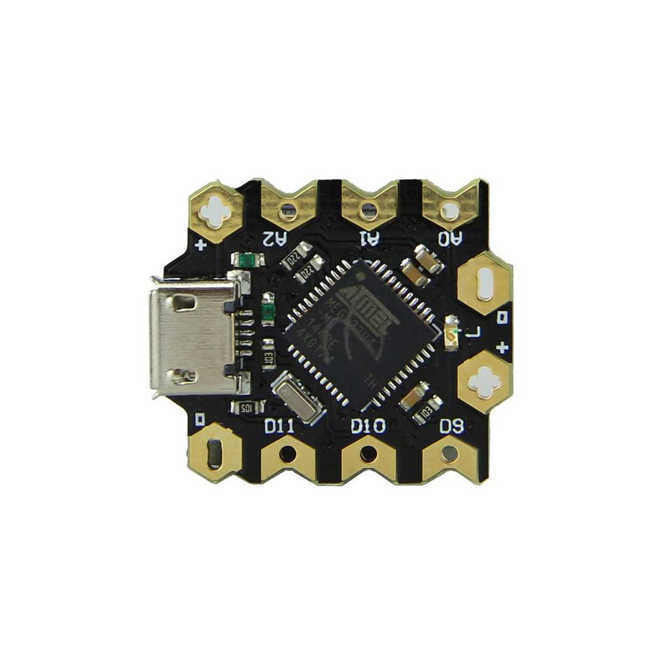

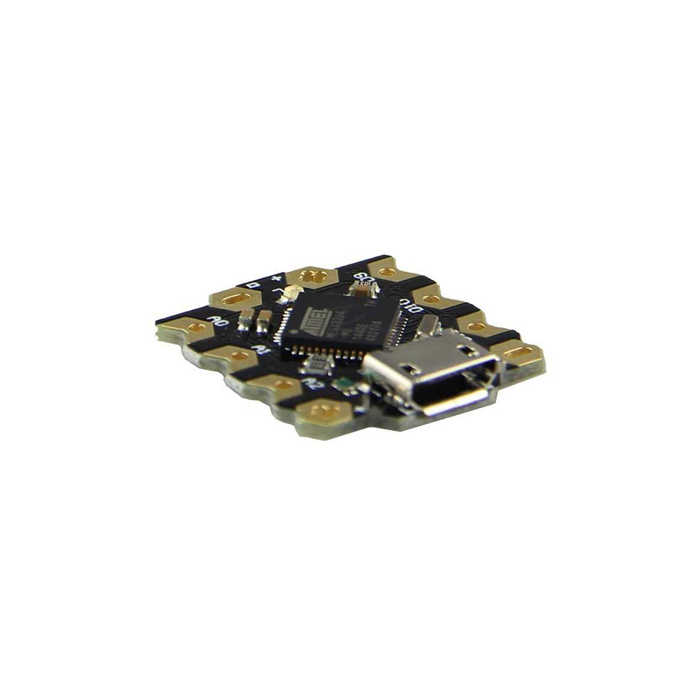

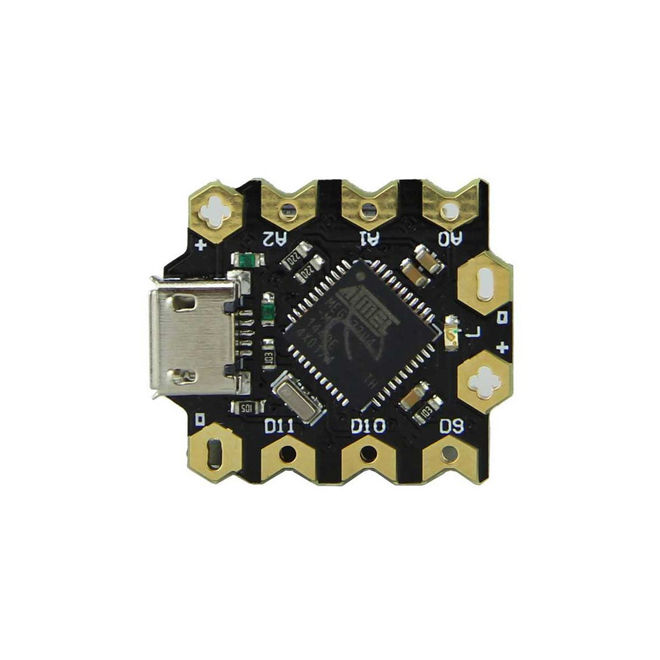

The Beetle development board is an extremely compact development board that adopts the core idea of minimalism without compromising functionality, and is compatible with the Arduino® Leonardo design.

It comes with an ATmega32U4 (ATmega32U4 Datasheet) microcontroller running at a 16 MHz clock speed and offers a wide range of interfaces compared to its size: 10 digital pins, 5 analog pins, and 4 PWM pins.
Thanks to its user-friendly structure, it allows direct programming and testing via Micro USB.
When you select the Arduino® Leonardo board on the Arduino® IDE, you can easily upload your new codes without needing an extra programmer, thanks to the pre-loaded bootloader.

As the smallest board compatible with Arduino® Leonardo, it possesses powerful functions similar to the original model.
With its low cost and ease of use, the Beetle is a great solution for do-it-yourself (DIY) projects, workshops, gift projects, E-Textiles (wearable technology), and education-focused single-use projects.
It is an excellent alternative for students and Makers who cannot allocate a large budget for hardware purchases.

From left to right: DFRduino Leonardo, Nano, Nova, and Beetle

Note: DFRobot has also released Beetle BLE, a new version of this board with Bluetooth 4.0 (BLE) capabilities. The related product is one of the smallest BLE-enabled compatible boards on the market.

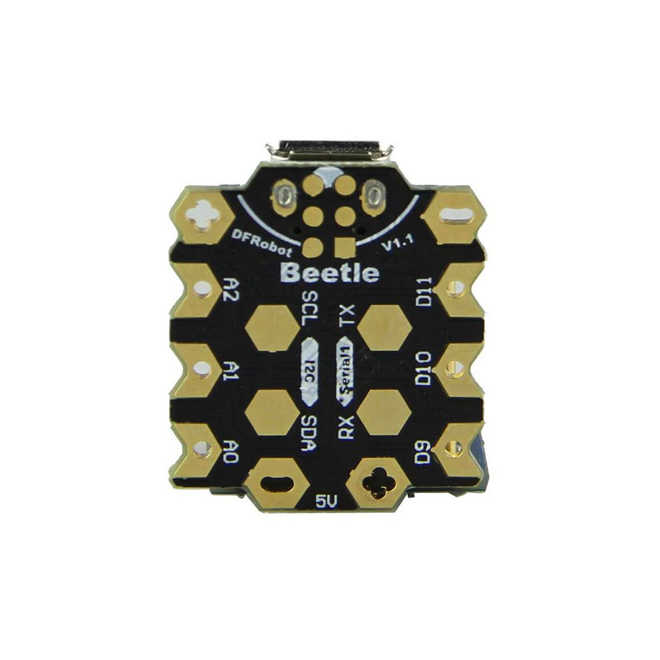

Beetle Development Board Design Features:

• Extremely compact size of 20 mm x 22 mm
• Ability to download programs and test directly via Micro USB
• Large V-shaped gold-plated power ports that make it easier for the user to wrap wires around and can be sewn directly onto clothes with conductive thread
• Two hexagonal gold-plated extra power interfaces
• Stylishly designed light blue LED indicator

Beetle Development Board Technical Specifications:

• Microcontroller: ATmega32U4
• Clock Speed: 16 MHz
• Operating Voltage: 5V DC
• Digital I/O Pins: 10
• PWM Channels: 4
• Analog Input Channels: 5
• UART: 1
• I2C: 1
• Micro USB: 1
• Power Ports: 2
• Flash Memory: 32 KB (4 KB of which is used by the bootloader)
• SRAM: 2.5 KB
• EEPROM: 1 KB
• Dimensions: 20 mm x 22 mm x 3.8 mm

Package Contents:

• 1 x Beetle Development Board

Sample Projects That Can Be Done with the Beetle Development Board:

Project 1: How to Make Musical IQ LED Lights?
Project Introduction: A stylish lighting project that works sensitive to sound using an individually addressable LED strip.
Materials You Need:

• 1 x Audio Analyzer Module
• 2 x Analog Sound Sensor
• 1 x RGB Individually Addressable LED Strip
• 1 x Beetle Development Board

Project 2: How to Make Programmable Fiber Optic Fairy Wings?
Project Introduction: Create your own glowing fairy wings with a few electronic components. A great guide especially for costume (cosplay) designers.
Materials You Need:

• 1 x Digital RGB LED Weatherproof Strip (60 LEDs)
• 1 x Beetle Development Board

Project 3: Do It Yourself (DIY) Deer Clock
Project Introduction: A desk clock that shows the time in a cute way. The LED matrix display gives the product a very cool look.
Materials You Need:

• 1 x Gravity: I2C SD2405 RTC (Real-Time Clock) Module
• 1 x Beetle Development Board
• 1 x FireBeetle Compatible 24x8 LED Matrix (White)
• 1 x Micro USB Cable

Project 4: Running T-Shirt with Heart Rate Alarm
Project Introduction: A wearable technology project integrated into a running t-shirt that vibrates to warn you when your heart rate gets too high.
Materials You Need:

• 1 x Beetle Development Board
• 1 x Vibration Motor Module
• 1 x Heart Rate (Pulse) Sensor

Project 5: Making a Glowing Dice to Monitor Battery Capacity
Project Introduction: Track your battery level visually with a great dice design.
Materials You Need:

• 1 x Gravity: I2C 3.7V Lithium Battery Fuel Gauge
• 1 x Beetle Development Board
• 1 x Single-Sided ProtoBoard (Flexible PCB)
• 21 x LED Bead Lamp
• Crystal Epoxy Resin and dyes

Project 6: Wristband with BMI160 Motion Sensor (Pedometer)
Project Introduction: A smart wristband (pedometer) application that counts steps taken using a 6-axis sensor.
Materials You Need:

• 1 x Gravity: I2C BMI160 6-Axis Inertial Motion Sensor
• 1 x Beetle Development Board
• 1 x Gravity: I2C OLED-2864 Display
• 1 x 3.7V Mini Lithium Battery
• 2 x Button
• 1 x Toggle Switch
• 1 x Watch Strap

Project 7: Light of the World - 3D Printed Interactive Lamp
Project Introduction: A gyroscope and accelerometer-based 3D printed lamp whose light can be turned on by tapping the table or shaking.
Materials You Need:

• 1 x Gravity: I2C BMI160 6-Axis Motion Sensor
• 1 x Beetle Development Board
• 1 x 3.7V Lithium Battery Charger and 3.7V Battery
• 10 x Piranha LED Bead
• Various paints and building materials (Acrylic, wire, screws, etc.)

Project 8: Smart Rabbit Hat (Based on EMG Sensor)
Project Introduction: Making a cute and interactive rabbit hat whose ears move by detecting muscle movements.
Materials You Need:

• 1 x Gravity: OYMotion Analog EMG Sensor
• 1 x Beetle Development Board
• 1 x Lithium Battery Charger and 3.7V Lithium Battery
• 2 x 9g 180° Micro Servo Motor
• 1 x Rabbit Hat
• Switch, elastic band, hot glue, and sewing materials
