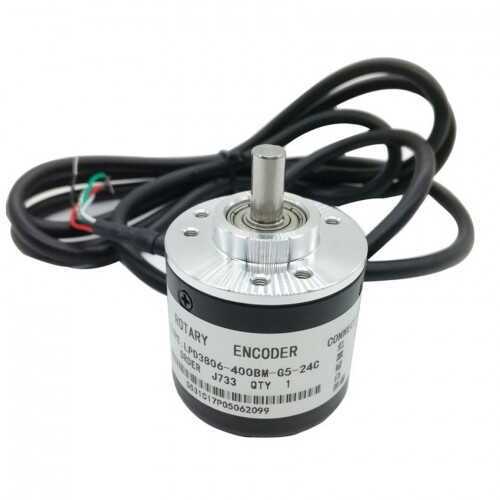

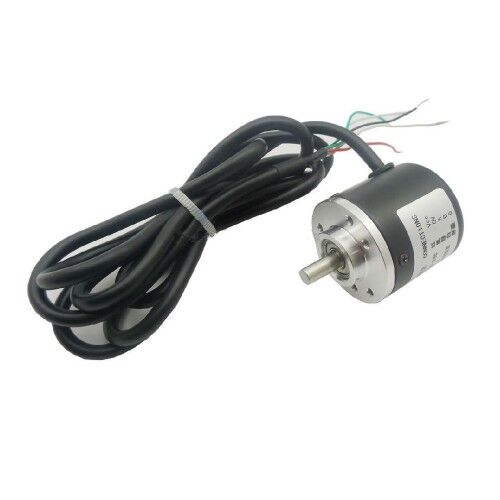

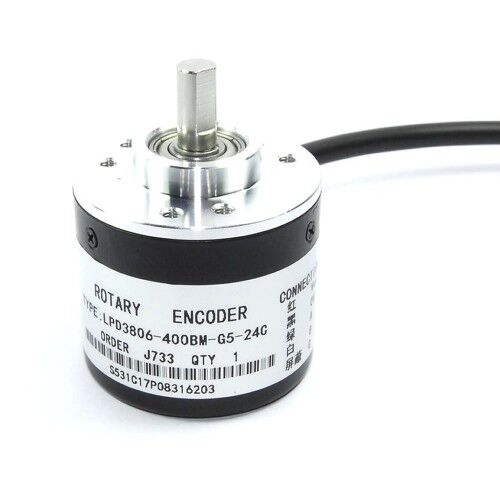

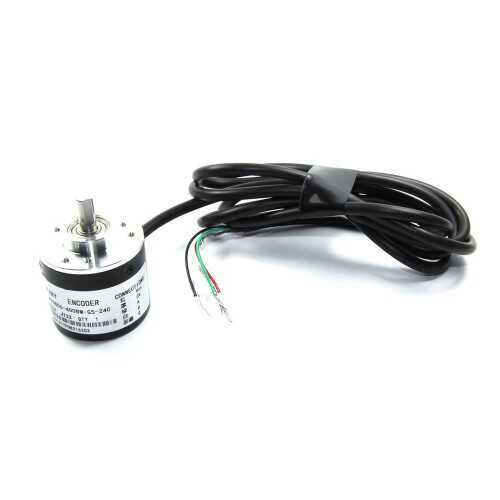

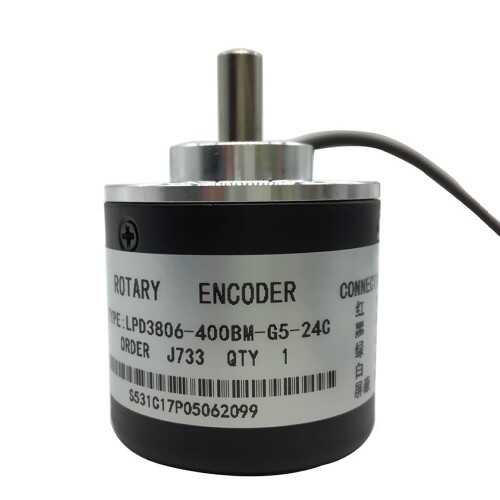

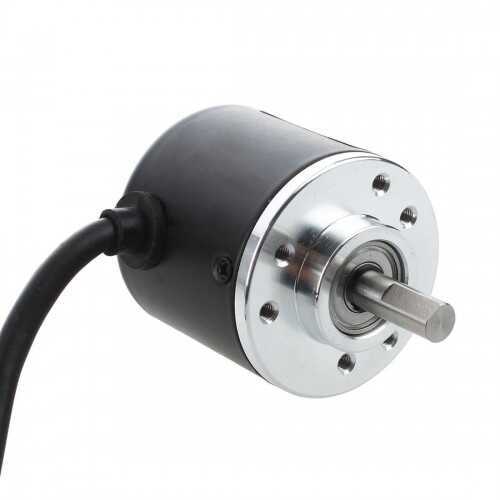

Incremental Optical Rotary Encoder 400 Pulse LPD3806-400BM-G5-24C

Incremental Optical Rotary Encoder 400 Pulse LPD3806-400BM-G5-24C

Incremental optical rotary encoders are precision sensors used to measure the angular position or rotational speed of a shaft. The LPD3806-400BM-G5-24C model provides 400 pulses per revolution, offering high accuracy for automation, CNC, 3D printer, servo control, and robotics applications. Its durable metal housing, high rotational speed tolerance, and wide operating voltage range ensure long-lasting performance.

This encoder features three channels (A, B, and Z) with an NPN open collector output, making it ideal for direction detection and reference (zero) position applications. The AB phase outputs allow easy monitoring of motor rotation direction.

⚠️ Warning: Connecting A and B phase lines directly to VCC will damage the product. Please read the pin description carefully and make the connections correctly.

Incremental Optical Rotary Encoder 400 Pulse LPD3806-400BM-G5-24C Specifications:

• Model: LPD3806-400BM-G5-24C

• Type: AB phase incremental optical rotary encoder

• Operating Voltage: DC 5V – 24V

• Operating Current: 30 mA (typ.)

• Output Type: NPN open collector (A, B, Z channels)

• Resolution: 400 pulses per revolution

• Maximum Mechanical Speed: 5000 rpm

• Rated Speed: 2000 rpm

• Operating Temperature: -20°C ~ +65°C

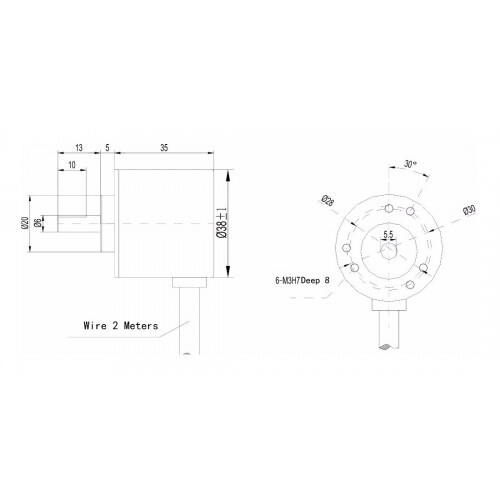

• Shaft Type: D-type, 6 mm diameter x 13 mm length

• Mounting Holes: M3 screw-compatible fixing holes

• Cable Length: 1.5 meters

• Body Material: Aluminum alloy

• Body Diameter: 41.5 mm

• Height: 38 mm (43.5 mm with screws)

• Weight: 150 g

Wiring Description:

• Green: A Phase

• White: B Phase

• Red: VCC (Power +)

• Black: GND
