74HC02

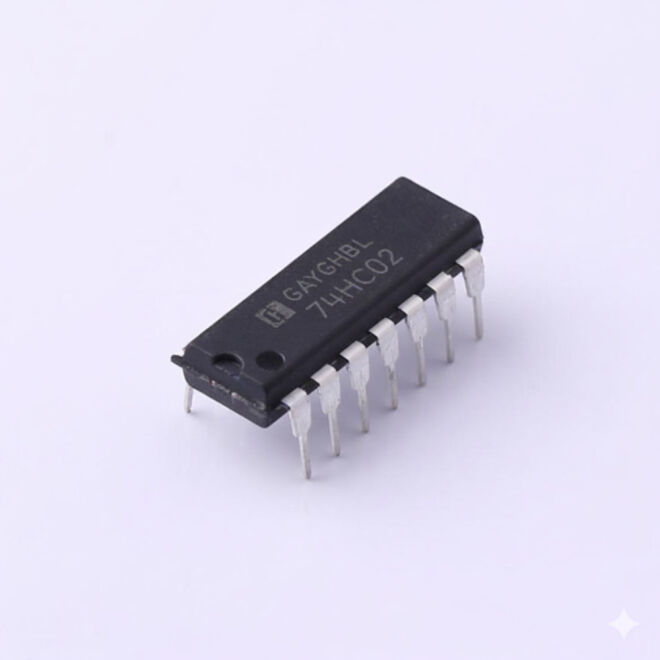

74HC02N IC DIP-14

The 74HC02N is a high-speed CMOS logic IC containing four independent NOR gates. With TTL-compatible input and output levels, this IC offers low power consumption and high switching speed, making it widely used in digital circuits. As a member of the 74HC series, the 74HC02N is ideal for use in digital control systems, timers, logic controllers, and other digital applications.

74HC02N IC DIP-14 Specifications:

• Logic type: Four 2-input NOR gates

• Operating voltage: 2V – 6V

• Maximum input current: ±1 µA (at 25°C)

• Maximum output current: ±5.2 mA (V_CC=5V)

• Operating temperature range: -40°C to +85°C

• Package type: DIP-14 (Dual Inline Package)

• CMOS technology providing high speed and low power consumption

Useful Documents:

• 74HC02N Datasheet
