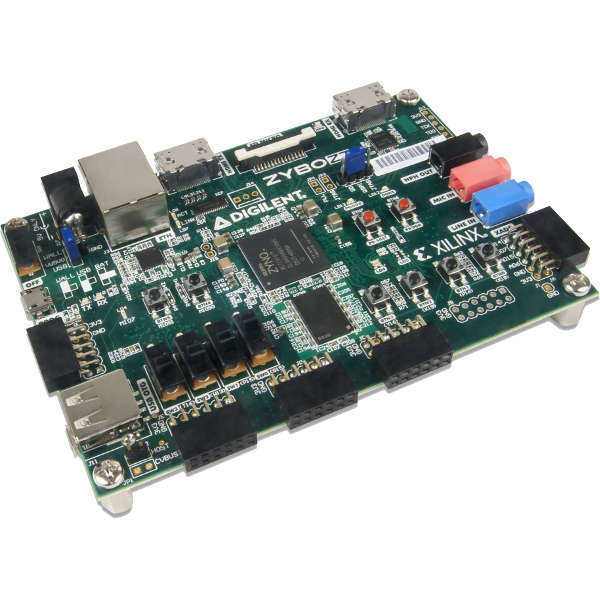

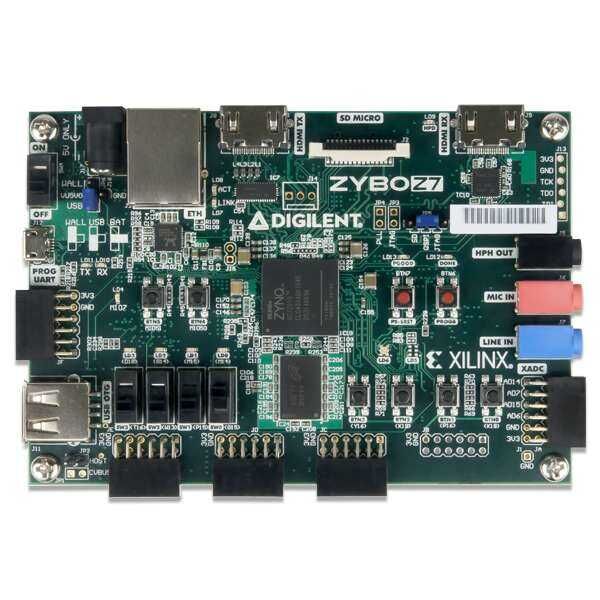

Zybo Z7-10 ARM&FPGA SoC - Academic

Launched in 2012, Zybo Z7, the second-generation update of Zybo, is a ready-to-use embedded software and digital circuit development board built on the Xilinx Zynq-7000 family.

The Zynq family, which successfully integrates a dual-core ARM Cortex-A9 processor with a Xilinx 7-Series FPGA, is based on the Xilinx All Programmable System-on-Chip (AP SoC) architecture.

On the Zybo Z7, Zynq is equipped with rich multimedia and connectivity peripherals to create a powerful single-board computer. The rich video features of Zybo Z7, including MIPI CSI-2 compatible PCam connector, HDMI input and output, and high DDR3L bandwidth, have been carefully selected to be an economical solution for visual applications.

The Zybo Z7’s Pmod connectors allow connection of over 70 Pmod peripheral cards from the Digilent catalog, such as motor controllers, sensors, and displays, making it easier to implement applications that require additional hardware.

Product content: ZYBO Z7-10 Card

You can find the comparison table of the Zybo series in the table below.

		ZYBO	ZYBO Z7-10		ZYBO Z7-20
Zynq Features	Zynq Part No.	XC7Z010-1CLG400C			XC7Z020-1CLG400C
	CPU	650 MHz dual core Cortex-A9	667 MHz dual core Cortex-A9
	Programming Options	JTAG, Quad-SPI Flash, microSD
	1 MSPS On-chip ADC	Include
	Look-up Tables (LUTs)	17,600			53,200
	Flip-Flops	35,200			106,400
	Block RAM	270 KB			630 KB
	Clock Management Block	2			4
Memory	DDR	512 MB DDR3 with 32-bit bus @ 1050 MHz	1 GB DDR3L with 32-bit bus @ 1066 MHz
	Quad SPI Flash	16 MB
	mikroSD Soket	Include
Power	Login Options	USB or 5V external power supply
	Fan connector	NO	Yes
USB & Ethernet	Gigabit Ethernet	Yes
	USB-JTAG	Yes
	USB-UART	Yes
	USB 2.0 OTG	Host ve Slave
Ses ve Video	Audio Codec	SSM2603
	VGA	Yes		No
	Bidirectional HDMI	Yes		No
	HDMI çıkış	No		Yes
	HDMI giriş	No		Yes
	Pcam MIPI CSI-2 Kamera Portu	No		Yes
GPIO Aygıtlar	Button	6
	Switch	4
	LEDs	5
	RGB LEDs	0		1	2
Extras	Pmod	6		5	6
Dimension	H	88 mm
	V	122 mm

Zybo Z7-10 ARM&FPGA SoC Technical Specifications:
ZYNQ Processor:

667 MHz dual-core Cortex-A9 processor
DDR3L memory controller with 8 DMA channels and 4 high-performance AXI3 Slave ports
High-bandwidth peripherals: 1G Ethernet, USB 2.0, SDIO
Low-bandwidth peripherals: SPI, UART, CAN, I2C
Programmable via JTAG, Quad-SPI flash, and micro SD card
Programmable logic equivalent to Artix-7 FPGA

Memory:

1GB DDR3L 32-bit bus-capable memory @ 1066MHz
16MB Quad-SPI flash, factory 128-bit random number, 48-bit globally unique EUI-48/64™ compliant identifier
Micro SD card slot

Power:

Can be powered by USB or any other external 5V

USB and Ethernet:

Gigabit Ethernet PHY
USB-JTAG programming circuit
USB-UART bridge
Host supported USB 2.0 OTG PHY

Audio and video:

MIPI CSI-2 destekli Pcam kamera konektörü
HDMI sink (giriş) portu
HDMI source (çıkış) portu, CEC destekli
Stereo kulaklık, stereo line-in ve mikrofon jaklarına sahip ses kodeği

Switches, push-buttons and LEDs:

6 push-buttons (2 processor-connected)
4 slide switches
5 LEDs (1 processor-connected)
1 RGB LED

Expansion connectors:

5 Pmod ports
8 total processor I/O
32 FPGA I/O
4 analog-capable 0-1.0V differential pairs, connected via XADC

Documents and Useful Links:

Technical Documentation
Circuit Diagram
