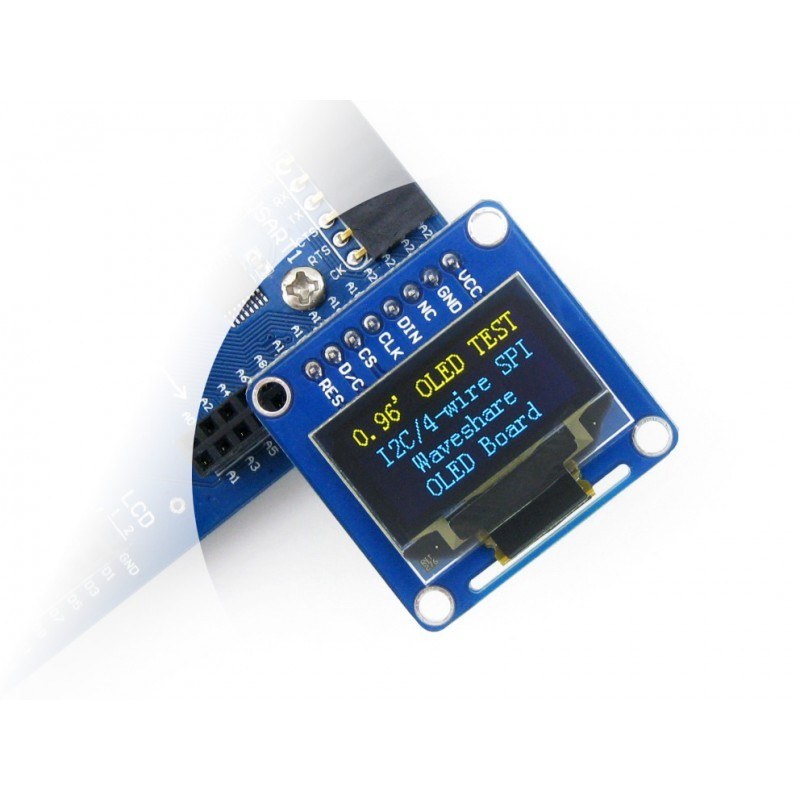

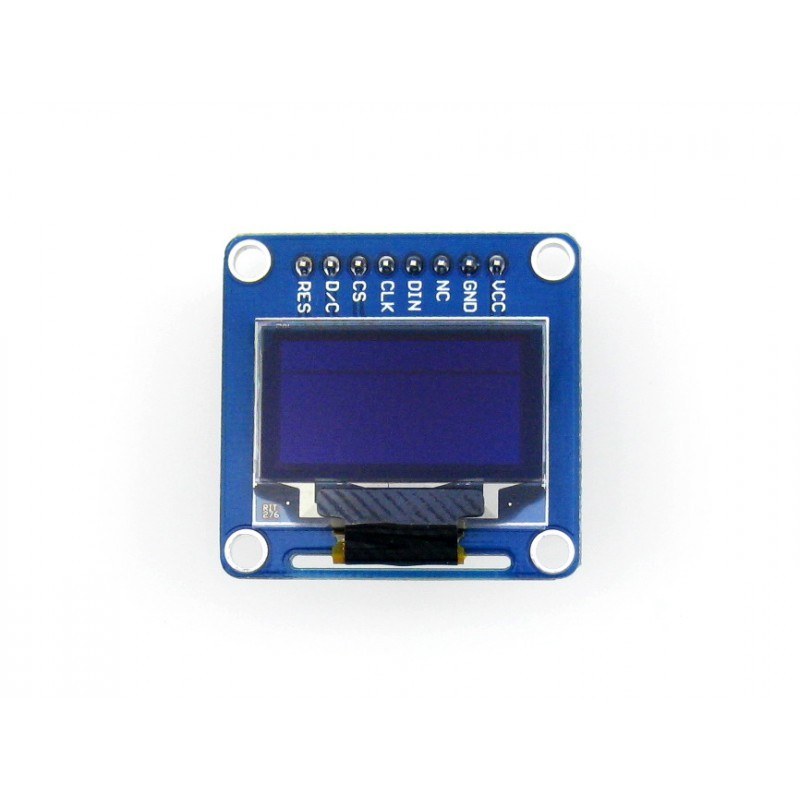

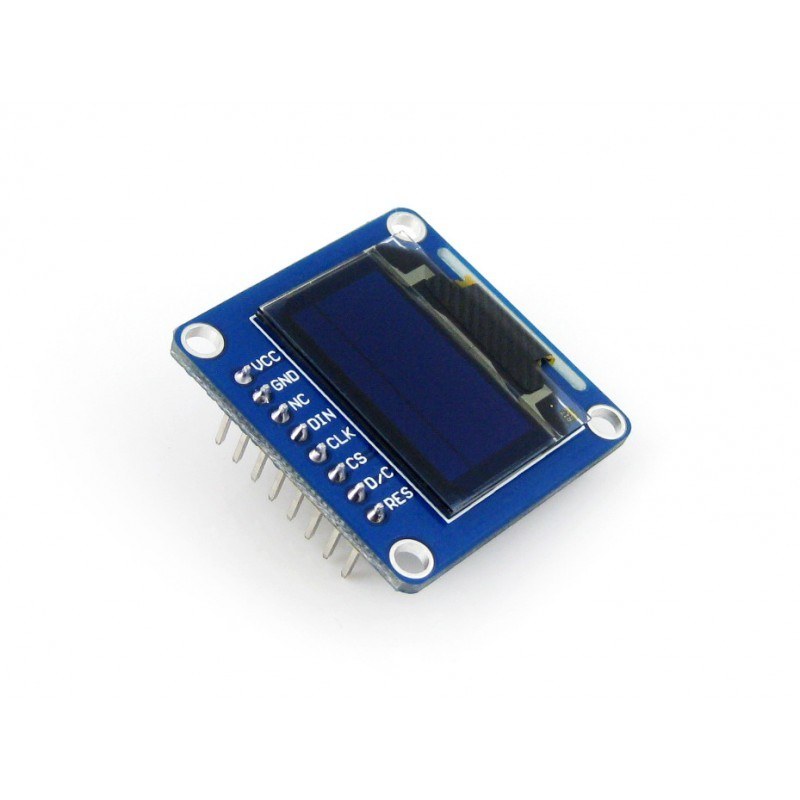

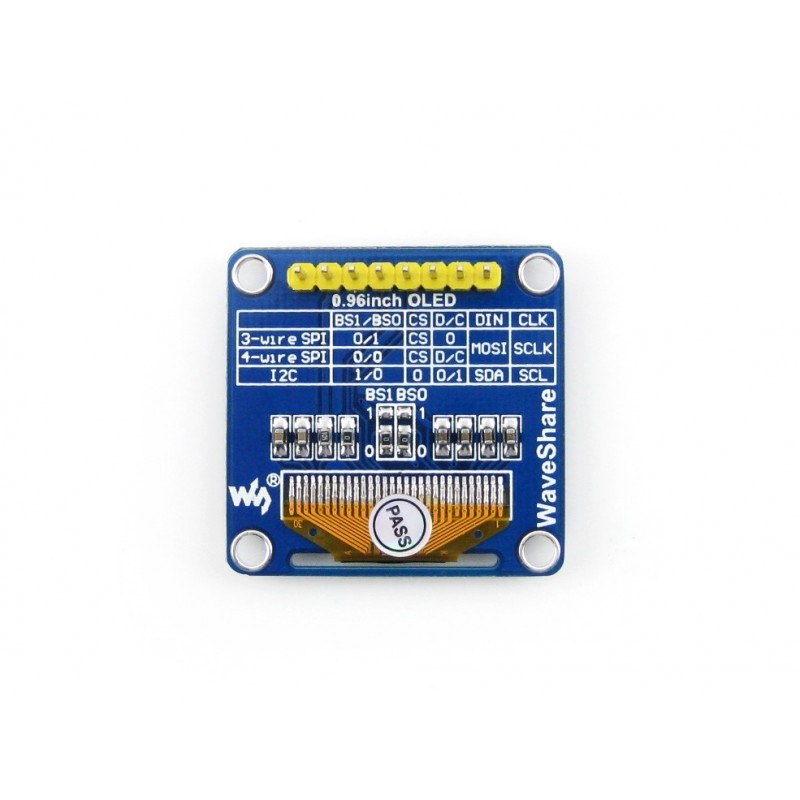

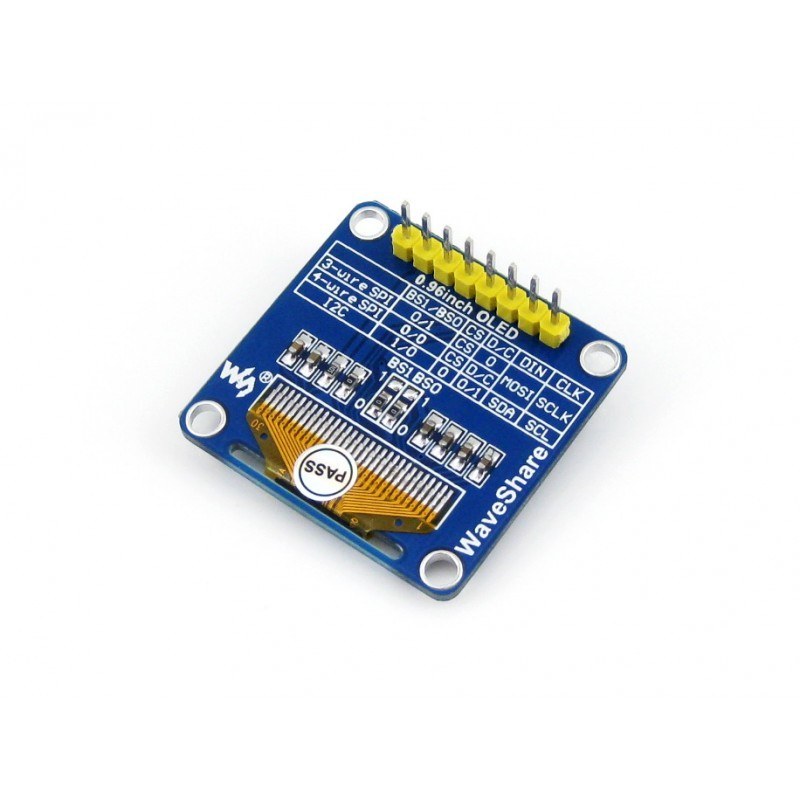

This is 0.96" size two - color OLED screen module. You can get high contrast displays woth no beck lights thanks to OLED technology. This module supports 3 or 4 cables SPI and I2C connection interfaces.
Technical Features:
Sizes:
| PIN NO. | SYMBOL | DESCRIPTION |
|---|---|---|
| 1 | VCC | Power positive (3.3~5V power input) |
| 2 | GND | Ground |
| 3 | NC | NC |
| 4 | DIN | Data input |
| 5 | CLK | Clock signal input |
| 6 | CS | Chip selection, low active |
| 7 | D/C | Command signal, low level for command, high level for data |
| 8 | RES | Reset signal, low active |
Detailed information and example codes can be found on Wiki page.
