Voice Recognition Kit Compatible with Arduino
Voice Recognition Kit Compatible with Arduino Features:
- The voice recognition module can recognize 15 voice commands.
- The 15 commands are divided into 3 groups, with 5 commands in each group.
- Suitable for most applications involving voice control.
- Receives configuration commands or responds via the serial port interface.
- With the module, you can control cars or other electrical devices by voice.
Specifications:

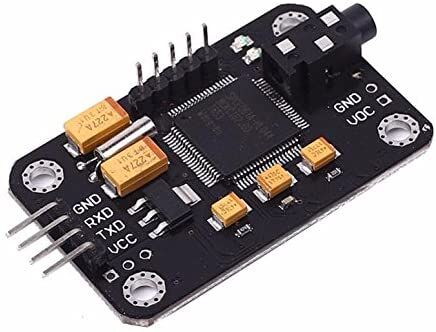

- Type: Voice Recognition Module
- Black color
- Voltage: 4.5-5.5V
- Current: less than 40mA
- Digital Interface: 5V TTL level UART interface
- Analog Interface: 3.5 mm single-channel microphone connector + microphone pin interface
- Size: approximately 30 mm x 47.5 mm

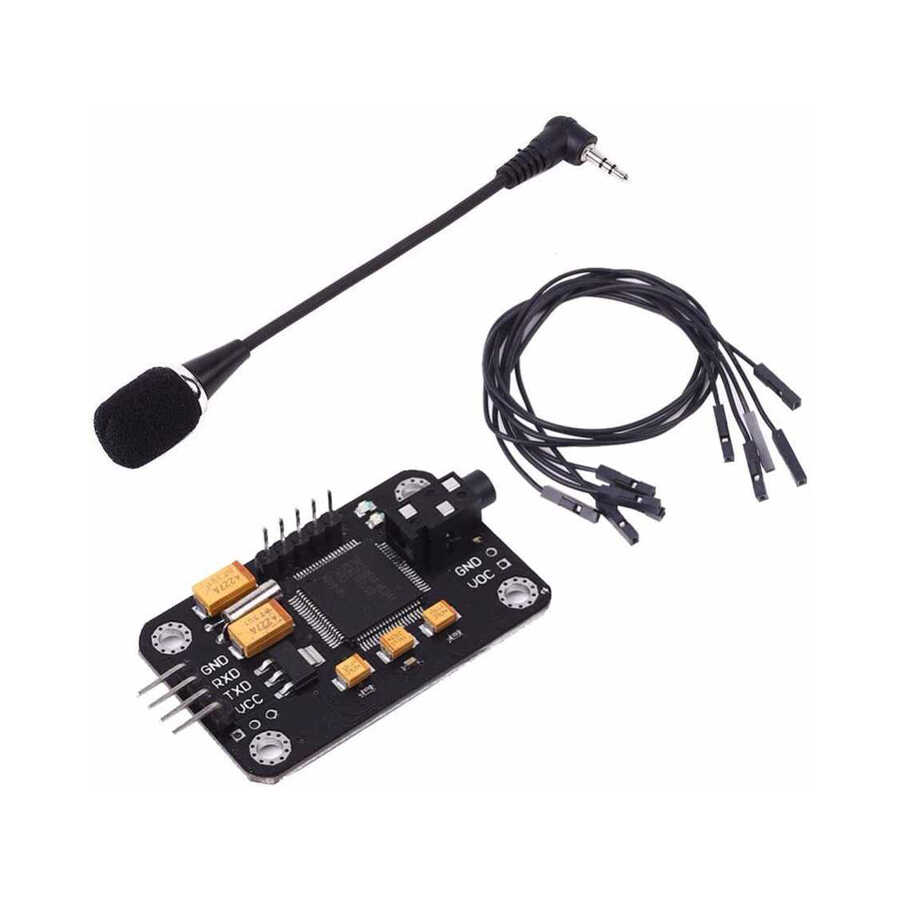

Package Contents:
- 1 x Voice Recognition Module

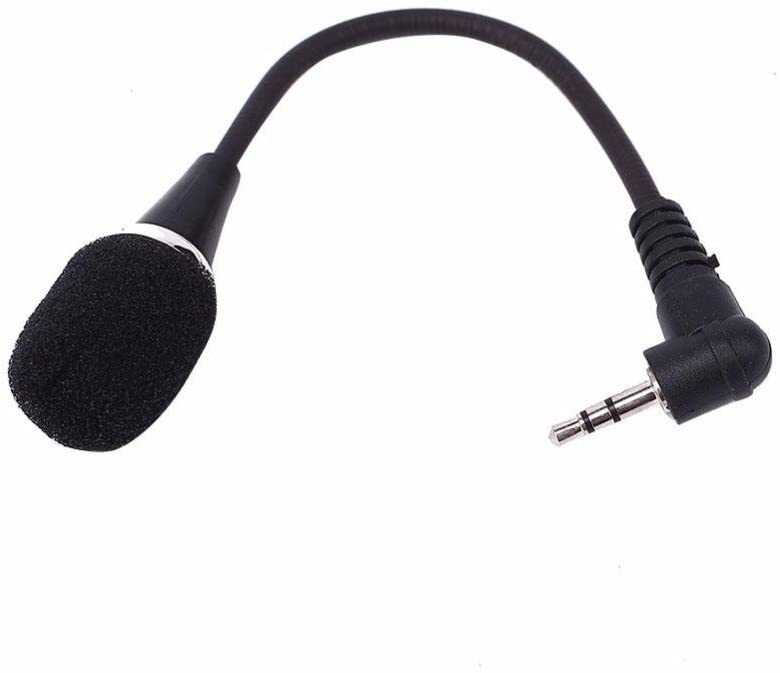

- 1 x Microphone
- 1 x 5-pin wire
Test Code:
By reading the data coming from the voice board, transferred via serial communication, it enables the yellow, red, and green LEDs connected to the development board to light up when the user says the colors into the microphone. You can access the Test Code here.
Useful Documents:
