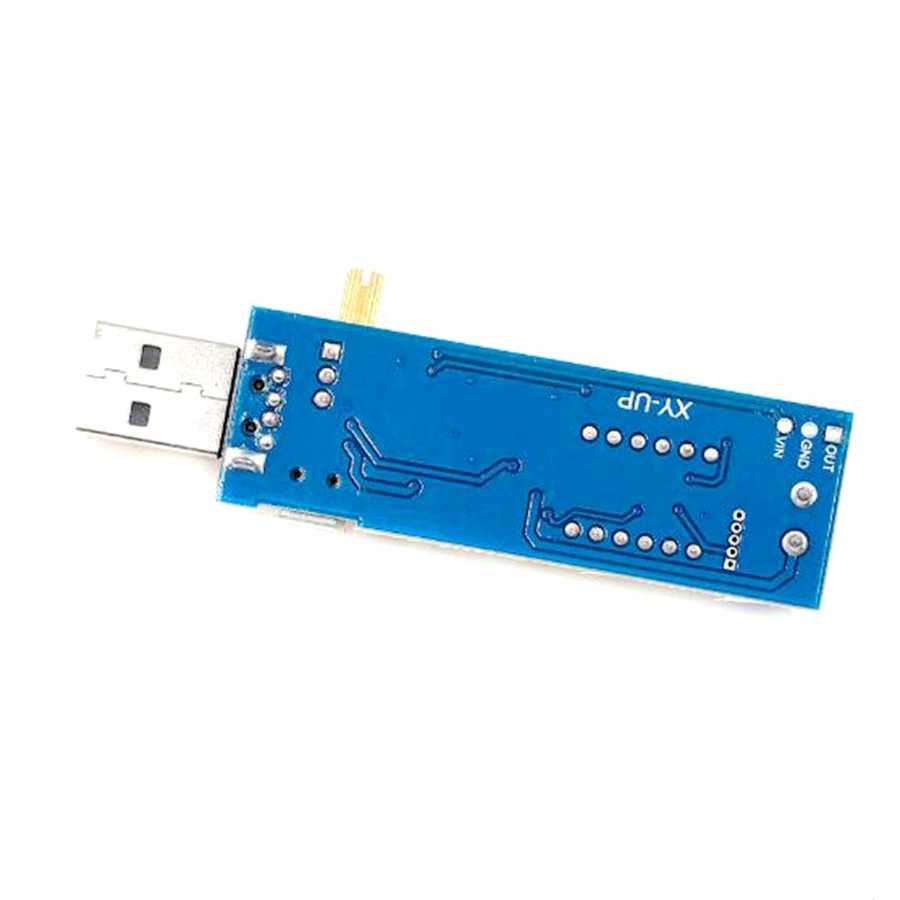

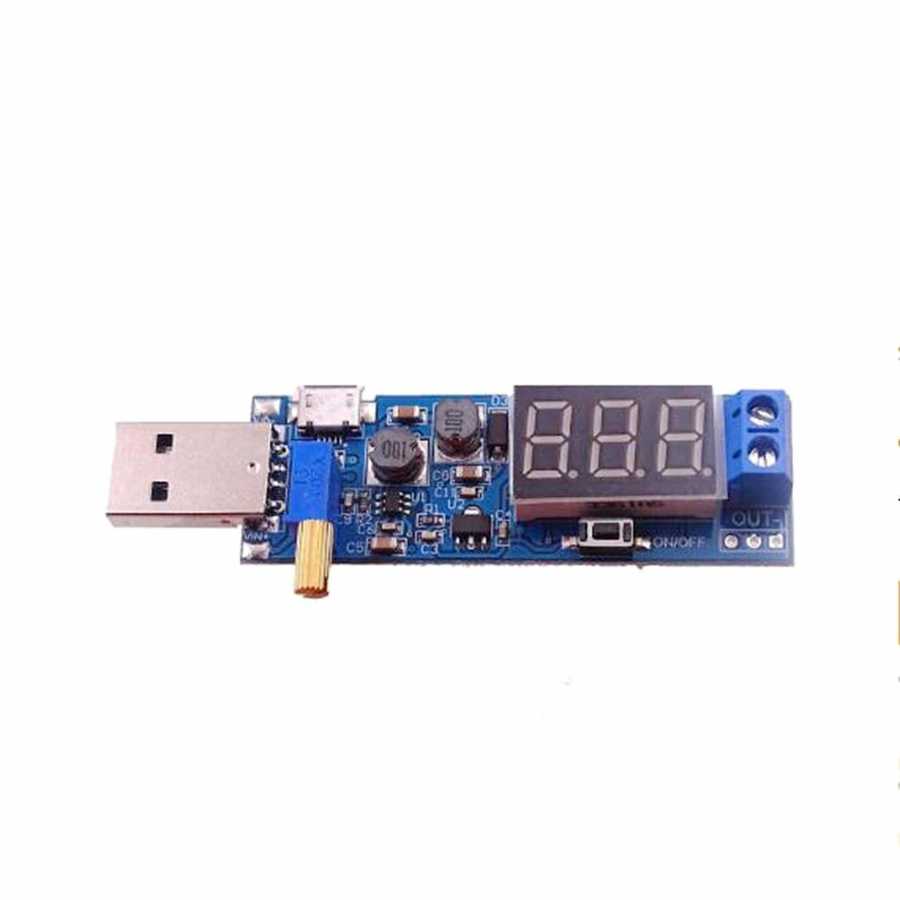

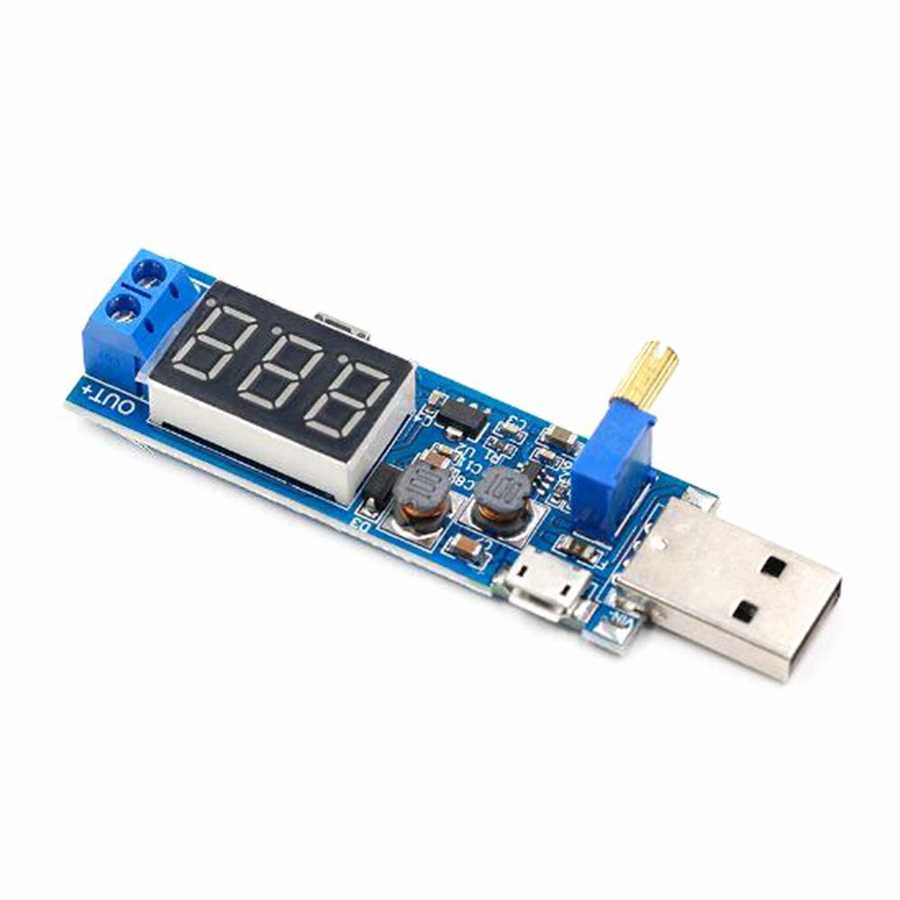

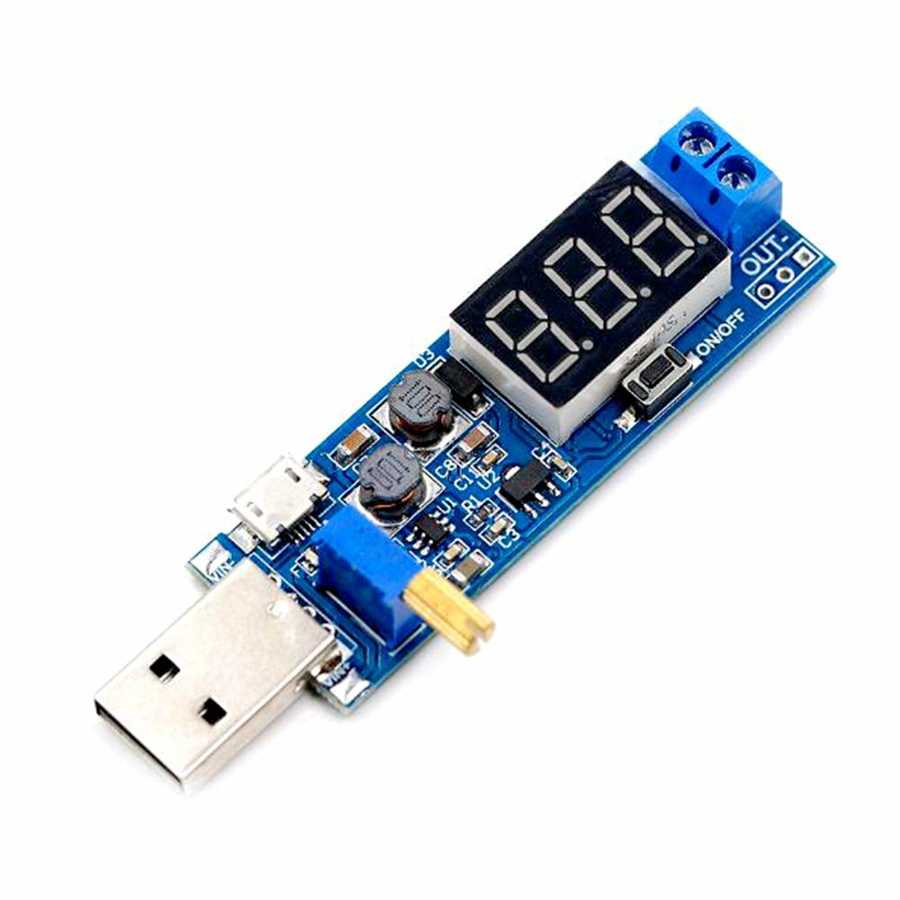

USB boost/buck power supply module, powered by USB, adjust potentiometer to get the required voltage.
Features:
- One button to turn off the output;
- Supply ON/OFF display screen;
- Support low power mode;
- Support sleep mode;
- Support both standard USB and Micro USB and pads input voltage;
- Potentiometer with rotating handle.
Parameters:
- Input voltage: DC 3.5-12V;
- Output voltage:DC 1.2-24V;
- Max. Current: 1.5A
- Output power:
-Input 1.2-2V,output power within 2W;
-Input 2V-20V,output power within 3W;
-Input 20V-24V,output power with in 2.5W;
- Display:3Bit digital tube display;
- Size:80*20*14mm.
Use steps:
- Input voltage from Standard USB or Micro USB or ‘VIN+’ and ‘VIN-’;
- Turn ON display screen;
- Adjust potentiometer to get the required voltage;
- Connect load.
Application:
- Ordinary power supply;
- Battery charger;
- LED drive power;
- Instrument voltage display;
- Test meter;
- Circuit test;
- Power conversion.
Please Note:
- It is not a high power supply, please use it within the power range.
Package:
- 1 x DC-DC USB Boost Power Regulator Module 5V to 3.3V 9V 12V 24V Desktop Power Module
