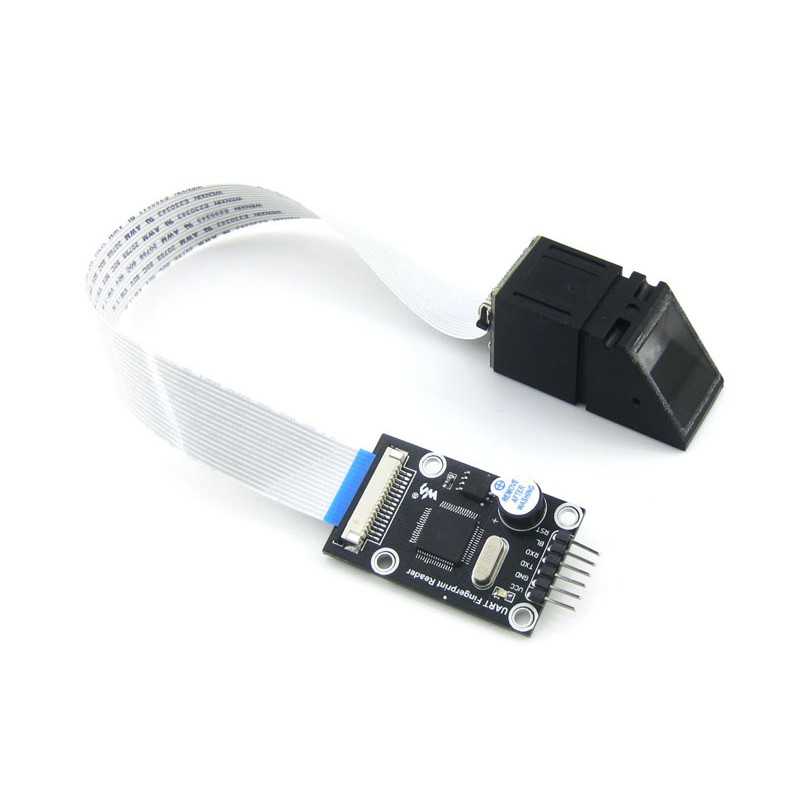

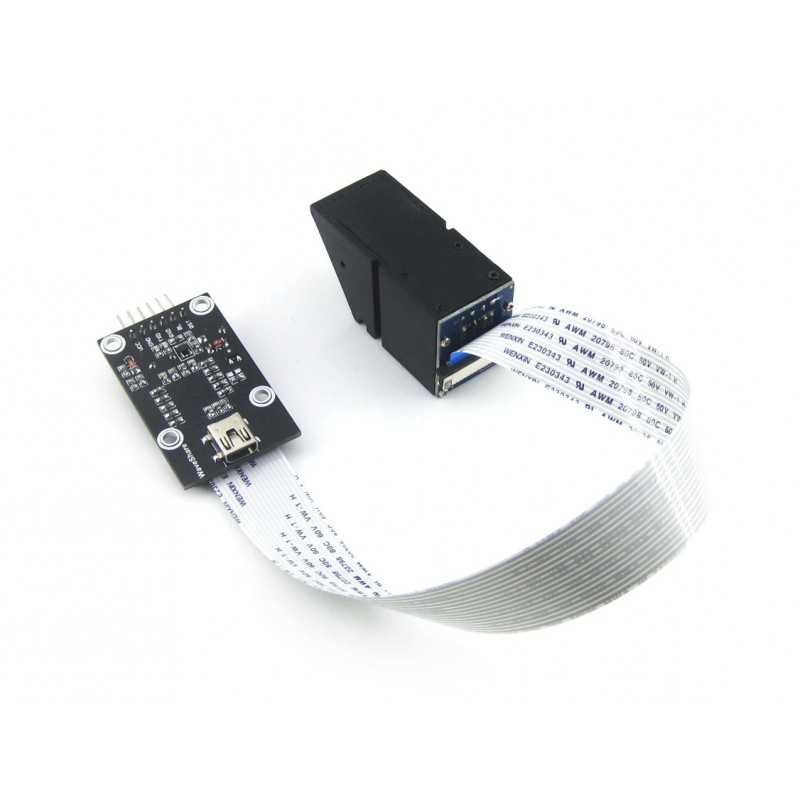

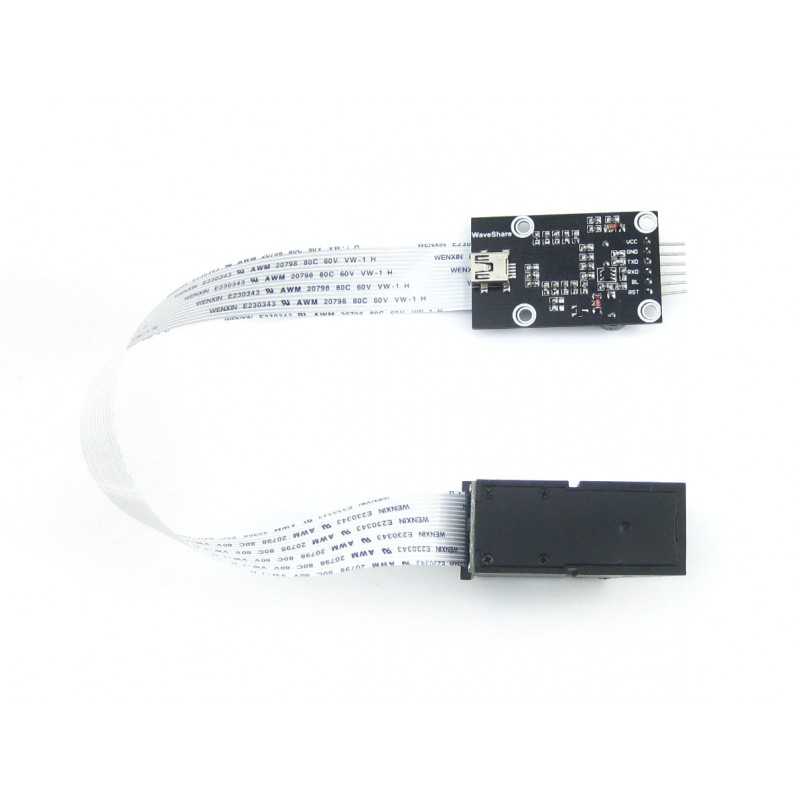

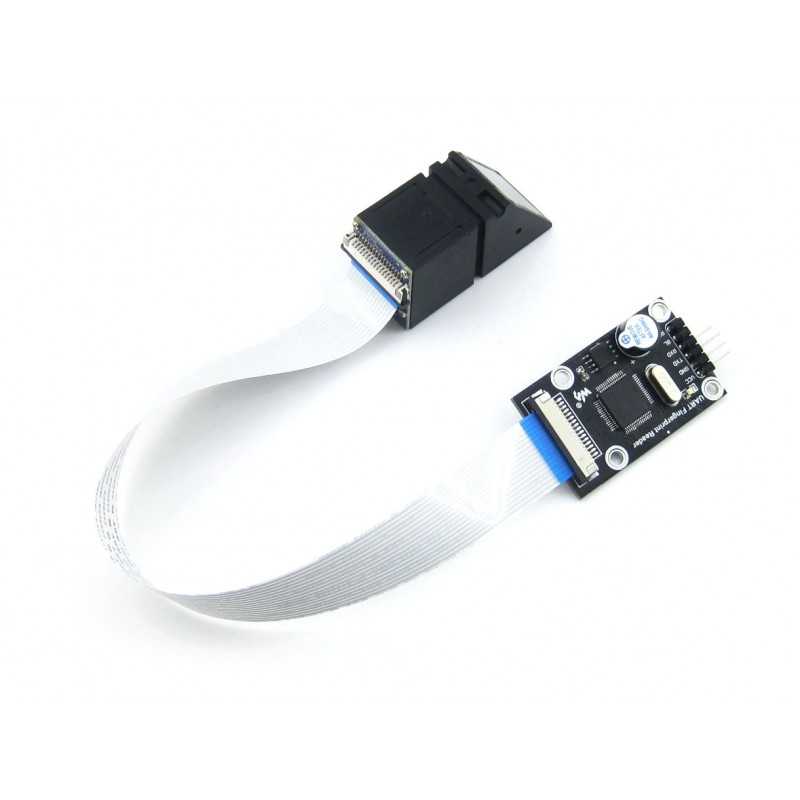

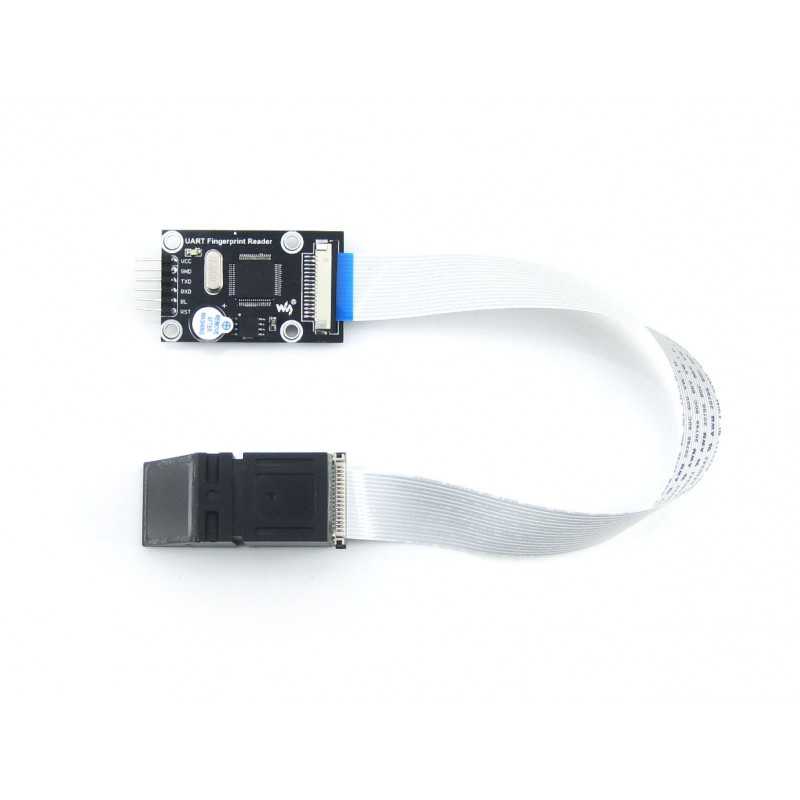

UART Fingerprint Reader

Product Code
:
18319
Brand / Origin
:
WaveShare
:
Comments (0)
Quantity
:
0
Without Vat
:
1,086.92 TL
Out of stock Alert when in stock
Same Day Shipping
Orders placed until 5:00 on weekdays and 10:30 on Saturday are shipped the same day.
Add to Favorites
Click here to add this product to your list and review it later.
Technical Service
We are always with you with our experienced staff and advanced support services.
Refund Guarantee
We carry out the process without upsetting you with a 14-day return guarantee.
Add Comment
  • Features
  • Payment Options
  • Comments (0)
  • Recommend
  • Images
  • Suggestion Box

  • UART Fingerprint Reader is a fingerprinting module designed for secondary development, high-speed for identification, high stability. It is an intelligent module that provides functionalities like fingerprint recording, image processing, feature extraction, template generation, template storage, fingerprint matching and searching, etc.

    Features:

    • Onboard high-speed processor STM32F205
    • Commercial fingerprinting algorithm, faster identification
    • High-accuracy optical sensor, standard 16-pin interface, allows users to choose optical/semiconductor sensors
    • Divided structure: fingerprint sensor + processing circuit + algorithm platform
    • Easy for developing, controlled via UART, supports any MCU with UART
    • Open protocol, it's available to freely input/output fingerprint images, fingerprint feature file and other fingerprinting actions

    Applications:

    • Fingerprint lock
    • Fingerprint safe deposit box
    • Access control system
    • Person identification
    • Authority management

    Specifications:

    PARAMETER SPECIFICATION
    Processor (CPU)  STM32F205
    Sensor HD optical
    Memory Built-in (extensible)
    Anti-wearing 1 million times
    Anti-electrostatic 150KV
    Fingerprint capacity 1000
    False acceptance rate <0.001% (on security level 5)
    False rejection rate <0.1% (on security level 5)
    Current <50ma
    Input time <0.5s
    Matching time <0.5s
    Matching mode 1 : 1
    1 : N
    Security level 1-10 (supports customization)
    Output formats User ID, Image, Feature
    Feature size 196 Byte
    Feature template size  512 Byte
    Template rule standard ISO19794-2
    Communication interface UART
    Communication baud rate 9600-57600bps
    Power supply UART, external power
    Voltage level 3.3-7.5V
    Operating temp. -20℃ to 60℃
    Relative humidity 40%RH to 85%RH (without condensation)

    Dimension:

    Downloads:

    Development resources: demo codes, schematic, datasheets, etc.
    Wiki


    Recommended Items:

    Selection Guide:

      UART FINGERPRINT READER CAPACITIVE FINGERPRINT READER UART FINGERPRINT SENSOR (C)
    TYPE Optical fingerprinting module Capacitive fingerprinting module
    PROS low cost, durable, excellent anti-electrostatic small collecting area, high precision, good at detection and verification
    CONS large dimension, low precision, interfered by lighting High environmental requirement (temperature, humidity, dust, alkaline air)
    FEATURES Rectangle-shaped, separated structure Round-shaped, all-in-one, small size, low power consumption
    FINGERPRINT CAPACITY 1000 500
    IMAGE PIXELS 248×296 192×256 192×192
    INTERFACE UART UART, USB UART
    FALSE ACCEPTANCE RATE <0.001% 0.0001% <0.001%
    FALSE REJECTION RATE <0.1%  0.01% <0.1%
    SENSOR LIFE TIME 10 years 3-5 years (about 100,000 times on normal condition)
    USE CONDITION More sensitive for wet fingers More sensitive for dry fingers
    APPLICABLE PRODUCTS Used frequently, like access control system Used not often while requiring high precision, like fingerprinting lock
    Generally, optical modules are used in low-end products, while capacitive module are suit for high-end products
