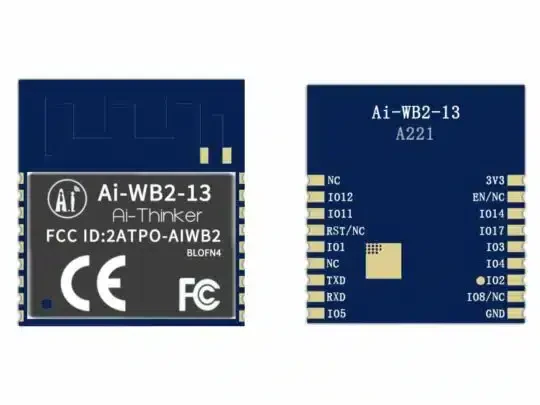

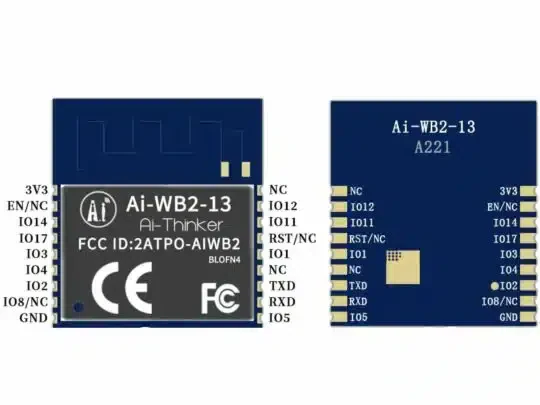

Ai-WB2-13 WiFi and Bluetooth Module

Ai-WB2-13 WiFi and Bluetooth Module

Ai-WB2-13 WiFi and Bluetooth Module is a Wi-Fi & Bluetooth module developed by LTD. The module is equipped with the BL602 chip as the core processor. It supports Wi-Fi WPS, WEP, WPA, WPA2, WPA2 Enterprise and WPA3, and BLE 5.0 protocol on the Bluetooth side. The BL602 chip is a low-power 32-bit MCU that provides multiple peripheral interfaces including UART, GPIO, ADC, PWM, I2C and SPI. It is widely used in mobile and electronic devices, smart home appliances and various Internet of Things (IoT) applications.

Ai-WB2-13 WiFi and Bluetooth Module Technical Specifications:

• Dimensions: 24 x 16 x 3.1 mm

• Antenna Type: On-board PCB Antenna

• Frequency Range: 2400 / 2483.5 MHz

• Supply Voltage Range: 2.7 V / 3.6 V

• Supply Current: 500 mA

• Supported Interfaces: UART / GPIO / ADC / PWM / I2C / SPI

• Number of I/O Pins: 15

• Serial Baud Rate: 115200 bps

• Operating Temperature: -40°C / 85°C
