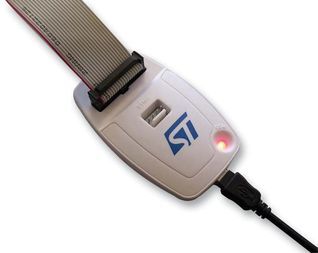

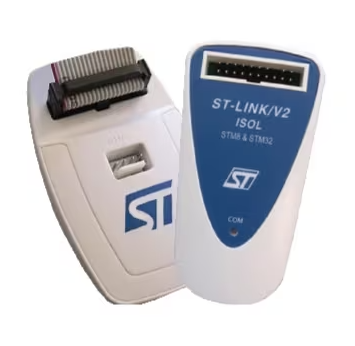

STM8 / STM32 Debugger and Programmer ST-LINK V2

STM8 / STM32 Debugger and Programmer ST-LINK V2

The STM8 / STM32 Debugger and Programmer ST-LINK V2 is a reliable and widely used in-circuit debugging and programming tool developed by STMicroelectronics for STM8 and STM32 microcontroller families. It communicates with microcontrollers on application boards via SWIM and JTAG/SWD interfaces.

The ST-LINK V2 connects to a host PC via USB 2.0 Full-Speed and is compatible with popular development environments such as STM32CubeIDE, IAR Embedded Workbench, Keil MDK-ARM, and ST Visual Develop. It provides a stable and efficient debugging experience for both development and testing processes.

Thanks to its compact design and broad software support, the ST-LINK V2 is widely preferred in education, prototyping, R&D, and professional embedded system projects as a programmer and debugger.

STM8 / STM32 Debugger and Programmer ST-LINK V2 Technical Specifications:

• Debugger and programmer compatible with STM8 and STM32 microcontrollers

• STM8 support via SWIM interface

• STM32 support via JTAG and Serial Wire Debug (SWD) interfaces

• USB 2.0 Full-Speed connectivity

• Target application voltage support from 1.65 V to 5.5 V (SWIM)

• Target application voltage support from 1.65 V to 3.6 V (JTAG/SWD)

• Direct firmware update (DFU) support

• Status LED indicating communication activity

• Compatible with Windows, Linux, and macOS operating systems

Useful Links / Documents:

• ST-LINK V2 Datasheet
• ST-LINK V2 Documentation
