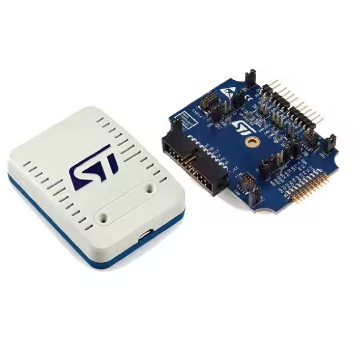

STM8 / STM32 Debugger Programmer STLINK-V3SET

STM8 / STM32 Debugger Programmer STLINK-V3SET

The STM8 / STM32 Debugger Programmer STLINK-V3SET is a professional-grade, modular debugging and programming tool developed by STMicroelectronics for STM8 and STM32 microcontrollers. Operating as a standalone probe, it provides a reliable and high-performance solution for both development and production environments.

The STLINK-V3SET supports JTAG, SWD, and SWIM interfaces, ensuring compatibility with a wide range of STM8 and STM32 devices. Its integrated Virtual COM Port (VCP) feature enables UART communication between the host PC and the target microcontroller. In addition, it supports fast firmware programming via drag-and-drop functionality.

With USB 2.0 High-Speed connectivity, multi-interface bridging support (SPI, UART, I2C, CAN, GPIO), and direct firmware update (DFU) capability, the STLINK-V3SET is an ideal debugging and programming solution for R&D, education, prototyping, and professional embedded system development projects.

STM8 / STM32 Debugger Programmer STLINK-V3SET Technical Specifications:

• Debugger and programmer compatible with STM8 and STM32 microcontrollers

• Support for JTAG, SWD, and SWIM debug interfaces

• USB 2.0 High-Speed connectivity

• Virtual COM Port (VCP) for UART communication

• SPI, I2C, CAN, and GPIO bridge support (with adapter board)

• Fast flash programming via drag-and-drop method

• Direct firmware update (DFU) support

• Compatible with STDC14, MIPI10, and MIPI20 debug connectors

• Compatible with Windows, Linux, and macOS operating systems

Useful Links / Documents:

• STLINK-V3SET Datasheet
• STLINK-V3SET Documentation
