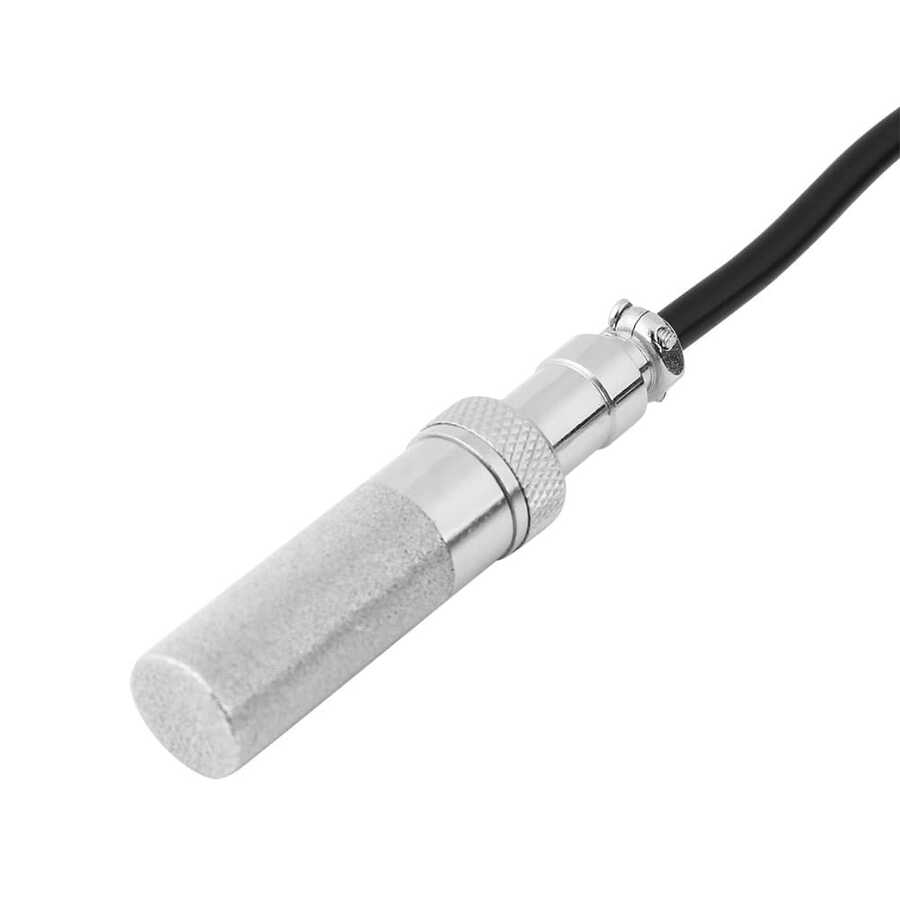

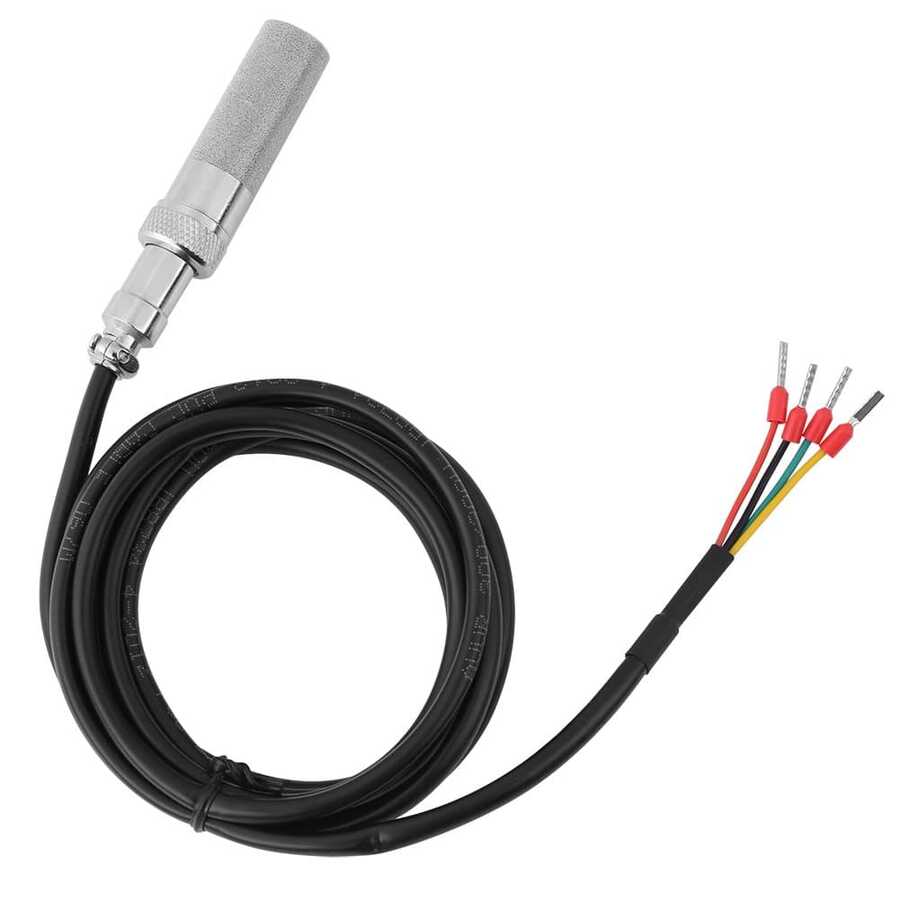

SHT10 Soil Temperature and Humidity Sensor Module - 50cm Cable

SHT10 Soil Temperature and Humidity Sensor Module is one of the surface mountable relative humidity and temperature sensors. It contains a temperature-humidity sensor module housed in a sintered metal mesh. The body prevents water from reaching the sensor even when fully submerged, but allows air to pass through to measure temperature and humidity. Since the measured data is transmitted digitally, it does not experience signal degradation over long distances. The sensors are highly sensitive and the built-in ADC converter has 14-bit resolution.

While the sensor can measure up to 120°C, the structure of the PVC cable will begin to deteriorate at temperatures above 100°C. It works quite stably with many microcontrollers using a few digital pins.



SHT10 Soil Temperature and Humidity Sensor Module Technical Specifications:

  • Input Voltage: 3.3V - 5V/DC
  • Working Current: ≤ 15mA
  • Temperature Measurement Range: - 20°C ~ 100°C
  • Humidity Measurement Range: 0 ~ 100%RH
  • Temperature Measurement Accuracy: 0.5°C
  • Sensor Length: 75mm
  • Sensor Diameter: 15mm
  • Cable Length: 50cm
  • Weight: 70g

SHT10 Soil Temperature and Humidity Sensor Module Pin Diagram:

sht10-sicaklik-ve-nem-sensoru-pinout (1).jpg (8 KB)

SHT10 Soil Temperature and Humidity Sensor Module Usage Areas:

  • Smart Garden Applications
  • Automatic Pot Watering System
  • Weather Station
  • Soil Fertility Measurements
  • Agricultural Greenhouses and Nurseries

SHT10 Soil Temperature and Humidity Sensor Module Package Contents:

  • 1 x SHT10 Soil Temperature and Humidity Sensor Module

Similar Products:

Products That Can Be Used Together:

Useful Links / Documents:

20080
SHT10 Soil Temperature and Humidity Sensor Module - 50cm Cable
SHT10 Soil Temperature and Humidity Sensor Module - 50cm Cable
:
760.59 TL + VAT
:
912.71 TL
