Radiolink MINI PIXHAWK 1.2 Power Module +Safety switch button + Buzzer + Connection cable

Radiolink MINI PIX V1.2 Flight Controller + 12S Power Module + Accessories

The Radiolink MINI PIX V1.2 is a top-tier flight controller equipped with the MPU6500 accelerometer, QMC5883L compass, and LPS22HB barometer. The V1.2 features a fully enclosed shell design to protect against air current interference on barometric pressure during flight. With integrated software-based vibration damping, it achieves superior "Altitude Hold" performance without the need for an external mounting frame.

Radiolink MINI PIX V1.2 Technical Specifications:

• Dimensions: 39x39x12mm (Same size as F4)
• Weight: 12g (Without wires), 39g (Including all wires)
• Processor: STM32F405VGT6
• Barometer: LPS22HB (ST-America)
• Gyro/Accelerometer: MPU6500 (Invensense)
• Compass: QMC5883L (Honeywell HMC5983 technology)
• Power Module (PM): Wide Voltage Input 2S - 12S (7.4V - 50.4V)
• Mavlink UART: 2 (with CTSRTS)
• GPS UART: 1
• Signal Input: PPM / SBUS
• I2C Port: 2 (Via included Transfer Board)
• PWM Output: 6 Channels
• Operating Temperature: -40 ~ +80°C

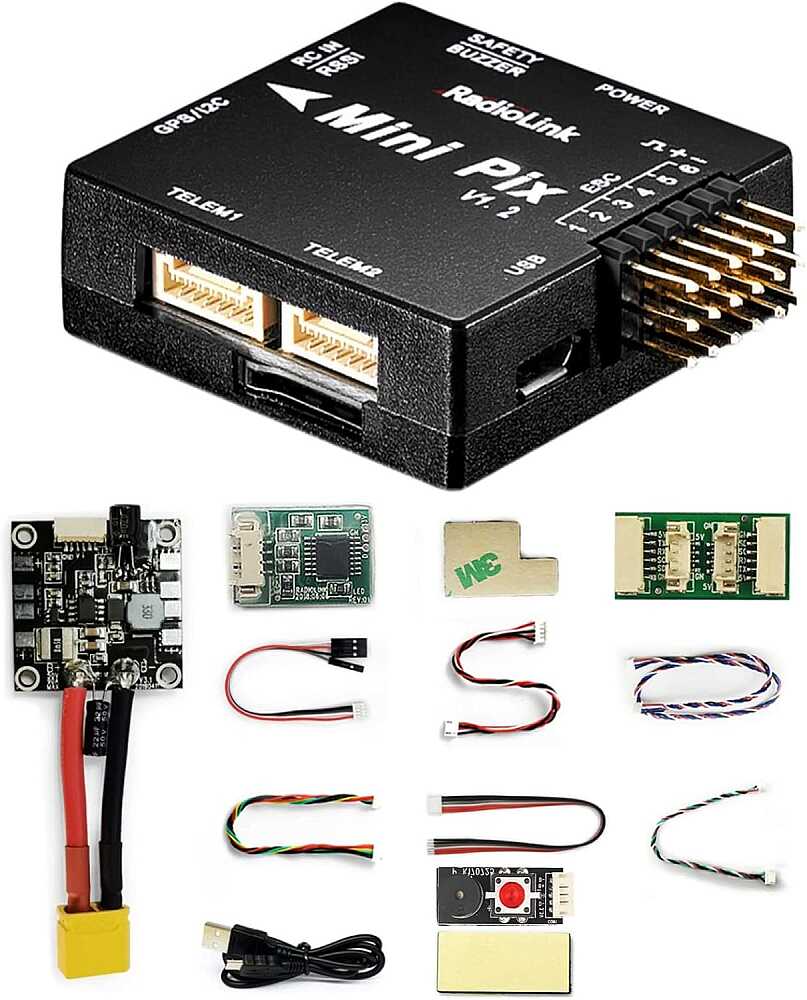

V1.2 Package List:

• Mini Pix V1.2 Flight Controller x1
• 2-12S Power Module x1
• Buzzer & Safety Switch x1
• I2C Transfer Board x1
• FC Status Indicator LED x1
• 4G MicroSD Card x1
• Full Connect Cable Set (GPS, I2C, Power, RC In, RSSI, OSD, etc.)
