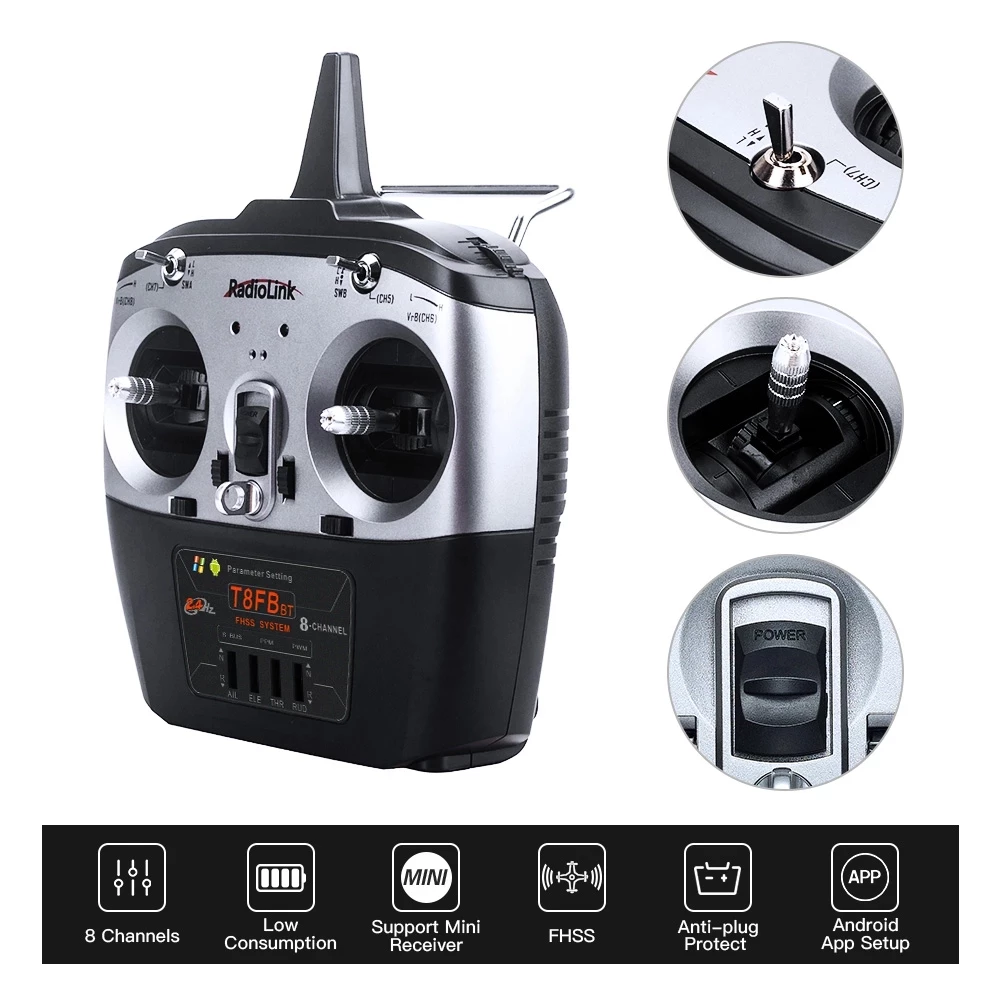

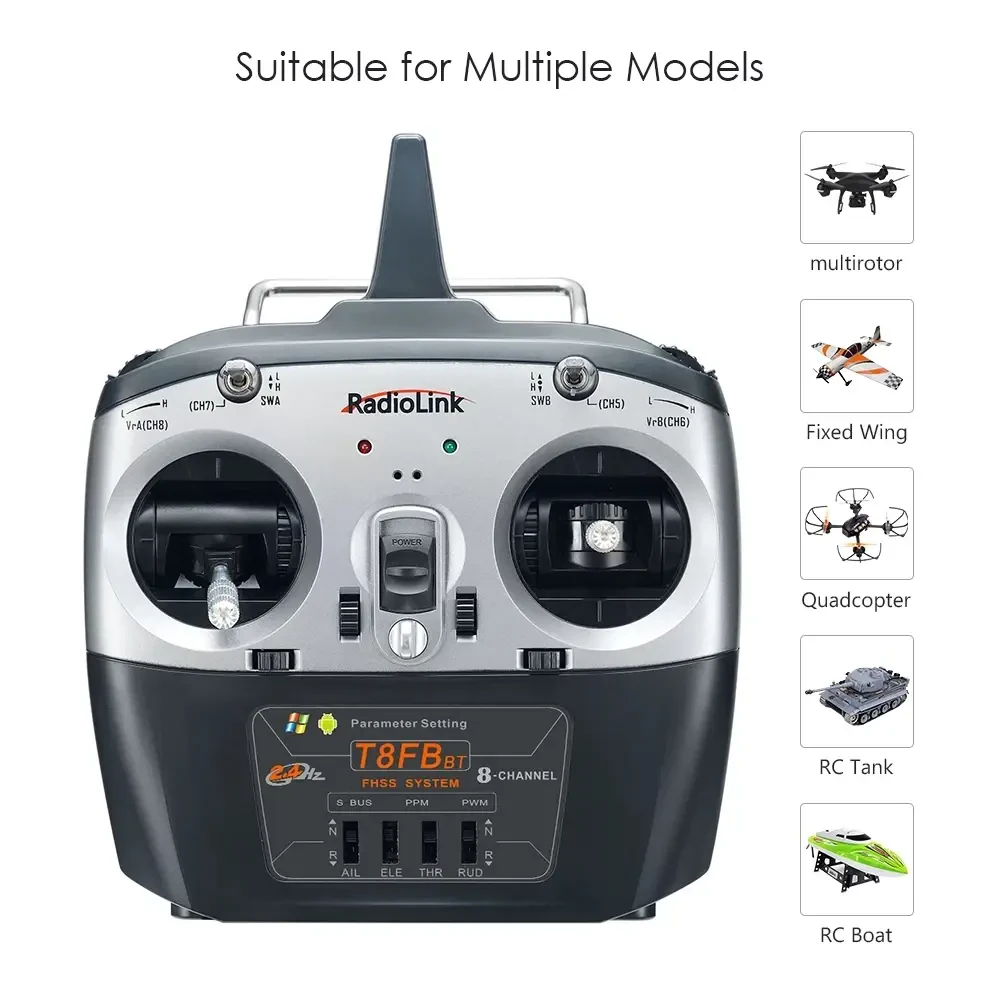

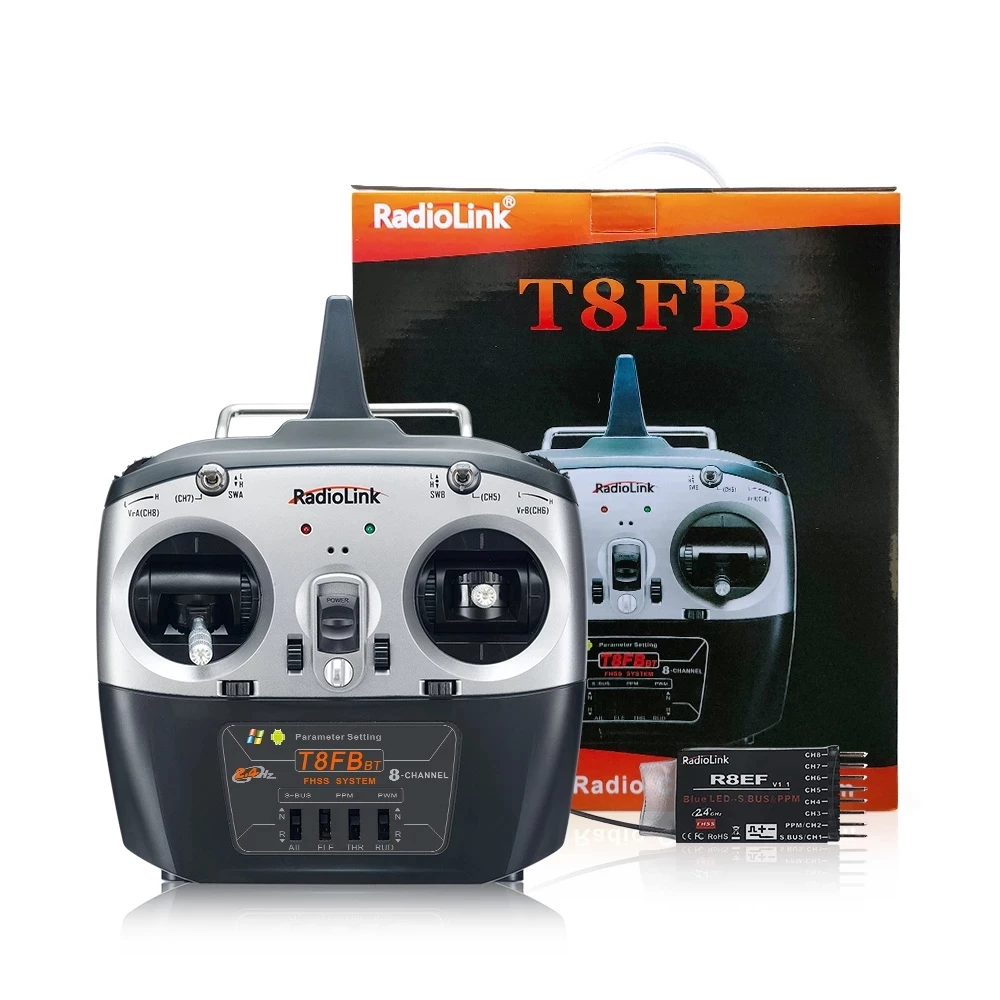

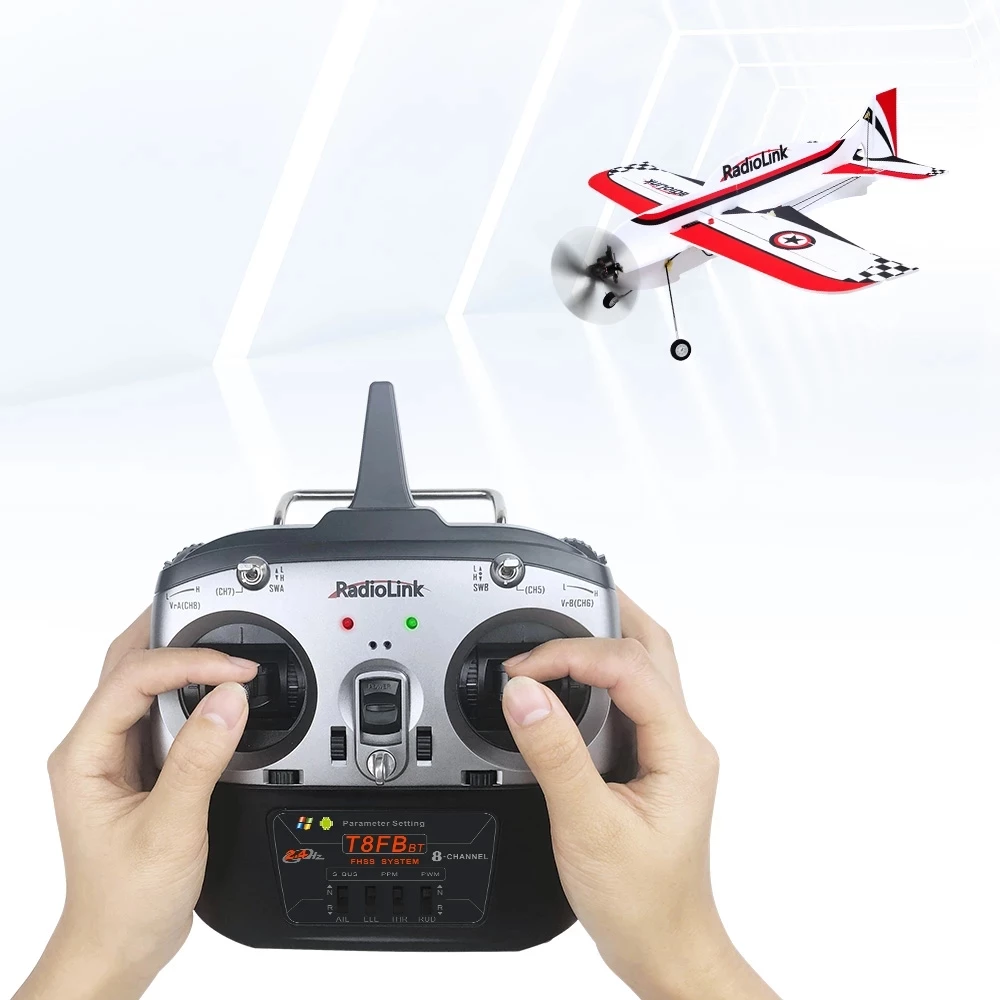

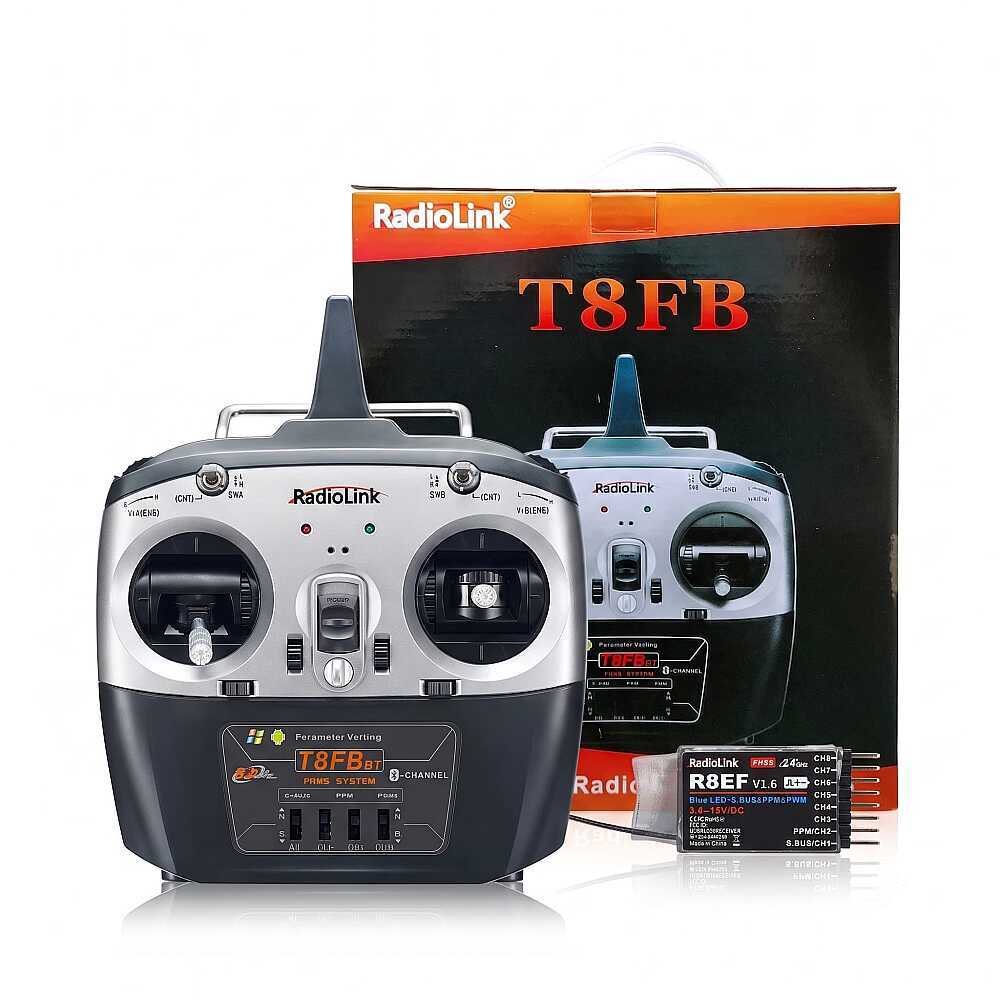

Radiolink T8FB(BT)+R8EF 2.4GHz 8CH Transmitter&Receiver MOD 2

Radiolink T8FB(BT)+R8EF 2.4GHz 8CH Transmitter&Receiver MODE 2

The Radiolink T8FB(BT)+R8EF offers a superior transmission rate, enhanced interference rejection and safe full range capability. The product is equipped with the FHSS frequency spread spectrum protocol. Perfect for R/C disciplines through airplanes, boats, cars and even trucks.

we can say that it is a transmitter that does not collect dust. Thanks to its Bluetooth feature, it also provides users with low power consumption and ease of use!

Radiolink T8FB(BT)+R8EF Technical Specifications:

• Transmitter size: 173 x 102 x 206mm
• Receiver size: 48.5 x 21 x 11 mm
• Transmitter power: less than 100mW (20dBm).
• Weight:47kg
• Speed rate: 38kbps
• Frequency: 2.4GHz ISM band
• Modulation mode: GFSK
• Spread spectrum: FHSS
• Neighbor channel rejection: more than 36dBm
• Sensitivity: -104dBm
• PWM output: 1.0 - 2.0ms
• Resolution: 2048,
• Working current: less than 80mA; less than 30mA
• Channel bandwidth: 400KHz
• Cycle: 15ms
• Operating voltage: 4.8 - 18V ; 4.6 - 10V
• Control distance: near 500m, 1000m in air (depending on environment)
