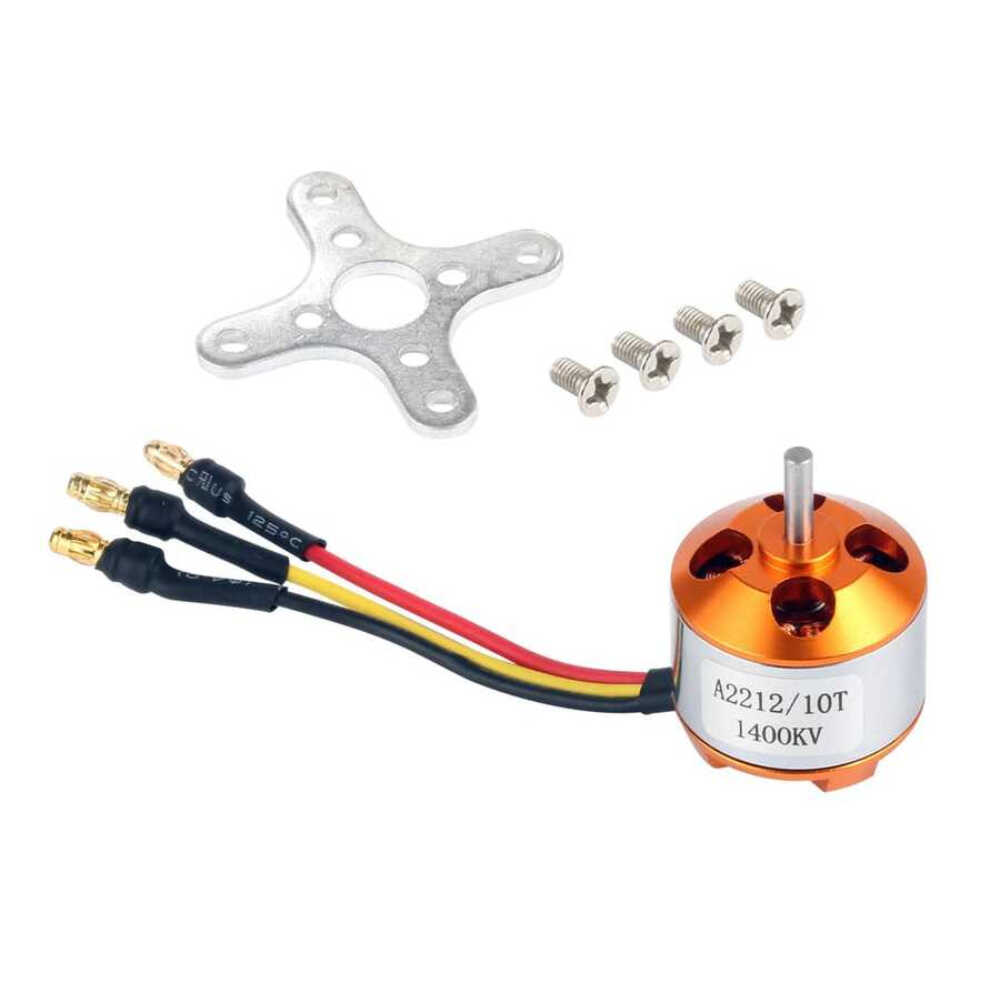

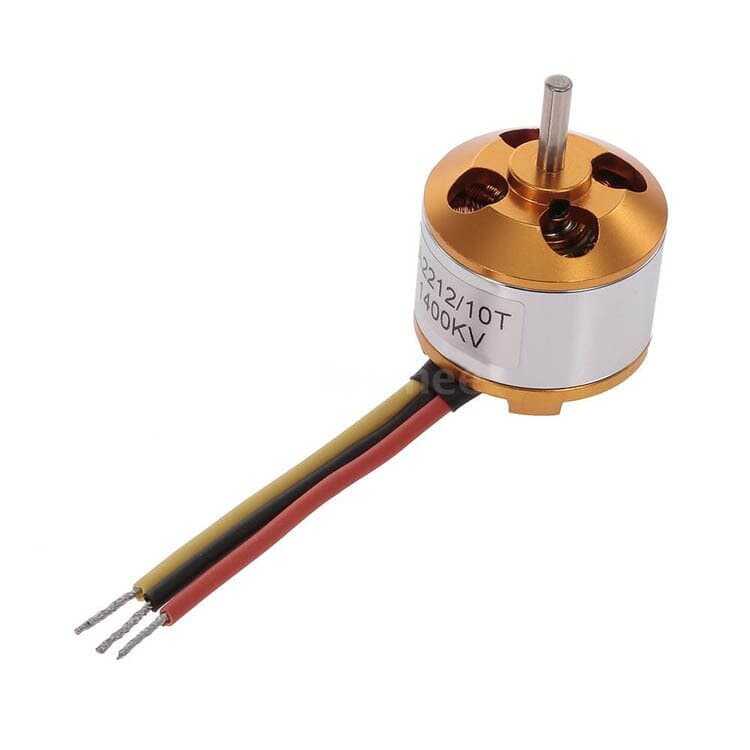

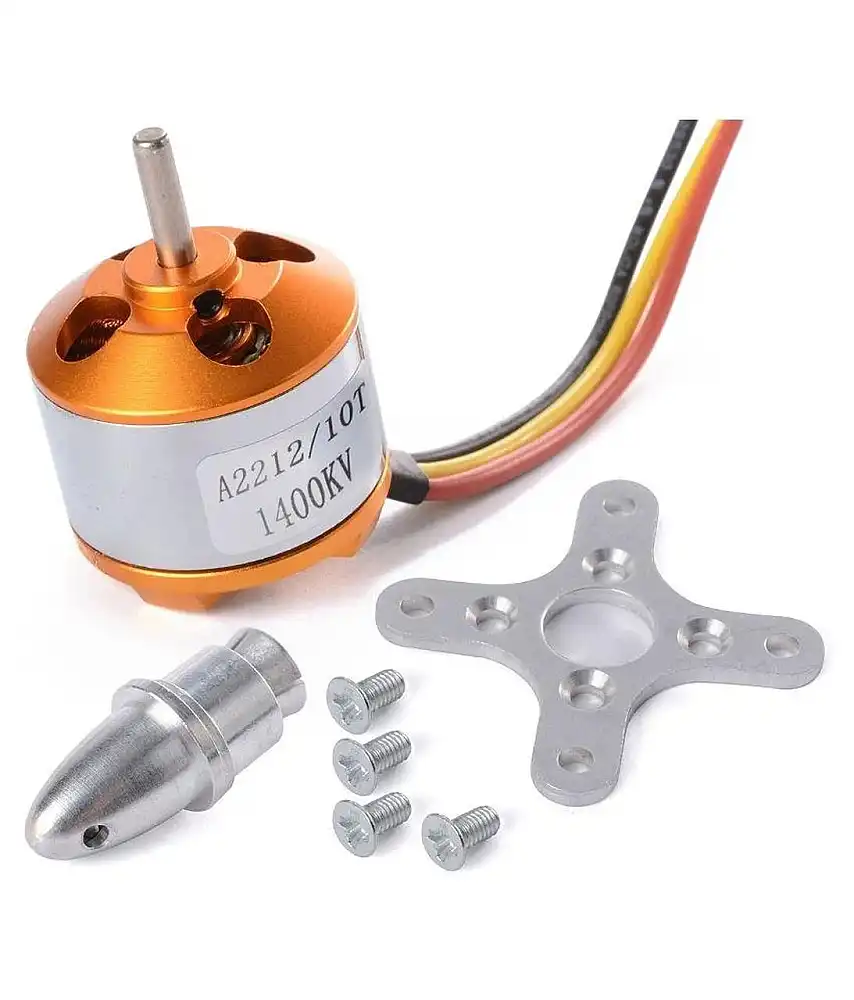

A2212 1400KV Brushless Motor

A2212 1400KV Brushless Motor

A brushless motor, as the name suggests, does not have brushes. Since there is no brush, the input power is supplied directly to the stator of the motor. The rotor is made of permanent magnet and the windings surround the rotor. By creating a magnetic field that pushes and attracts the magnets, the rotor is rotated. Since there are no brushes in brushless motors, there is no noise and spark formation. This helps to increase the efficiency as well as the life of the motor. Brushless motors have become common in many applications due to their long life and reliability. Brushless motors are also used in new generation electric vehicles. Brushless motors can be used for different applications and needs. A2212 1400KV Brushless Motor is compatible with 4-6-8 arm multicopter and quadcopter drones.

A2212 1400KV Brushless Motor Technical Specifications:

• Input Voltage: 2-3 Li-Po, Ion
• Battery Maximum: 12.6V
• Maximum Yield: 80%
• Maximum Efficiency Current: 4-10A
• Current Capacity: 12A/60s
• Number of Cells: 2-3
• Recommended Propeller: 2-cell 7x3.5, 3-cell 6x3
• Dimensions: 27.8x27mm
• Shaft Thickness: 3.17mm
