Sarhoş Teker Plastik 25.4 mm - 1 Inch (Metal Rulman Yataklı)

Ürün Kodu
:
18200
Marka / Menşei
:
Pololu
Stok Adedi
:
5
Fiyat
:
55,03 TL + KDV
KDV Dahil Fiyat
:
64,94 TL
Aynı Gün Kargo
Saat 15:00’a kadar yapılan alımlarda aynı gün kargo imkanı
Alışveriş Listeme Ekle
Bu ürünü listenize ekleyerek daha sonra inceleyebilirsiniz.
Yorum Ekle
Ürünle İlgili Öne Çıkan Kampanyalar

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Ürün Özellikleri
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Tavsiye Et
  • Resimler
  • Soru Sor

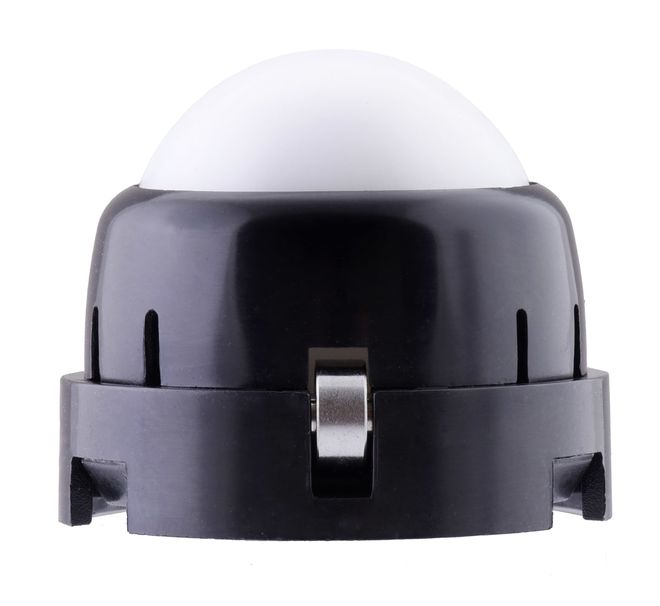

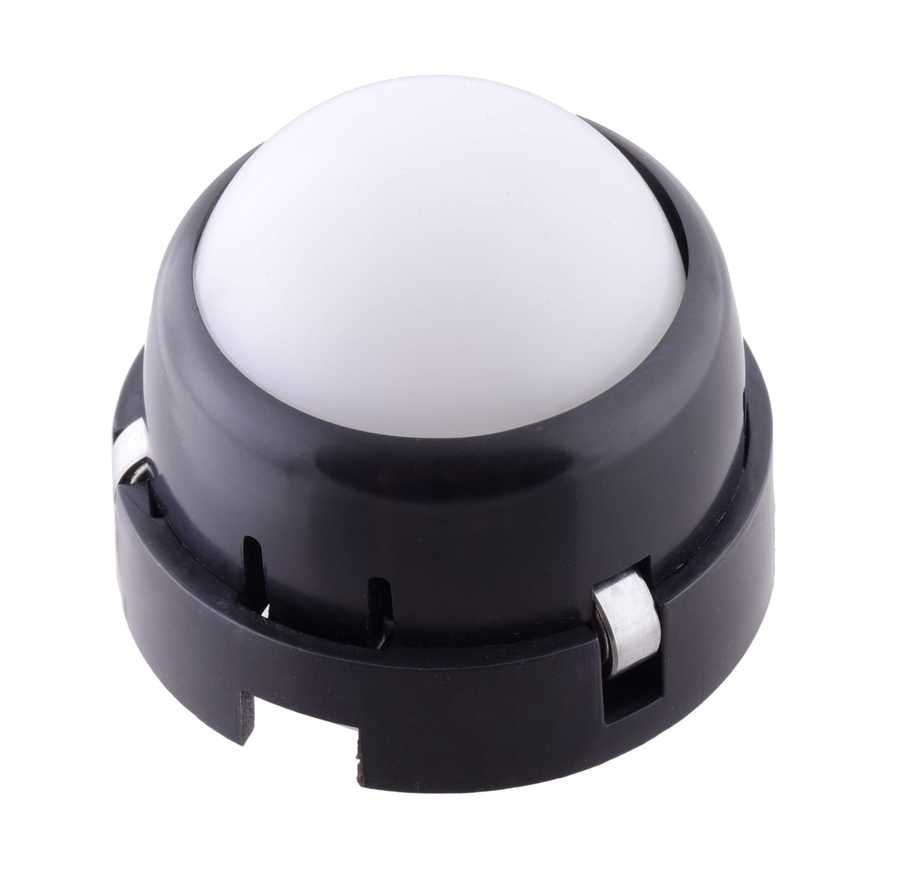

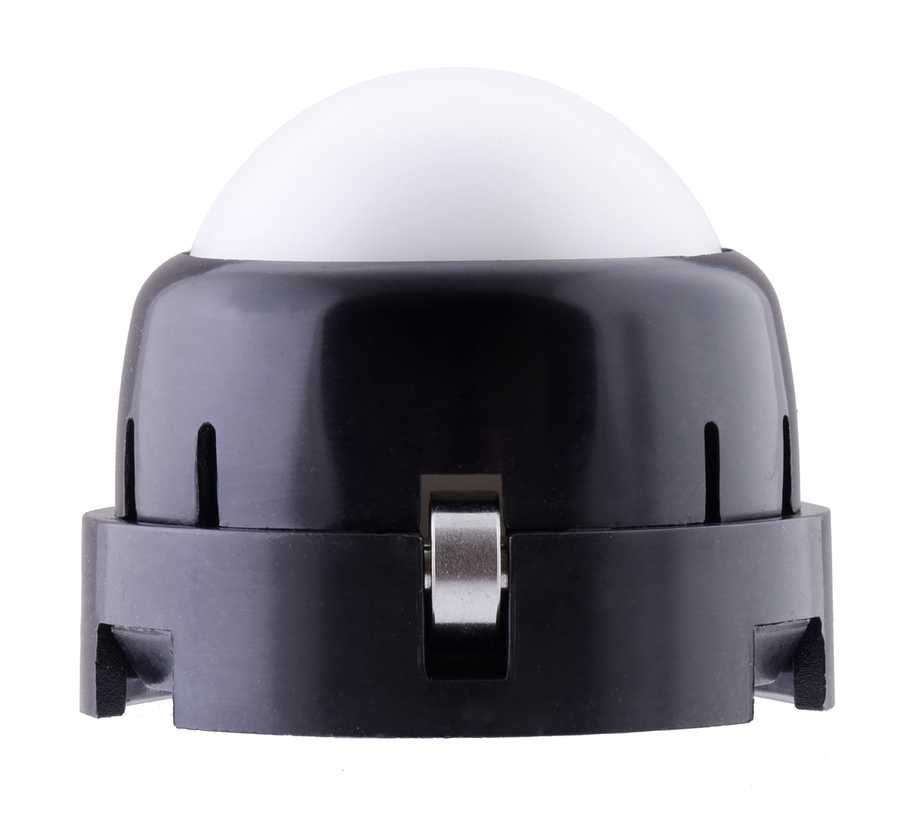

  • This ball caster uses a 1″ diameter plastic ball and has an overall height of 1.1″ (29 mm). The two-part housing snaps together to securely enclose the ball and three ball bearings that minimize friction between the ball and the ABS housing. The base piece of the housing has holes for three #4 or M3 screws (not included).

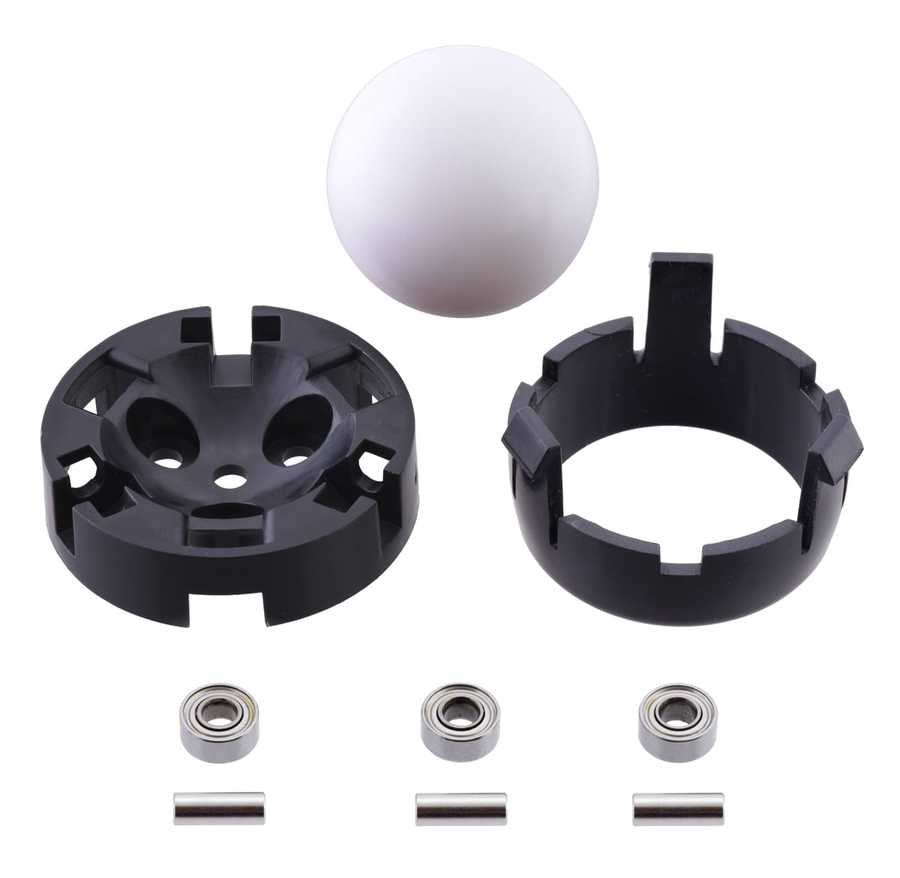

    This ball caster kit includes a two-part black ABS housing, a 1″ diameter POM (also know as acetal or by the brand name Delrin) plastic ball, three 3×7×3mm ball bearings, and three dowel pins used to hold the ball bearings. When assembled, the ball caster is capable of rolling in any direction with low friction, making it suitable for use as a third contact point for wheeled, differential-drive robots weighing up to around ten pounds.

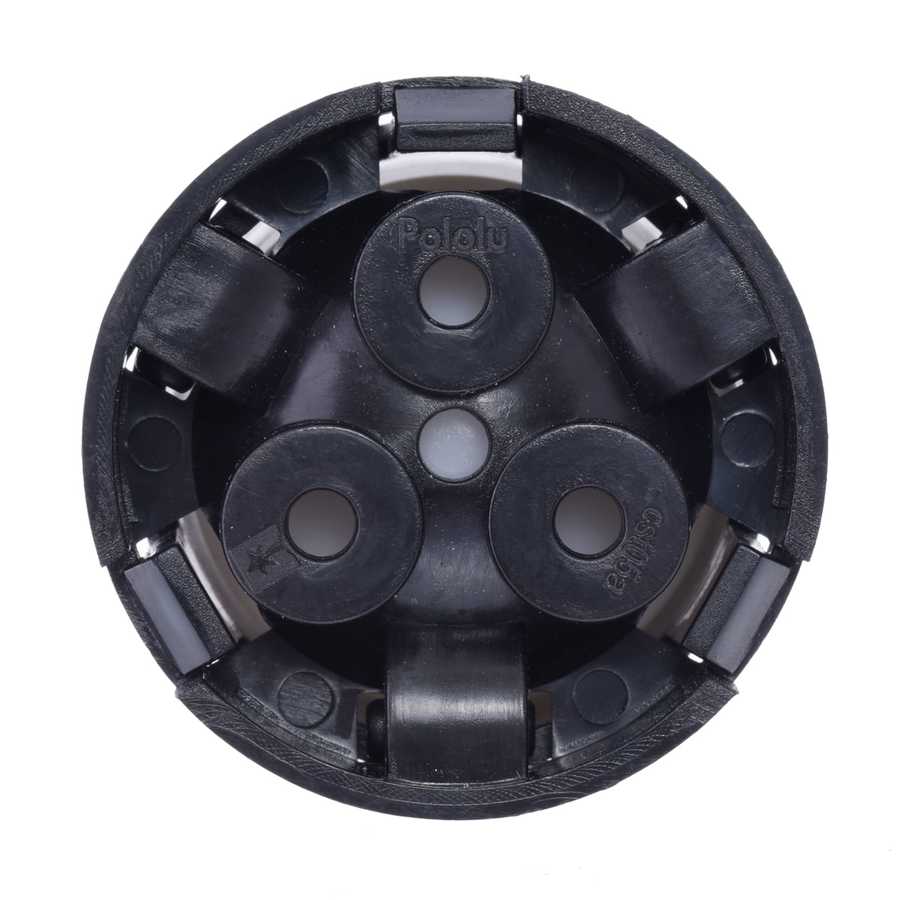

    The base piece of the housing has holes for three #4 or M3 mounting screws (not included) and slots for ball bearings. The second part of the housing snaps into the base piece to secure the ball and ball bearings. The assembled ball caster has an overall height of 1.1″ (29 mm).


    Dimensions

    This dimension diagram is also available as a downloadable PDF (134k pdf).

    Comparison of Pololu ball casters


    Pololu ball casters with plastic and metal balls. Ball diameter from left to right: 1″, 3/4″, 1/2″, and 3/8″.

    Pololu ball caster
    ball diameter
    height with
    no spacers
    distance
    between
    screw holes
    weight with
    no spacers
    or screws
    3/8″ plastic ball
    0.40″0.53″0.03 oz
    3/8″ metal ball
    0.40″0.53″0.14 oz
    1/2″ plastic ball
    0.53″0.58″0.07 oz
    1/2″ metal ball
    0.53″0.58″0.32 oz
    3/4″ plastic ball
    0.88″0.24″0.25 oz
    3/4″ metal ball
    0.82″0.61″1.05 oz
    1″ plastic ball, ball bearings
    1.10″0.48″0.65 oz
    1″ plastic ball, plastic rollers
    1.10″0.48″0.58 oz
    1″ plastic ball (old version)
    1.10″0.70″0.36 oz

    Dimensions

    Ball diameter:1 in
    Weight:18.5 g

    General specifications

    Ball material:plastic
