micro:bit 16 Kanal Servo Motor Sürücü Kartı

Ürün Kodu
:
18369
Marka / Menşei
:
WaveShare
Stok Adedi
:
9
Fiyat
:
79,21 TL + KDV
KDV Dahil Fiyat
:
93,47 TL
Aynı Gün Kargo
Saat 15:00’a kadar yapılan alımlarda aynı gün kargo imkanı
Alışveriş Listeme Ekle
Bu ürünü listenize ekleyerek daha sonra inceleyebilirsiniz.
Yorum Ekle
Ürünle İlgili Öne Çıkan Kampanyalar

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Ürün Özellikleri
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Tavsiye Et
  • Resimler
  • Öneri Kutusu

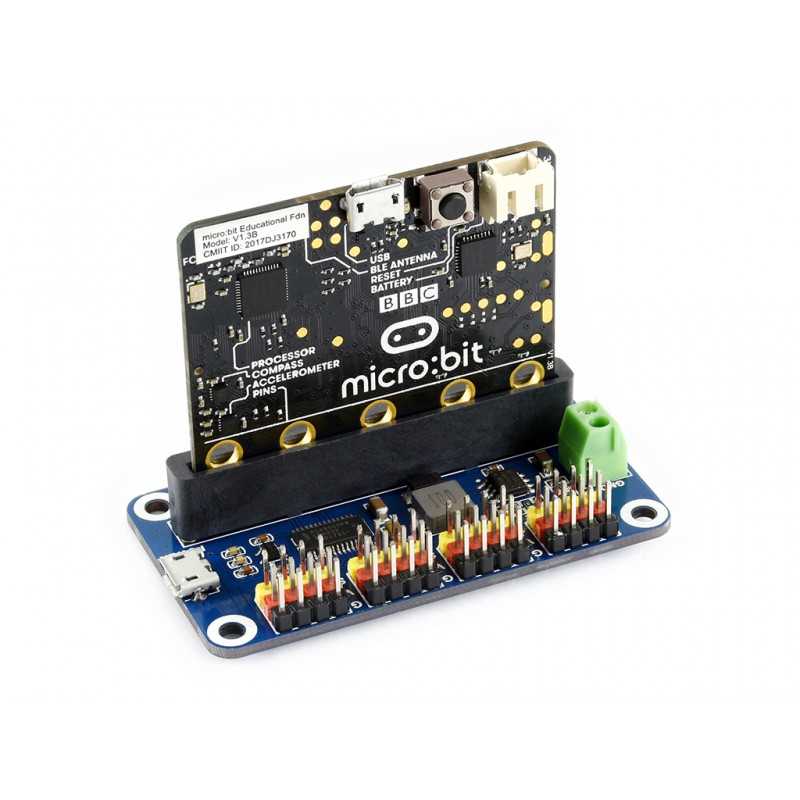

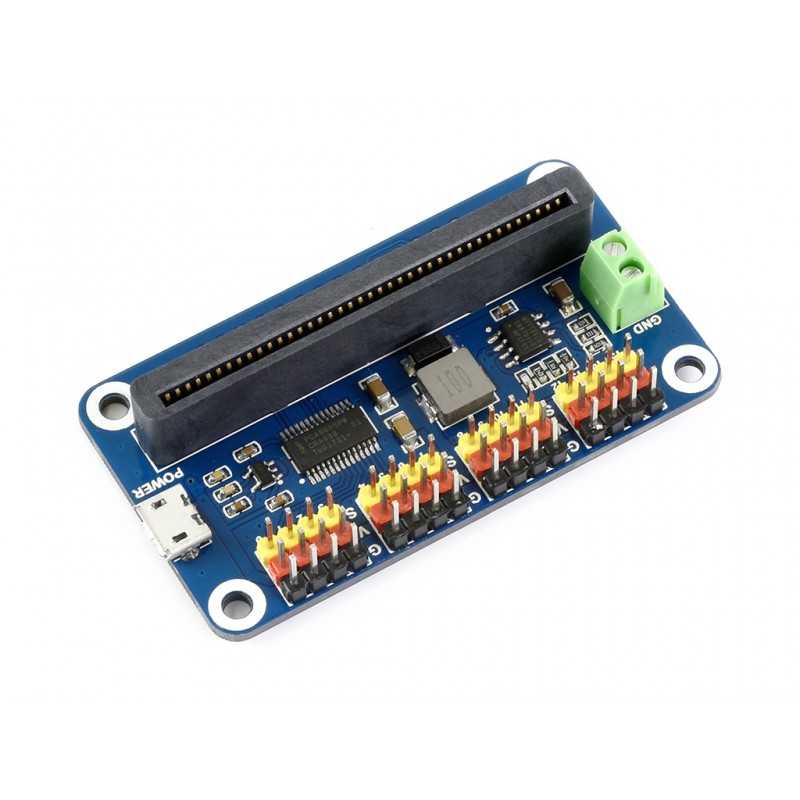

  • Did you encounter the PWM output limit of micro:bit when trying to make a robotic arm or whatever robot which requires lots of servo? We quite understand that situation, even we got an excellent solution. This handy servo driver breakout would be your ideal choice.

    Features:

    • micro:bit edge connector, directly pluggable
    • I2C controlled, using only 2 pins
    • Up to 16-Channel servo/PWM outputs, 12-bit resolution for each channel (4096 scales)
    • Integrates 5V regulator, up to 3A output current, can be powered from battery through VIN terminal
    • Standard servo interface, supports common used servo such as SG90, MG90S, MG996R, etc.
    • Reserved I2C control pins, allows to work with other control boards
    • Comes with development resources and manual (micro:bit graphical examples like Bluetooth/2.4G wir eless remote control)

    Specifications:

    • Power supply: 5V (POWER connector) OR 6V~12V (VIN terminal)
    • Servo voltage: 5V
    • Logic voltage: 3.3V
    • Driver: PCA9685
    • Control interface: I2C
    • Dimension: 65mm x 36mm
    • Mounting hole size: 3.0mm

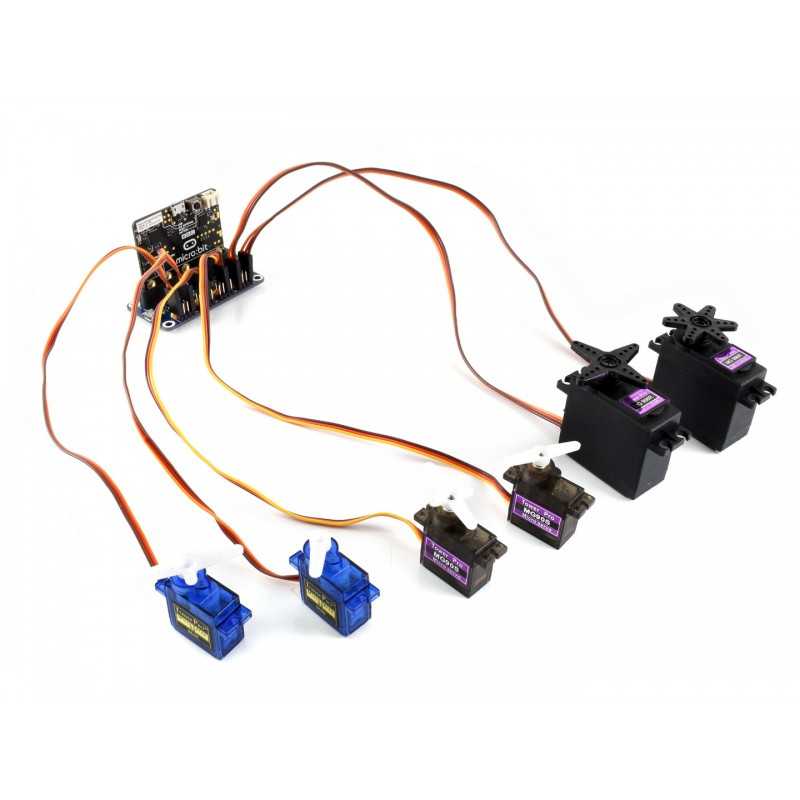

    Servo Driver for micro:bit demo

    Dimensions:

    Servo Driver for micro:bit dimensions

    Documents:
