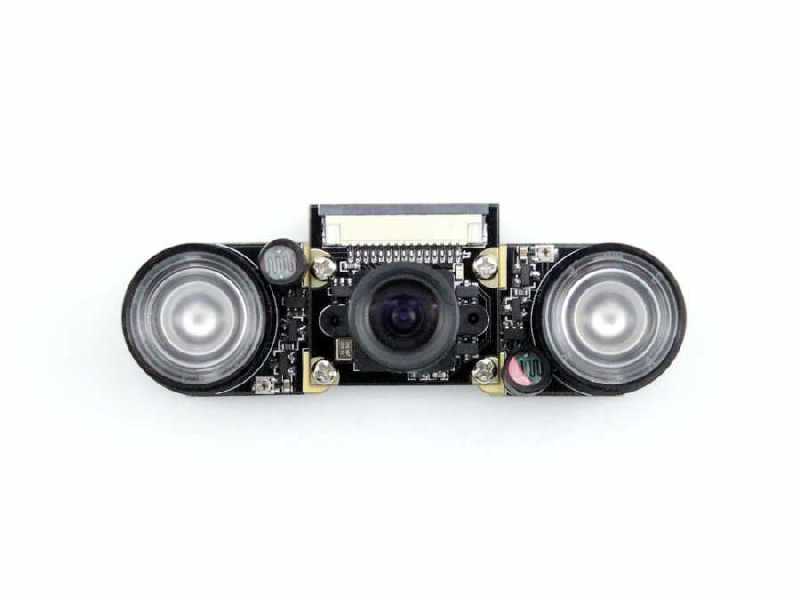

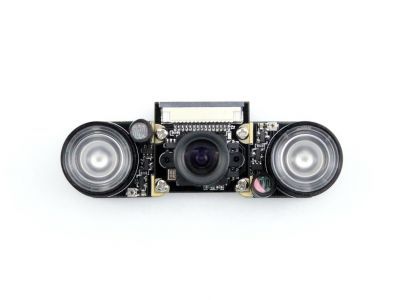

Through Raspberry Pi Camera + Infrared LED Modul, you can add night vision property to your Raspberry Pi 2/B+/A+/B Board. Through 2 3W Infrared Led Modul which is sent with Raspberry Pi, you can add night vision property to your Camera Modul and you can shoot night photos and videos. Because of the fact that Camera Modul is compatible with NOIR camera, which is produced by Raspberry Pi, you can use all implementions, which is made for NOIR, with this camera too.
Infrared Led Moduls work completely automatically. If level of ambient light becomes lower than reference value that you configurate with potentiometer which is on moduls, leds become active automatically and normal photo mod turns into night photo mod.
Package Contents:
- RPi Camera x 1
- Infrared Led Modul x 2
- 15-pin FFC Cable x 1

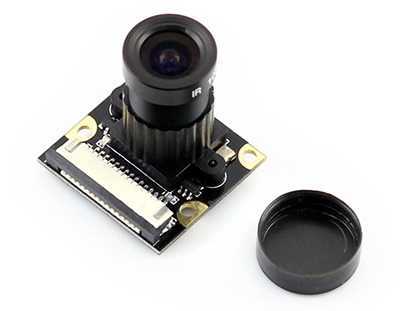

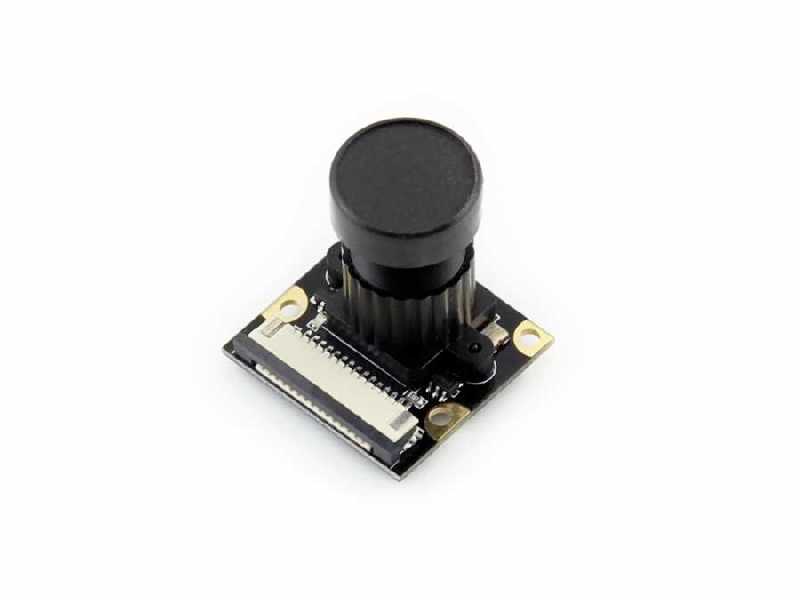

Features of Camera:
- Compatible with all Raspberry Pi Models
- 5 megapixel OV5647 sensor
- CCD measure: 1/4 inch
- Aperture(F): 1.8
- Focal: 3.6mm
- Diagonal: 75.7 derece
- Best resolution of Sensor: 1080p
- Dimensions: 25mm x 24mm

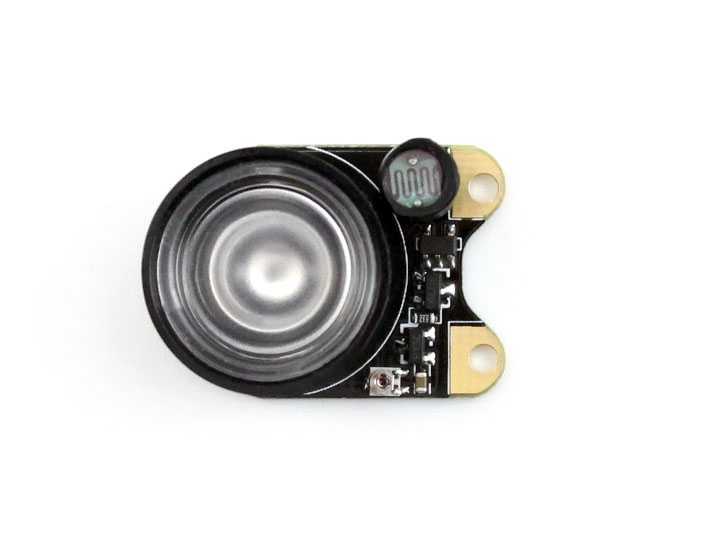

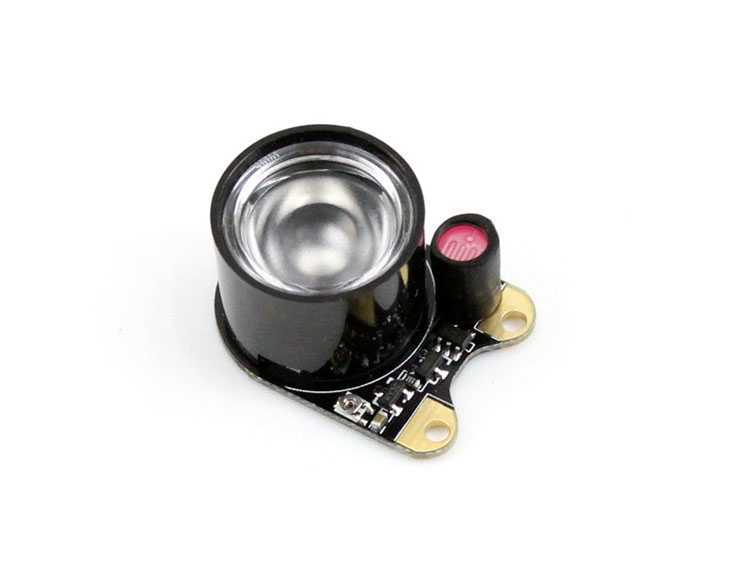

Features of Infrared Led Modul:
- 3W high-powered infrared led
- Onboard photoresistor ambient light detector
- Internal potentiometer( for configuration of ambient light reference value)
Usage:
- Led Modul Camera can be immobilized with screws. Led moduls get the power via screws.
- Reference value can be configurated with potentiometer.
Note:
- Becasue of the fact that 2 led moduls need 6W power totally, using 2A and over adaptor with Raspberry Pi is recommended. Also Raspberry Pi can be caused to overheat on regulator. So, using coller or fan is recommended.
- Ideal scaning distance: 3 meters
